Solid Vulcanized Bolt/Down Base

TEKNO-HYGIeNIC

A stainless steel pipe with a handle on a white background.

• Levelling system designed for the dairy, pharmaceutical and food industry, in compliance with the

strictest hygienic standards, made in accordance with 3-A regulations.

Ø 100/120

A close up of a metal object with a blue ring around it on a white background.

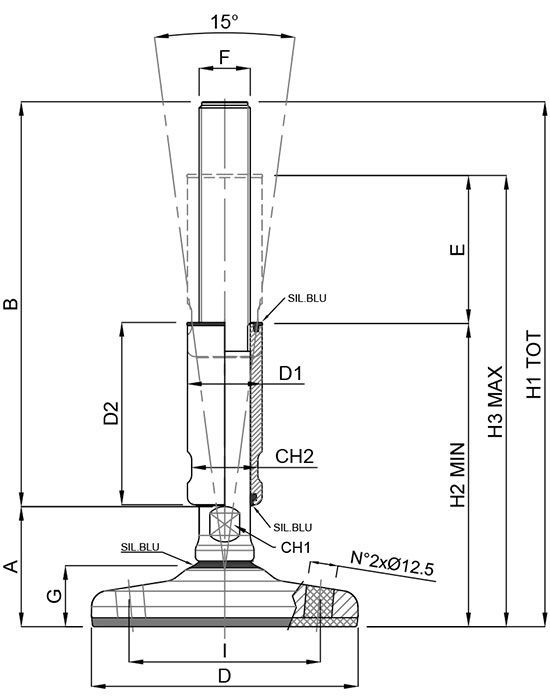

A black and white drawing of a metal object with measurements.
CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BUSHING Ø (D1) TOTAL HEIGHT MIN HEIGHT (H2) MAX HEIGHT (H3) HOLES DISTANCE (I) REGULATION (SW) WEIGHT gr LOAD (Newton)
27361F/3A M16x2 53 140,00 100 24x60 193,00 114 159 70 13/20 1035 40000
27363F/3A M16x2 53 190,00 100 24x85 243,00 139 209 70 13/20 1149 40000
27365F/3A M20x2,5 53 140,00 100 30x60 193,00 114 159 70 17/26 1227 45000
27367F/3A M20x2,5 53 190,00 100 30x85 243,00 139 209 70 17/26 1404 45000
27369F/3A M24x3 53 140,00 100 35x60 193,00 114 159 70 20/30 1430 55000
27371F/3A M24x3 53 190,00 100 35x85 243,00 139 209 70 20/30 1685 55000
27373F/3A M30x3,5 53 135,00 100 42x60 188,00 114 154 70 26/36 1775 60000
27375F/3A M30x3,5 53 185,00 100 42x85 238,00 139 204 70 26/36 2148 60000
27381F/3A M16x2 55 140,00 120 24x60 195,00 116 161 86 13/20 1571 40000
27383F/3A M16x2 55 190,00 120 24x85 245,00 141 211 86 13/20 1700 40000
27385F/3A M20x2,5 55 140,00 120 30x60 195,00 116 161 86 17/26 1768 45000
27387F/3A M20x2,5 55 190,00 120 30x85 245,00 141 211 86 17/26 1949 45000
27389F/3A M24x3 55 140,00 120 35x60 195,00 116 161 86 20/30 1973 60000
27391F/3A M24x3 55 190,00 120 35x85 245,00 141 211 86 20/30 2228 60000
27393F/3A M30x3,5 55 135,00 120 42x60 190,00 116 156 86 26/36 2321 80000
27395F/3A M30x3,5 55 185,00 120 42x85 240,00 141 206 86 26/36 2690 80000
27397F/3A M30x3,5 55 235,00 120 42x85 290,00 191 256 86 26/36 2965 80000
27399F/3A M36x4 55 135,00 120 50x60 190,00 116 156 86 32/45 2779 80000
27401F/3A M36x4 55 185,00 120 50x85 240,00 141 206 86 32/45 3324 80000
27403F/3A M36x4 55 235,00 120 50x85 290,00 191 256 86 32/45 3726 80000
PDF

Ø 150

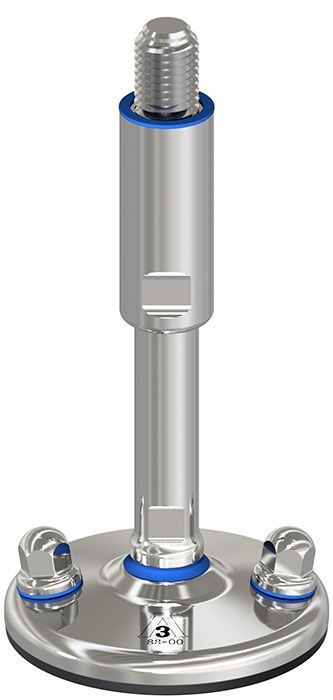

A stainless steel screw with a blue ring around it on a white background.
A black and white drawing of a metal object with measurements.
CODE SIZE (F) FLOOR DISTANCE (A) STEMLENGTH (B) BASE SIZE (D) BUSHING Ø (D1) TOTAL HEIGHT HOLES DISTANCE (I) MIN HEIGHT (H2) MAX HEIGHT (H3) REGULATION (SW) WEIGHT gr LOAD (Newton)
27411F/3A M20x2,5 59 140,00 150 30x60 199,00 110 120 165 17/26 2629 45000
27413F/3A M20x2,5 59 190,00 150 30x85 249,00 110 145 215 17/26 2807 45000
27415F/3A M24x3 59 140,00 150 35x60 199,00 110 120 165 20/30 2835 60000
27417F/3A M24x3 59 190,00 150 35x85 249,00 110 145 215 20/30 3089 60000
27419F/3A M30x3,5 59 135,00 150 42x60 194,00 110 120 160 26/36 3183 80000
27421F/3A M30x3,5 59 185,00 150 42x85 244,00 110 145 210 26/36 3551 80000
27423F/3A M30x3,5 59 235,00 150 42x85 294,00 110 195 260 26/36 3828 80000
27425F/3A M36x4 59 135,00 150 50x60 194,00 110 120 160 32/45 3643 80000
27427F/3A M36x4 59 185,00 150 50x85 244,00 110 145 210 32/45 4185 80000
27429F/3A M36x4 59 235,00 150 50x85 294,00 110 195 260 32/45 4584 80000
PDF
