Vulcanized Base
TEKNO-HYgienIC
• Levelling system designed for the dairy, pharmaceutical and food industry, in compliance with the
strictest hygienic standards, made in accordance with 3-A regulations.
Ø 120 BLACK NBR RUBBER

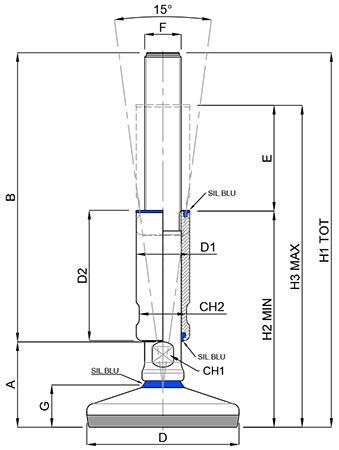

| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27100/3A | M12x1,75 | 48 | 140,00 | 50 | 24x60 | 188,00 | 109 | 154 | 13/20 | 392 | 5000 |
| 27102/3A | M12x1,75 | 48 | 147,00 | 50 | 24x70 | 195,00 | 120 | 175 | 13/20 | 423 | 5000 |
| 27104/3A | M12x1,75 | 48 | 190,00 | 50 | 24x85 | 238,00 | 134 | 204 | 13/20 | 494 | 5000 |
| 27106/3A | M16x2 | 48 | 140,00 | 50 | 24x60 | 188,00 | 109 | 154 | 13/20 | 430 | 5000 |
| 27108/3A | M16x2 | 48 | 190,00 | 50 | 24x85 | 238,00 | 134 | 204 | 13/20 | 556 | 5000 |
| 27110/3A | M20x2,5 | 48 | 140,00 | 50 | 30x60 | 188,00 | 109 | 154 | 17/26 | 627 | 5000 |
| 27112/3A | M20x2,5 | 48 | 190,00 | 50 | 30x85 | 238,00 | 134 | 204 | 17/26 | 812 | 5000 |
| 27120/3A | M12x1,75 | 51 | 140,00 | 60 | 24x60 | 191,00 | 112 | 157 | 13/20 | 435 | 10000 |
| 27122/3A | M12x1,75 | 51 | 190,00 | 60 | 24x85 | 241,00 | 137 | 207 | 13/20 | 535 | 10000 |
| 27124/3A | M16x2 | 51 | 140,00 | 60 | 24x60 | 191,00 | 112 | 157 | 13/20 | 478 | 10000 |
| 27126/3A | M16x2 | 51 | 190,00 | 60 | 24x85 | 241,00 | 137 | 207 | 13/20 | 597 | 10000 |
| 27128/3A | M20x2,5 | 51 | 140,00 | 60 | 30x60 | 191,00 | 112 | 157 | 17/26 | 671 | 10000 |
| 27130/3A | M20x2,5 | 51 | 190,00 | 60 | 30x85 | 241,00 | 137 | 207 | 17/26 | 855 | 10000 |
Ø 120 BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27140/3A | M16x2 | 53 | 140,00 | 80 | 24x60 | 193,00 | 114 | 159 | 13/20 | 591 | 20000 |
| 27142/3A | M16x2 | 53 | 190,00 | 80 | 24x85 | 243,00 | 139 | 209 | 13/20 | 703 | 20000 |
| 27144/3A | M20x2,5 | 53 | 140,00 | 80 | 30x60 | 193,00 | 114 | 159 | 17/26 | 774 | 20000 |
| 27146/3A | M20x2,5 | 53 | 142,00 | 80 | 30x70 | 195,00 | 123 | 178 | 17/26 | 806 | 20000 |
| 27148/3A | M20x2,5 | 53 | 190,00 | 80 | 30x85 | 243,00 | 139 | 209 | 17/26 | 961 | 20000 |
| 27150/3A | M24x3 | 53 | 140,00 | 80 | 35x60 | 193,00 | 114 | 159 | 20/30 | 975 | 20000 |
| 27152/3A | M24x3 | 53 | 190,00 | 80 | 35x85 | 243,00 | 139 | 209 | 20/30 | 1220 | 20000 |
| 27160/3A | M16x2 | 56 | 140,00 | 100 | 24x60 | 196,00 | 117 | 162 | 13/20 | 730 | 25000 |
| 27162/3A | M16x2 | 56 | 190,00 | 100 | 24x85 | 246,00 | 142 | 212 | 13/20 | 853 | 25000 |
| 27164/3A | M20x2,5 | 56 | 140,00 | 100 | 30x60 | 196,00 | 117 | 162 | 17/26 | 927 | 25000 |
| 27166/3A | M20x2,5 | 56 | 190,00 | 100 | 30x85 | 246,00 | 142 | 212 | 17/26 | 1111 | 25000 |
| 27168/3A | M24x3 | 56 | 140,00 | 100 | 35x60 | 196,00 | 117 | 162 | 20/30 | 1125 | 25000 |
| 27170/3A | M24x3 | 56 | 190,00 | 100 | 35x85 | 246,00 | 142 | 212 | 20/30 | 1371 | 25000 |
| 27172/3A | M30x3,5 | 56 | 135,00 | 100 | 42x60 | 191,00 | 117 | 162 | 26/36 | 1461 | 25000 |
| 27174/3A | M30x3,5 | 56 | 185,00 | 100 | 42x85 | 241,00 | 142 | 207 | 26/36 | 1840 | 25000 |
Ø 120/150 BLACK NBR RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27176/3A | M12x1,75 | 60 | 140,00 | 120 | 24x60 | 200,00 | 121 | 166 | 13/20 | 10000 | |
| 27178/3A | M12x1,75 | 60 | 190,00 | 120 | 24x85 | 250,00 | 146 | 216 | 13/20 | 10000 | |
| 27180/3A | M16x2 | 60 | 140,00 | 120 | 24x60 | 200,00 | 121 | 166 | 13/20 | 30000 | |
| 27182/3A | M16x2 | 60 | 190,00 | 120 | 24x85 | 250,00 | 146 | 216 | 13/20 | 30000 | |
| 27184/3A | M20x2,5 | 60 | 140,00 | 120 | 30x60 | 200,00 | 121 | 166 | 17/26 | 30000 | |
| 27186/3A | M20x2,5 | 60 | 190,00 | 120 | 30x85 | 250,00 | 146 | 216 | 17/26 | 30000 | |
| 27188/3A | M24x3 | 60 | 140,00 | 120 | 35x60 | 200,00 | 121 | 166 | 20/30 | 30000 | |
| 27190/3A | M24x3 | 60 | 190,00 | 120 | 35x85 | 250,00 | 146 | 216 | 20/30 | 30000 | |
| 27192/3A | M30x3,5 | 60 | 135,00 | 120 | 42x60 | 195,00 | 121 | 161 | 26/36 | 30000 | |
| 27194/3A | M30x3,5 | 60 | 185,00 | 120 | 42x85 | 245,00 | 146 | 211 | 26/36 | 30000 | |
| 27196/3A | M30x3,5 | 60 | 235,00 | 120 | 42x85 | 295,00 | 196 | 261 | 26/36 | 30000 | |
| 27198/3A | M36x4 | 60 | 135,00 | 120 | 45x60 | 195,00 | 121 | 161 | 32/45 | 30000 | |
| 27200/3A | M36x4 | 60 | 185,00 | 120 | 45x85 | 245,00 | 146 | 211 | 32/45 | 30000 | |
| 27202/3A | M36x4 | 60 | 235,00 | 120 | 45x85 | 295,00 | 196 | 261 | 32/45 | 30000 | |
| 27210/3A | M20x2,5 | 63 | 140,00 | 150 | 30x60 | 203,00 | 124 | 169 | 17 | 35000 | |
| 27212/3A | M20x2,5 | 63 | 190,00 | 150 | 30x85 | 253,00 | 149 | 219 | 17 | 35000 | |
| 27214/3A | M24x3 | 63 | 140,00 | 150 | 35x60 | 203,00 | 124 | 169 | 20 | 35000 | |
| 27216/3A | M24x3 | 63 | 190,00 | 150 | 35x85 | 253,00 | 149 | 219 | 20 | 35000 | |
| 27218/3A | M30x3,5 | 63 | 135,00 | 150 | 42x60 | 198,00 | 124 | 164 | 26 | 35000 | |
| 27220/3A | M30x3,5 | 63 | 185,00 | 150 | 42x85 | 248,00 | 149 | 214 | 26 | 35000 | |
| 27222/3A | M30x3,5 | 63 | 235,00 | 150 | 42x85 | 298,00 | 199 | 264 | 26 | 35000 | |
| 27224/3A | M36x4 | 63 | 135,00 | 150 | 50x60 | 198,00 | 124 | 164 | 32 | 35000 | |
| 27226/3A | M36x4 | 63 | 185,00 | 150 | 50x85 | 248,00 | 149 | 214 | 32 | 35000 | |
| 27228/3A | M36x4 | 63 | 235,00 | 150 | 50x85 | 298,00 | 199 | 264 | 32 | 35000 |
Ø 50/60 BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27600/3A | M12x1,75 | 48 | 140,00 | 50 | 24x60 | 188,00 | 109 | 154 | 13 | 392 | 5000 |
| 27602/3A | M12x1,75 | 48 | 147,00 | 50 | 24x70 | 195,00 | 120 | 175 | 13 | 423 | 5000 |
| 27604/3A | M12x1,75 | 48 | 190,00 | 50 | 24x85 | 238,00 | 134 | 204 | 13 | 494 | 5000 |
| 27606/3A | M16x2 | 48 | 140,00 | 50 | 24x60 | 188,00 | 109 | 154 | 13 | 430 | 5000 |
| 27608/3A | M16x2 | 48 | 190,00 | 50 | 24x85 | 238,00 | 134 | 204 | 13 | 556 | 5000 |
| 27610/3A | M20x2,5 | 48 | 140,00 | 50 | 30x60 | 188,00 | 109 | 154 | 17 | 627 | 5000 |
| 27612/3A | M20x2,5 | 48 | 190,00 | 50 | 30x85 | 238,00 | 134 | 204 | 17 | 812 | 5000 |
| 27620/3A | M12x1,75 | 51 | 140,00 | 60 | 24x60 | 191,00 | 112 | 157 | 13 | 435 | 10000 |
| 27622/3A | M12x1,75 | 51 | 190,00 | 60 | 24x85 | 241,00 | 137 | 207 | 13 | 535 | 10000 |
| 27624/3A | M16x2 | 51 | 140,00 | 60 | 24x60 | 191,00 | 112 | 157 | 13 | 478 | 10000 |
| 27626/3A | M16x2 | 51 | 190,00 | 60 | 24x85 | 241,00 | 137 | 207 | 13 | 597 | 10000 |
| 27628/3A | M20x2,5 | 51 | 140,00 | 60 | 30x60 | 191,00 | 112 | 157 | 17 | 671 | 10000 |
| 27630/3A | M20x2,5 | 51 | 190,00 | 60 | 30x85 | 241,00 | 137 | 207 | 17 | 855 | 10000 |
Ø 80/100 BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27640/3A | M16x2 | 53 | 140,00 | 80 | 24x60 | 193,00 | 114 | 159 | 13 | 591 | 20000 |
| 27642/3A | M16x2 | 53 | 190,00 | 80 | 24x85 | 243,00 | 139 | 209 | 13 | 703 | 20000 |
| 27644/3A | M20x2,5 | 53 | 140,00 | 80 | 30x60 | 193,00 | 114 | 159 | 17 | 774 | 20000 |
| 27646/3A | M20x2,5 | 53 | 142,00 | 80 | 30x70 | 195,00 | 123 | 178 | 17 | 806 | 20000 |
| 27648/3A | M20x2,5 | 53 | 190,00 | 80 | 30x85 | 243,00 | 139 | 209 | 17 | 961 | 20000 |
| 27650/3A | M24x3 | 53 | 140,00 | 80 | 35x60 | 193,00 | 114 | 159 | 20 | 975 | 20000 |
| 27652/3A | M24x3 | 53 | 190,00 | 80 | 35x85 | 243,00 | 139 | 209 | 20 | 1220 | 20000 |
| 27660/3A | M16x2 | 56 | 140,00 | 100 | 24x60 | 196,00 | 117 | 162 | 13 | 730 | 25000 |
| 27662/3A | M16x2 | 56 | 190,00 | 100 | 24x85 | 246,00 | 142 | 212 | 13 | 853 | 25000 |
| 27664/3A | M20x2,5 | 56 | 140,00 | 100 | 30x60 | 196,00 | 117 | 162 | 17 | 927 | 25000 |
| 27666/3A | M20x2,5 | 56 | 190,00 | 100 | 30x85 | 246,00 | 142 | 212 | 17 | 1111 | 25000 |
| 27668/3A | M24x3 | 56 | 140,00 | 100 | 35x60 | 196,00 | 117 | 162 | 20 | 1125 | 25000 |
| 27670/3A | M24x3 | 56 | 190,00 | 100 | 35x85 | 246,00 | 142 | 212 | 20 | 1371 | 25000 |
| 27672/3A | M30x3,5 | 56 | 135,00 | 100 | 42x60 | 191,00 | 117 | 162 | 26 | 1461 | 25000 |
| 27674/3A | M30x3,5 | 56 | 185,00 | 100 | 42x85 | 241,00 | 142 | 207 | 26 | 1840 | 25000 |
Ø 120/150 BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING � (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 27680/3A | M16x2 | 60 | 140,00 | 120 | 24x60 | 200,00 | 121 | 166 | 13 | 1054 | 30000 |
| 27682/3A | M16x2 | 60 | 190,00 | 120 | 24x85 | 250,00 | 146 | 216 | 13 | 1170 | 30000 |
| 27684/3A | M20x2,5 | 60 | 140,00 | 120 | 30x60 | 200,00 | 121 | 166 | 17 | 1238 | 30000 |
| 27686/3A | M20x2,5 | 60 | 190,00 | 120 | 30x85 | 250,00 | 146 | 216 | 17 | 1424 | 30000 |
| 27688/3A | M24x3 | 60 | 140,00 | 120 | 35x60 | 200,00 | 121 | 166 | 20 | 1441 | 30000 |
| 27690/3A | M24x3 | 60 | 190,00 | 120 | 35x85 | 250,00 | 146 | 216 | 20 | 1684 | 30000 |
| 27692/3A | M30x3,5 | 60 | 135,00 | 120 | 42x60 | 195,00 | 121 | 161 | 26 | 1777 | 30000 |
| 27694/3A | M30x3,5 | 60 | 185,00 | 120 | 42x85 | 245,00 | 146 | 211 | 26 | 2156 | 30000 |
| 27696/3A | M30x3,5 | 60 | 235,00 | 120 | 42x85 | 295,00 | 196 | 261 | 26 | 2431 | 30000 |
| 27698/3A | M36x4 | 60 | 135,00 | 120 | 45x60 | 195,00 | 121 | 161 | 32 | 2257 | 30000 |
| 27700/3A | M36x4 | 60 | 185,00 | 120 | 45x85 | 245,00 | 146 | 211 | 32 | 2797 | 30000 |
| 27702/3A | M36x4 | 60 | 235,00 | 120 | 45x85 | 295,00 | 196 | 261 | 32 | 3199 | 30000 |
| 27710/3A | M20x2,5 | 63 | 140,00 | 150 | 30x60 | 203,00 | 124 | 169 | 17 | 1687 | 35000 |
| 27712/3A | M20x2,5 | 63 | 190,00 | 150 | 30x85 | 253,00 | 149 | 219 | 17 | 1871 | 35000 |
| 27714/3A | M24x3 | 63 | 140,00 | 150 | 35x60 | 203,00 | 124 | 169 | 20 | 1885 | 35000 |
| 27716/3A | M24x3 | 63 | 190,00 | 150 | 35x85 | 253,00 | 149 | 219 | 20 | 2129 | 35000 |
| 27718/3A | M30x3,5 | 63 | 135,00 | 150 | 42x60 | 198,00 | 124 | 164 | 26 | 2225 | 35000 |
| 27720/3A | M30x3,5 | 63 | 185,00 | 150 | 42x85 | 248,00 | 149 | 214 | 26 | 2598 | 35000 |
| 27722/3A | M30x3,5 | 63 | 235,00 | 150 | 42x85 | 298,00 | 199 | 264 | 26 | 2886 | 35000 |
| 27724/3A | M36x4 | 63 | 135,00 | 150 | 50x60 | 198,00 | 124 | 164 | 32 | 2697 | 35000 |
| 27726/3A | M36x4 | 63 | 185,00 | 150 | 50x85 | 248,00 | 149 | 214 | 32 | 3243 | 35000 |
| 27728/3A | M36x4 | 63 | 235,00 | 150 | 50x85 | 298,00 | 199 | 264 | 32 | 3645 | 35000 |
