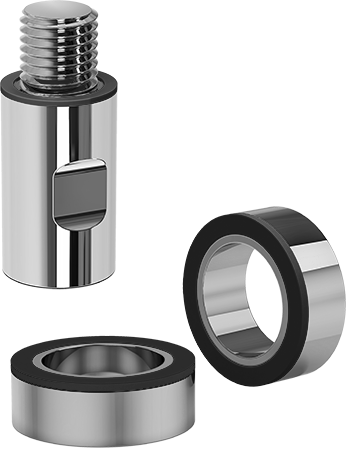

USDA Extension
INOX ACCESSORIES

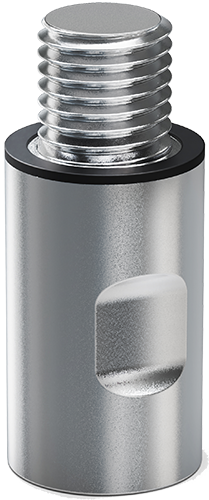

• Extension for USDA feet, ideal for dairy, pharmaceutical and food industry.
Material: stainless steel AISI 304, black nbr gasket.

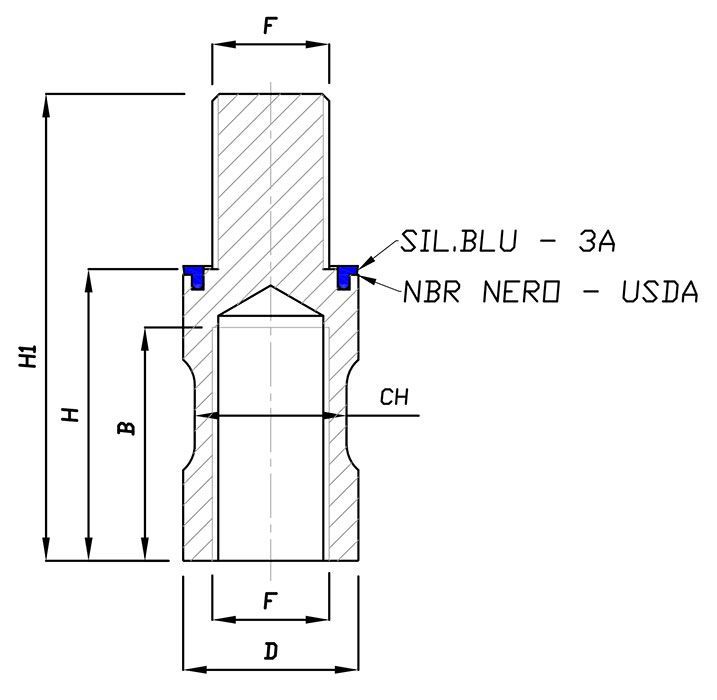

1/4 TURN LATCH – D28 T-SHAPED
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) |
|---|---|---|---|---|---|
| PROL2450/M12/USDA | M12x1,75 | 50,00 | 24 | 72,00 | M12x1,75 |
| PROL2450/USDA | M16x2 | 50,00 | 24 | 76,00 | M16x2 |
| PROL3050/USDA | M20x2,5 | 50,00 | 30 | 80,00 | M20x2,5 |
| PROL3550/USDA | M24x3 | 50,00 | 35 | 84,00 | M24x3 |
| PROL4250/USDA | M30x3,5 | 50,00 | 42 | 90,00 | M30x3,5 |

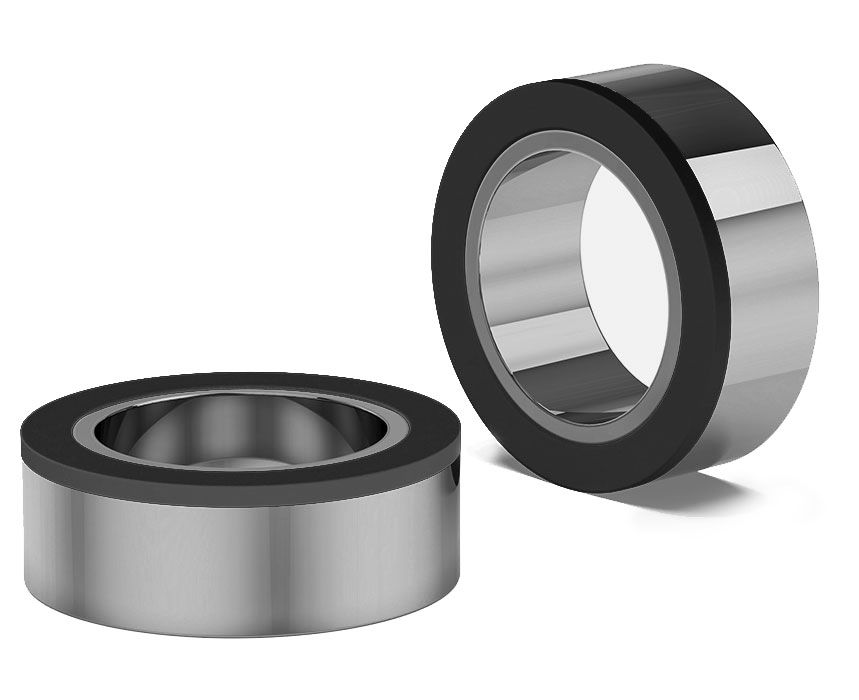

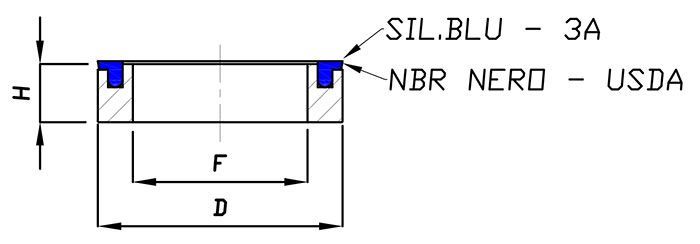

1/4 TURN LATCH – D28 L-SHAPED
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|
| PROL2410/F12/USDA | 12 | 10,00 | 24 | 10,00 |
| PROL2410/F16/USDA | 16 | 10,00 | 24 | 10,00 |
| PROL3010/F20/USDA | 20 | 10,00 | 30 | 10,00 |
| PROL3510/F24/USDA | 24 | 10,00 | 35 | 10,00 |
| PROL4210/F30/USDA | 30 | 10,00 | 42 | 10,00 |
