Tank Hygienic

TEKNO-HYGIeNIC

A stainless steel pipe with a handle on a white background.

• Levelling system designed for the dairy, pharmaceutical and food industry, in compliance with the

strictest hygienic standards, made in accordance with 3-A regulations.

LOADING CELL

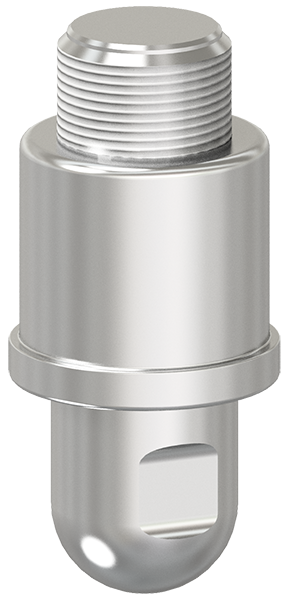

A close up of a metal object with a hole in the middle on a white background.

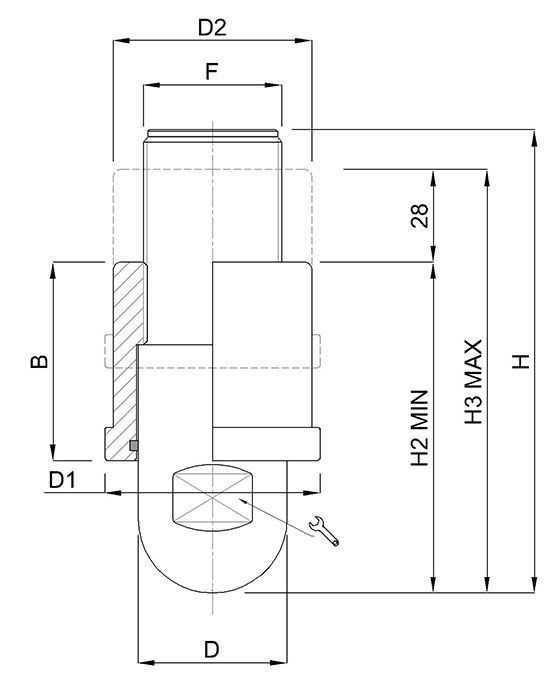

A black and white drawing of a metal object with measurements.
CODE SIZE (F) BUSHING Ø (D1) TOTAL HEIGHT MIN HEIGHT (H2) MAX HEIGHT (H3) REGULATION (SW) LOAD (Newton) TREATMENT
S16000/3A 3/4 GAS 50 110,00 83 103 30 70000 POLISHED
S16004/3A 1'1/4 GAS 65 140,00 100 128 40 150000 POLISHED
