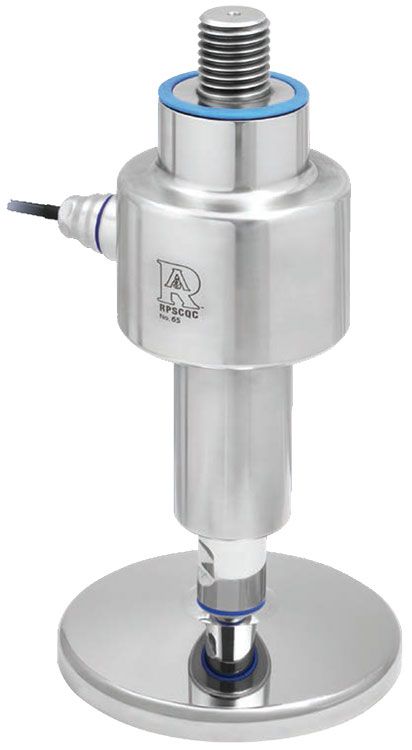

Foot with Loading Cell

TEKNO-HYGIENIC

A stainless steel accessories with a handle on a white background | Martin Levelling

Material: AISI 304 stainless steel (foot), 17.4 PH stainless steel (loading cell), blue silicone (gaskets) combined error ≤ ±0.1%

protection rating IP69K cable suitable for contact with foodstuff

RPSCQC hygienic system authorized by 3-A SSI

For applications where the 3-a certification is not required: the loading cell can be assembled on all Martin feet, even with a complete threaded screw or different materials (i.e. galvanized steel).

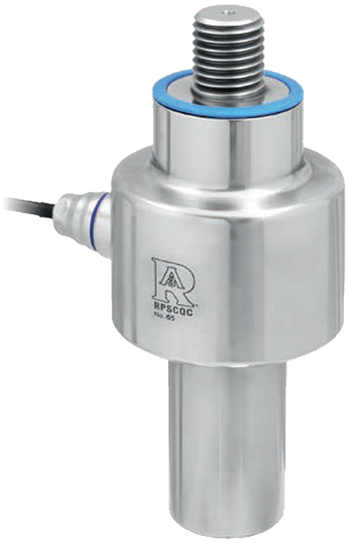

LOADING CELL

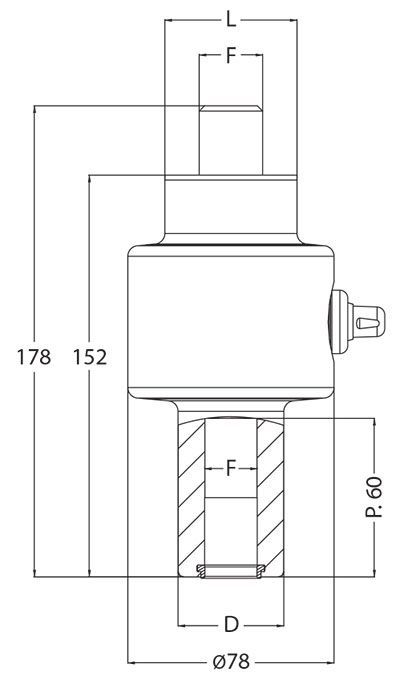

A black and white drawing of a cylinder with measurements on a white background.

CODE	SIZE (F)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
Not found

PDF

STAINLESS-STEEL FOOT, TILTED 5° – Ø120

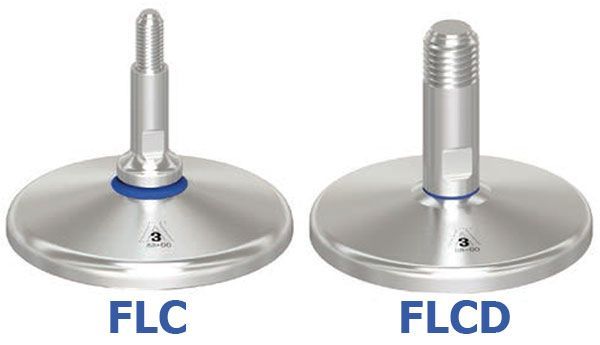

Two stainless steel feet with the words flc and flcd on them

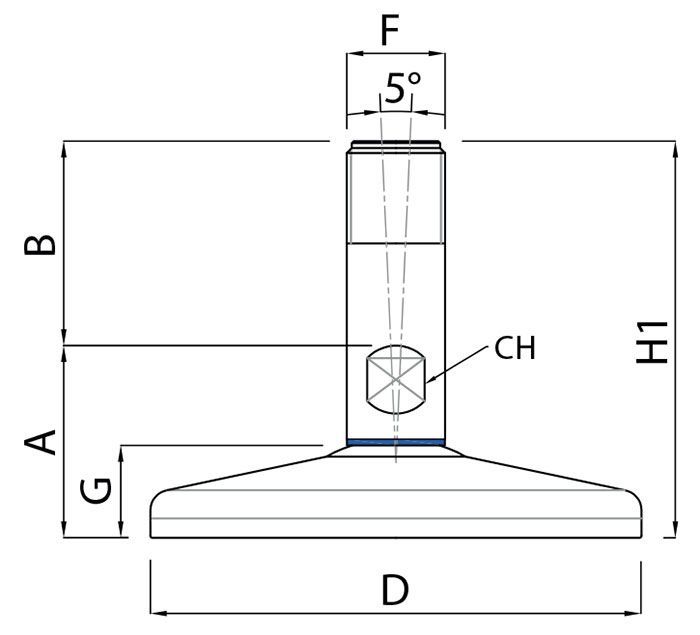

A drawing of a metal object with measurements on a white background.

CODE	SIZE (F)	FLOOR DISTANCE (A	STEM LENGTH (B)	BASE SIZE (D)	BASE LENGTH (G)	TOTAL HEIGHT	REGULATION (SW)	LOAD (Newton)
FLC273793A	M12	51,5	50,00	120	23	101,5	13	1000
FLC273793A	M12	51,5	50,00	120	23	101,5	13	2000
FLC273803A	M16	51,5	50,00	120	23	101,5	13	5000
FLC273843A	M20	51,5	50,00	120	23	101,5	17	5000
FLCD120M24503 A	M24	47	50,00	120	22,5	97	20	10000
FLCD120M30503 A	M30	47	50,00	120	22	97	26	10000
FLCD120M36503 A	M36	47	50,00	120	21	97	32	20000
