TEKNO-FIX LINE

A bunch of nuts and bolts on a white background

• Material: steel

• Surface finishing: “V” CODE = yellow painted – “F” CODE = phosphated – “TF” CODE = base & screw phosphated

• Base with niche: Galvanized steel base (C40) and Burnished screw.

Ø 65 – 1 BORE – 8° OR FIX BY BOTTOM LOCKING NUT

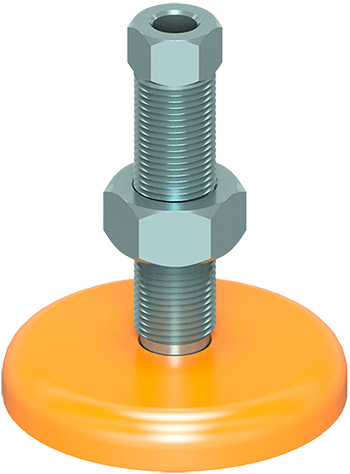

A close up of a screw and nut on an orange base on a white background.

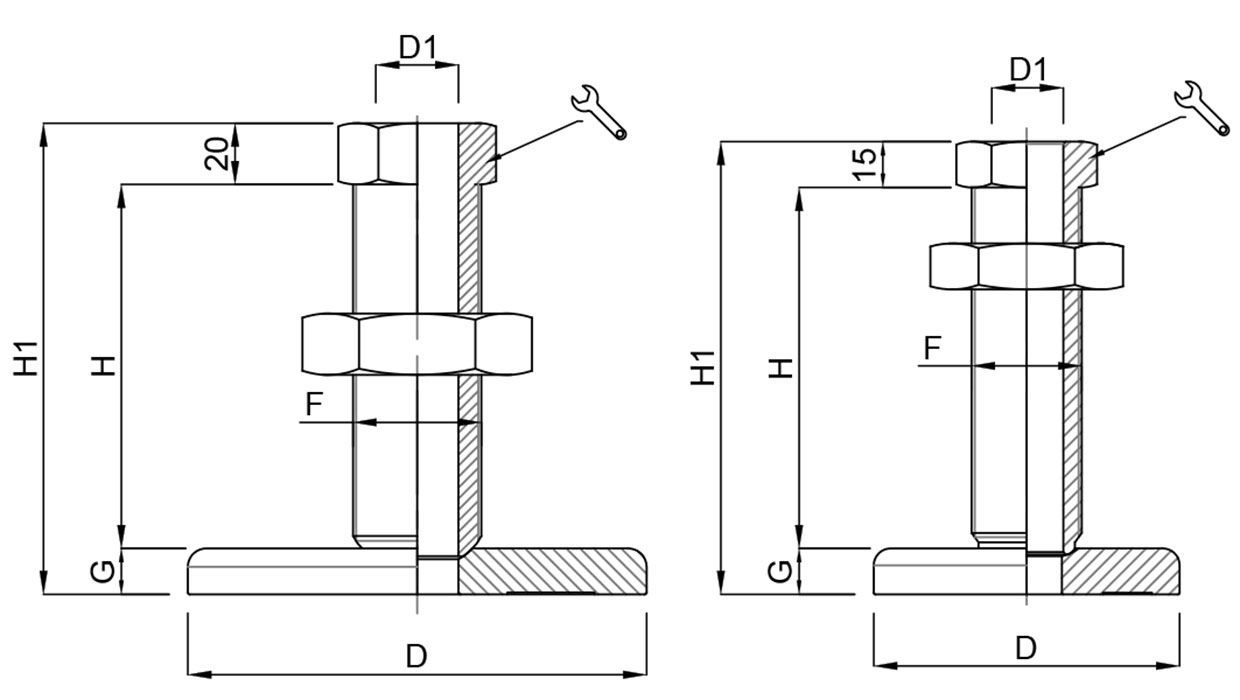

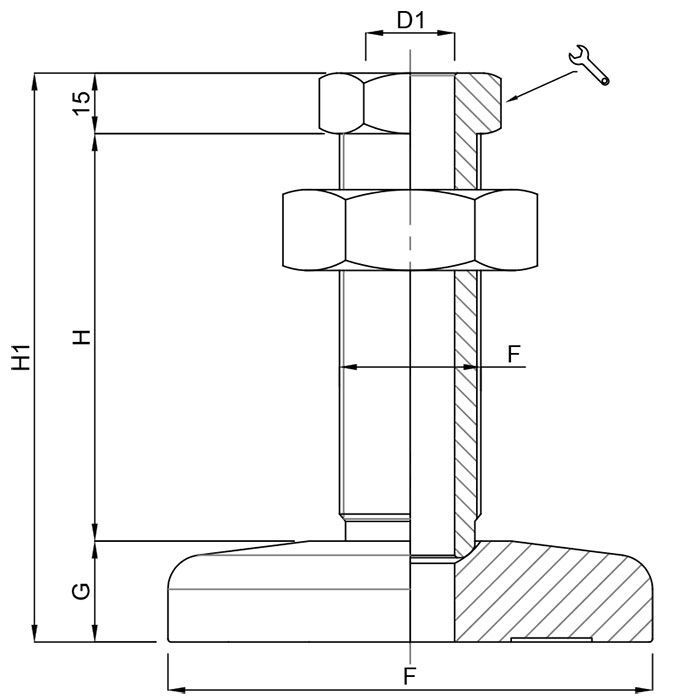

A black and white drawing of a screw with measurements and a wrench.
CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr LOAD (Newton)
12620V M24x2 141,00 100 174,00 HEX 24 1379 60000
12620F M24x2 141,00 100 174,00 HEX 24 1379 60000
12620TF M24x2 141,00 100 174,00 HEX 24 1379 60000
12621TF M24x2 87,00 100 120,00 HEX 24 1379 60000
12621V M24x2 87,00 100 120,00 HEX 24 1267 60000
12621F M24x2 87,00 100 120,00 HEX 24 1267 60000
12617V M35x2 100,00 120 140,00 HEX 41 2610 90000
12617F M35x2 100,00 120 140,00 HEX 41 2610 90000
12617TF M35x2 100,00 120 140,00 HEX 41 2610 90000
12618V M36x2 100,00 120 140,00 HEX 41 2645 90000
12618F M36x2 100,00 120 140,00 HEX 41 2645 90000
12618TF M36x2 100,00 120 140,00 HEX 41 2645 90000
12619V M35x2 177,00 120 217,00 HEX 41 2859 90000
12619F M35x2 177,00 120 217,00 HEX 41 2859 90000
12619TF M35x2 177,00 120 217,00 HEX 41 2859 90000
12623V M35x2 100,00 150 140,00 HEX 41 3721 90000
12623F M35x2 100,00 150 140,00 HEX 41 3721 90000
12623TF M35x2 100,00 150 140,00 HEX 41 3721 90000
12624V M36x2 100,00 150 140,00 HEX 41 3755 90000
12624F M36x2 100,00 150 140,00 HEX 41 3755 90000
12624TF M36x2 100,00 150 140,00 HEX 41 3755 90000
12625V M35x2 177,00 150 217,00 HEX 41 3970 90000
12625F M35x2 177,00 150 217,00 HEX 41 3970 90000
12625TF M35x2 177,00 150 217,00 HEX 41 3970 90000
12626V M36x2 177,00 150 217,00 HEX 41 4120 90000
12626F M36x2 177,00 150 217,00 HEX 41 4120 90000
12626TF M36x2 177,00 150 217,00 HEX 41 4120 90000
PDF

TEKNO-FIX CNC

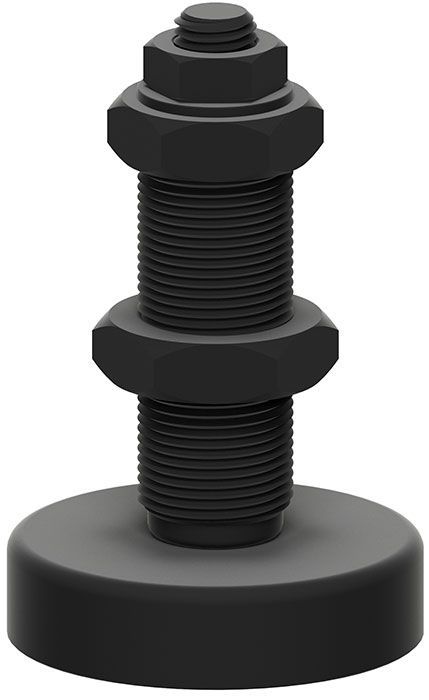

A black screw with nuts and washers on a white background.

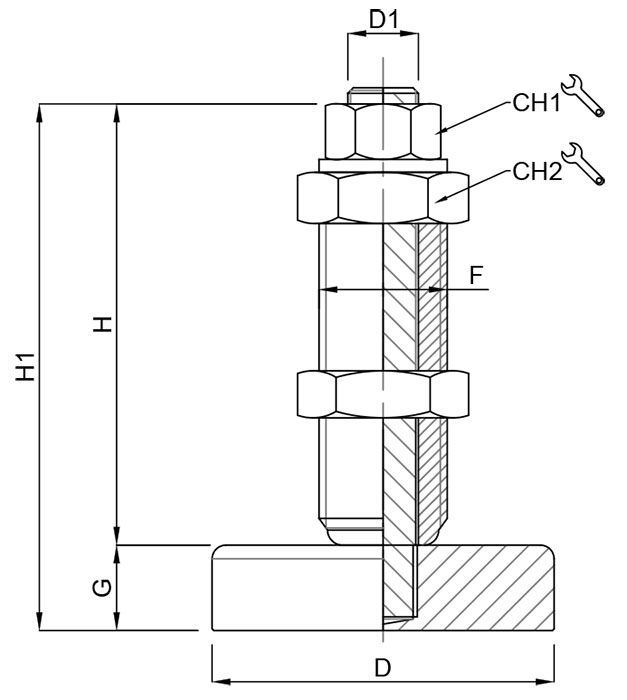

A black and white drawing of a bolt with nuts and washers.
CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr LOAD (Newton)
12622 M30x2 75,00 80 126,00 HEX 24/36 1318 70000
12627 M27x2 78,00 68 134,00 HEX 19/27 1119 65000
12627/60 M27x2 63,00 68 113,00 HEX 19/27 - 65000
12627/90 M27x2 93,00 68 143,00 HEX 19/27 - 65000
12627/110 M27x2 108,00 68 163,00 HEX 19/27 - 65000
12627/130 M27x2 128,00 68 183,00 HEX 19/27 - 65000
PDF

BASE AND SCREW WITH THROUGH HOLE, THIN PITCH

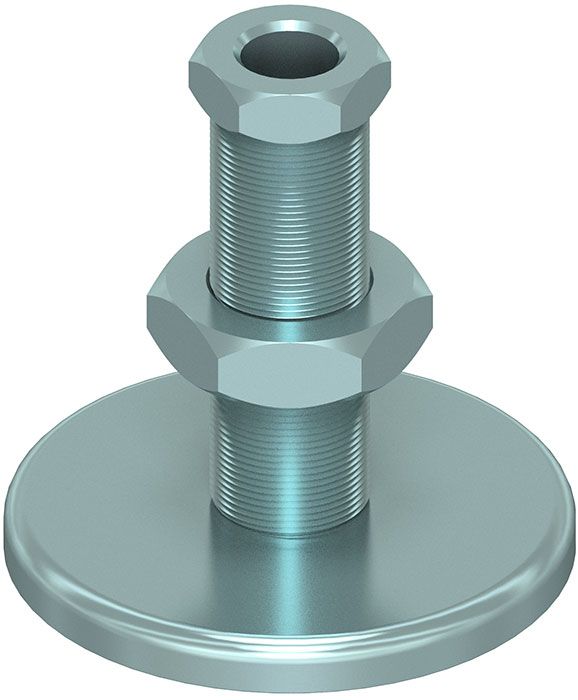

A 3d rendering of a metal screw with a hole in the middle
A black and white drawing of a piece of metal with measurements.
CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr LOAD (Newton)
12628 M42x2 119,00 150 154,00 HEX 45 4102 100000
12629 M36x3 118,00 100 148,00 HEX 41 1656 90000
PDF

BASE WITH NICHE, HEXAGONAL SCREW

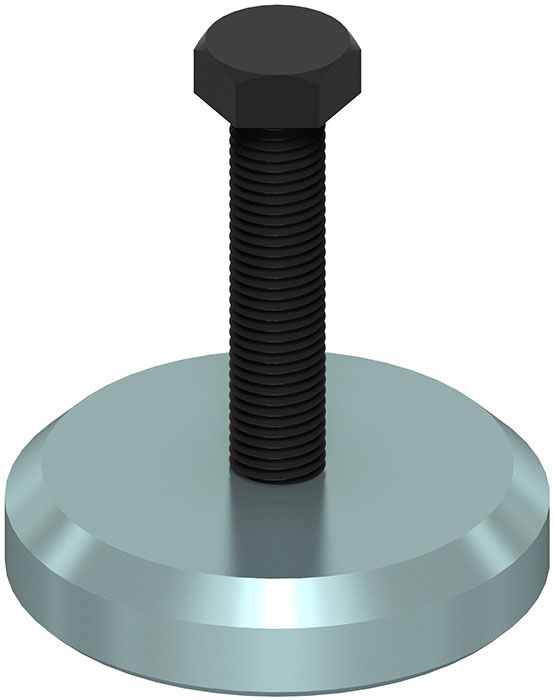

A black bolt is sitting on top of a metal plate.

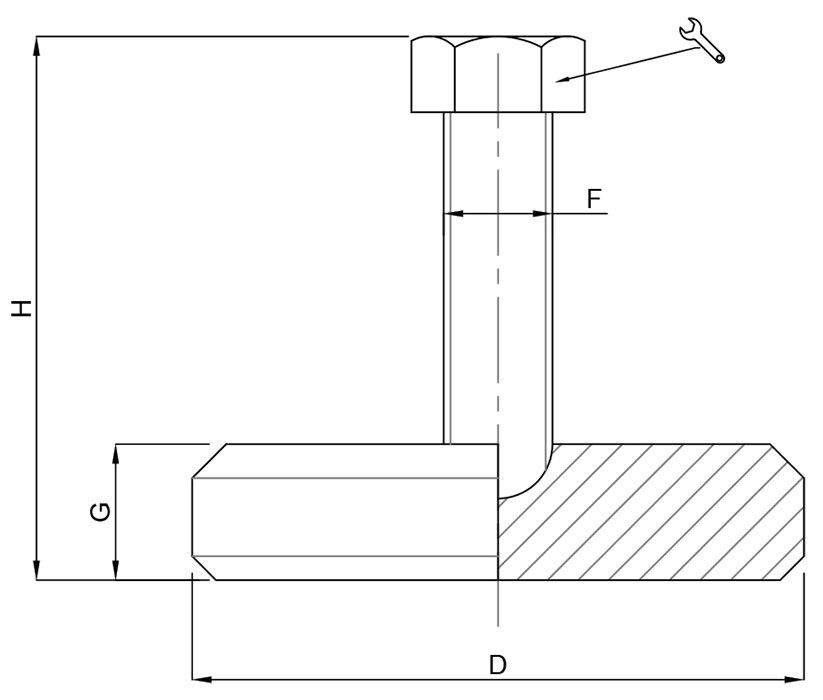

A black and white drawing of a nut and washer with measurements.
CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr LOAD (Newton)
12345 M16x2 40,00 90 60,00 HEX 24 1321 35000
12347 M16x2 60,00 90 80,00 HEX 24 1321 35000
PDF
