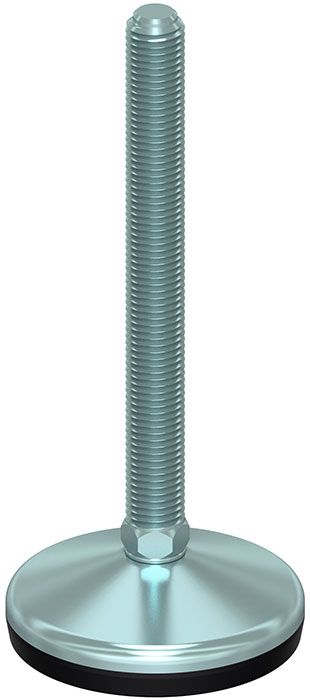

Vulcanized 10°
steel line
• Base in black polyamide material, reinforced by sphere glass. On request non-skid plate in NBR rubber 70 shore is available (Standard code = without rubber). Stainless steel screw in 1.4301 (1.4401on specific request). The leveling mount could be supplied, on request, with steel nut.
• Load values mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.
code + BL = Blue version RAL 5005
code/P2 = Available with Thin pitch thread.

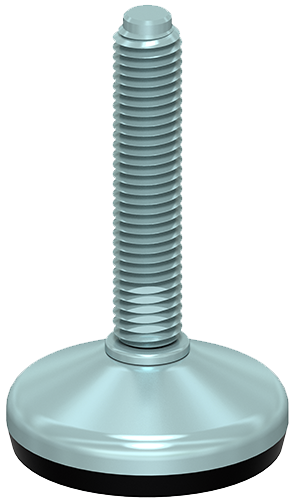

Ø 40 – 10° ARTICULATED STEM

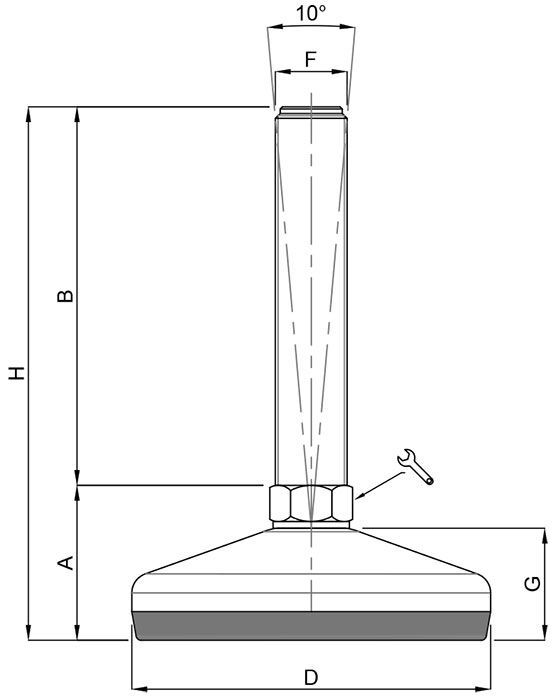

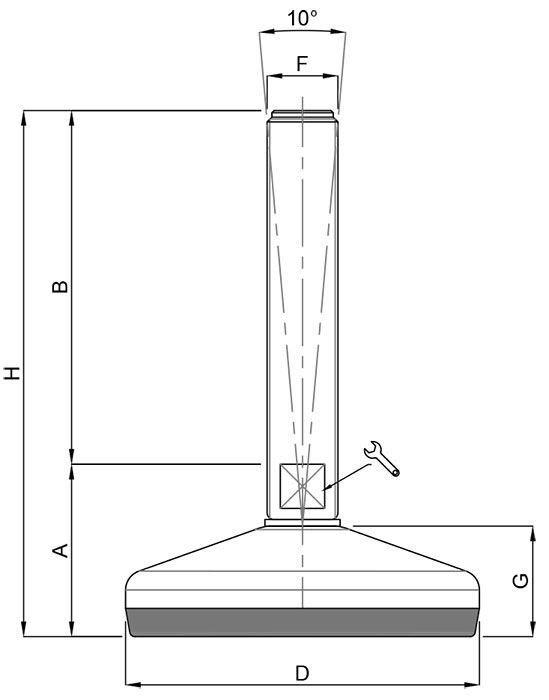

| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D | TOTAL HEIGHT | REGULATION (SW) | LOAD (Newton) |
|---|---|---|---|---|---|---|
| 25700 | M8x1,25 | 25,00 | 40 | 51,00 | 6 | 3000 |
| 25702 | M8x1,25 | 50,00 | 40 | 76,00 | 6 | 3000 |
| 25704 | M8x1,25 | 75,00 | 40 | 101,00 | 6 | 3000 |
| 25706 | M10x1,5 | 25,00 | 40 | 51,00 | 8 | 3000 |
| 25708 | M10x1,5 | 50,00 | 40 | 76,00 | 8 | 3000 |
| 25710 | M10x1,5 | 75,00 | 40 | 101,00 | 8 | 3000 |
| 25712 | M10x1,5 | 100,00 | 40 | 126,00 | 8 | 3000 |
| 25714 | M10x1,5 | 125,00 | 40 | 151,00 | 8 | 3000 |
| 25716 | M12x1,75 | 50,00 | 40 | 76,00 | 10 | 3000 |
| 25718 | M12x1,75 | 75,00 | 40 | 101,00 | 10 | 3000 |
| 25720 | M12x1,75 | 100,00 | 40 | 126,00 | 10 | 3000 |
| 25722 | M12x1,75 | 125,00 | 40 | 151,00 | 10 | 3000 |
| 25724 | M12x1,75 | 150,00 | 40 | 176,00 | 10 | 3000 |

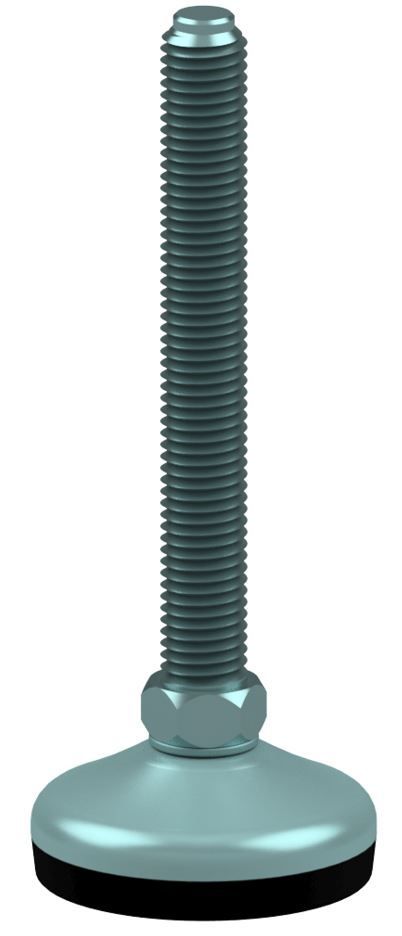

Ø 50 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 25800 | M10x1,5 | 50,00 | 50 | 79,00 | HEX 14 | 116 | 4000 |
| 25802 | M10x1,5 | 100,00 | 50 | 129,00 | HEX 14 | 139 | 4000 |
| 25810 | M12x1,75 | 50,00 | 50 | 79,00 | HEX 14 | 127 | 4000 |
| 25812 | M12x1,75 | 100,00 | 50 | 129,00 | HEX 14 | 159 | 4000 |
| 25814 | M12x1,75 | 150,00 | 50 | 179,00 | HEX 14 | 196 | 4000 |
| 25820 | M14x2 | 50,00 | 50 | 79,00 | HEX | 140 | 4000 |
| 25822 | M14x2 | 100,00 | 50 | 129,00 | HEX 14 | 187 | 4000 |
| 25824 | M14x2 | 150,00 | 50 | 179,00 | HEX 14 | 237 | 4000 |
| 25830 | M16x2 | 75,00 | 50 | 104,00 | HEX 16 | 191 | 4000 |
| 25832 | M16x2 | 100,00 | 50 | 129,00 | HEX | 223 | 4000 |
| 25834 | M16x2 | 150,00 | 50 | 179,00 | HEX 16 | 288 | 4000 |
| 25836 | M16x2 | 200,00 | 50 | 229,00 | HEX 16 | 351 | 4000 |

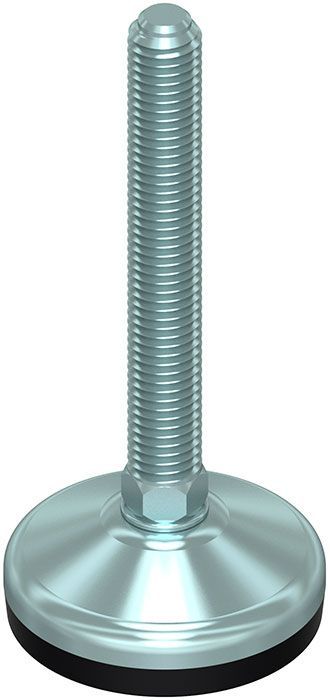

Ø 60 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 25850 | M10x1,5 | 50,00 | 60 | 82,00 | HEX 14 | 162 | 7000 |
| 25852 | M10x1,5 | 100,00 | 60 | 132,00 | HEX 14 | 185 | 7000 |
| 25860 | M12x1,75 | 50,00 | 60 | 82,00 | HEX 14 | 173 | 7000 |
| 25862 | M12x1,75 | 100,00 | 60 | 132,00 | HEX 14 | 205 | 7000 |
| 25864 | M12x1,75 | 150,00 | 60 | 182,00 | HEX | 14 | 7000 |
| 25870 | M14x2 | 50,00 | 60 | 82,00 | HEX 14 | 186 | 7000 |
| 25872 | M14x2 | 100,00 | 60 | 132,00 | HEX 14 | 233 | 7000 |
| 25874 | M14x2 | 150,00 | 60 | 182,00 | HEX 14 | 283 | 7000 |
| 25880 | M16x2 | 75,00 | 60 | 107,00 | HEX 16 | 237 | 7000 |
| 25882 | M16x2 | 100,00 | 60 | 132,00 | HEX 16 | 269 | 7000 |
| 25884 | M16x2 | 150,00 | 60 | 182,00 | HEX 16 | 334 | 7000 |
| 25886 | M16x2 | 200,00 | 60 | 232,00 | HEX 16 | 397 | 7000 |
| 25890 | M20x2,5 | 75,00 | 60 | 108,00 | HEX 20 | 300 | 7000 |
| 25892 | M20x2,5 | 100,00 | 60 | 133,00 | HEX 20 | 350 | 7000 |
| 25894 | M20x2,5 | 150,00 | 60 | 183,00 | HEX 20 | 452 | 7000 |
| 25896 | M20x2,5 | 200,00 | 60 | 233,00 | HEX 20 | 553 | 7000 |
| 25898 | M20x2,5 | 250,00 | 60 | 283,00 | HEX 20 | 20 | 7000 |
Ø 80 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 26000 | M10x1,5 | 50,00 | 80 | 85,00 | HEX 14 | 259 | 10000 |
| 26004 | M10x1,5 | 100,00 | 80 | 135,00 | HEX 14 | 282 | 10000 |
| 26010 | M12x1,75 | 50,00 | 80 | 85,00 | HEX 14 | 270 | 10000 |
| 26014 | M12x1,75 | 100,00 | 80 | 135,00 | HEX 14 | 302 | 10000 |
| 26018 | M12x1,75 | 150,00 | 80 | 185,00 | HEX 14 | 339 | 10000 |
| 26022 | M14x2 | 50,00 | 80 | 85,00 | HEX 14 | 283 | 10000 |
| 26024 | M14x2 | 100,00 | 80 | 135,00 | HEX 14 | 330 | 10000 |
| 26028 | M14x2 | 150,00 | 80 | 185,00 | HEX 14 | 380 | 10000 |
| 26034 | M16x2 | 75,00 | 80 | 110,00 | HEX 16 | 334 | 10000 |
| 26036 | M16x2 | 100,00 | 80 | 135,00 | HEX 16 | 366 | 10000 |
| 26040 | M16x2 | 150,00 | 80 | 185,00 | HEX 16 | 431 | 10000 |
| 26042 | M16x2 | 200,00 | 80 | 235,00 | HEX 16 | 494 | 10000 |
| 26050 | M20x2,5 | 75,00 | 80 | 111,00 | HEX 20 | 397 | 10000 |
| 26052 | M20x2,5 | 100,00 | 80 | 136,00 | HEX 20 | 447 | 10000 |
| 26054 | M20x2,5 | 150,00 | 80 | 186,00 | HEX 20 | 549 | 10000 |
| 26058 | M20x2,5 | 200,00 | 80 | 236,00 | HEX 20 | 650 | 10000 |
| 26060 | M20x2,5 | 250,00 | 80 | 286,00 | HEX 20 | 753 | 10000 |
| 26070 | M24x3 | 75,00 | 80 | 111,00 | HEX 24 | 470 | 10000 |
| 26072 | M24x3 | 100,00 | 80 | 136,00 | HEX 24 | 543 | 10000 |
| 26076 | M24x3 | 150,00 | 80 | 186,00 | HEX 24 | 688 | 10000 |
| 26080 | M24x3 | 200,00 | 80 | 236,00 | HEX 24 | 834 | 10000 |

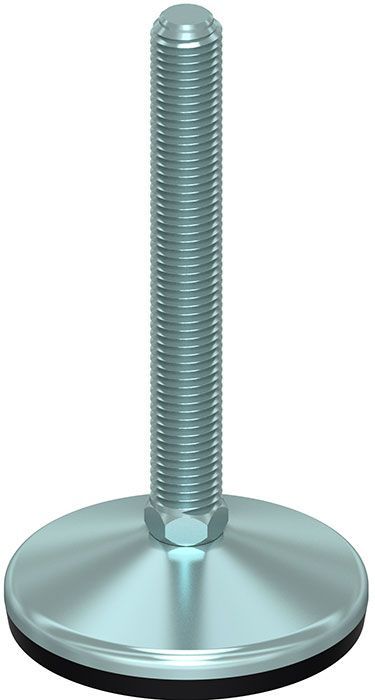

Ø 100 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 26090 | M16x2 | 75,00 | 100 | 112,50 | HEX 16 | 469 | 15000 |
| 26092 | M16x2 | 100,00 | 100 | 137,50 | HEX 16 | 501 | 15000 |
| 26096 | M16x2 | 150,00 | 100 | 187,50 | HEX 16 | 566 | 15000 |
| 26100 | M16x2 | 200,00 | 100 | 237,50 | HEX 16 | 629 | 15000 |
| 26110 | M20x2,5 | 75,00 | 100 | 113,50 | HEX 20 | 532 | 15000 |
| 26112 | M20x2,5 | 100,00 | 100 | 138,50 | HEX 20 | 582 | 15000 |
| 26116 | M20x2,5 | 150,00 | 100 | 188,50 | HEX 20 | 684 | 15000 |
| 26120 | M20x2,5 | 200,00 | 100 | 238,50 | HEX 20 | 785 | 15000 |
| 26124 | M20x2,5 | 250,00 | 100 | 288,50 | HEX 20 | 888 | 15000 |
| 26130 | M24x3 | 100,00 | 100 | 138,50 | HEX 24 | 605 | 15000 |
| 26134 | M24x3 | 150,00 | 100 | 188,50 | HEX 24 | 678 | 15000 |
| 26140 | M24x3 | 200,00 | 100 | 238,50 | HEX 24 | 823 | 15000 |
| 26144 | M24x3 | 250,00 | 100 | 288,50 | HEX 24 | 969 | 15000 |
| 26150 | M30x3,5 | 100,00 | 100 | 139,50 | HEX 30 | 870 | 15000 |
| 26154 | M30x3,5 | 150,00 | 100 | 189,50 | HEX 30 | 1103 | 15000 |
| 26158 | M30x3,5 | 200,00 | 100 | 239,50 | HEX 30 | 1327 | 15000 |
| 26162 | M30x3,5 | 250,00 | 100 | 289,50 | HEX 30 | 1557 | 15000 |

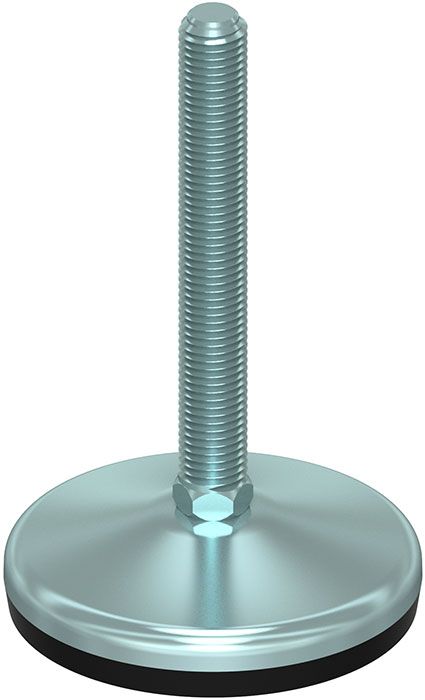

Ø 120 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 26200 | M16x2 | 75,00 | 120 | 116,50 | HEX 16 | 798 | 30000 |
| 26202 | M16x2 | 100,00 | 120 | 141,15 | HEX 16 | 830 | 30000 |
| 26204 | M16x2 | 150,00 | 120 | 191,50 | HEX 16 | 895 | 30000 |
| 26206 | M16x2 | 200,00 | 120 | 241,50 | HEX 16 | 958 | 30000 |
| 26210 | M20x2,5 | 75,00 | 120 | 117,50 | HEX 20 | 861 | 30000 |
| 26212 | M20x2,5 | 100,00 | 120 | 142,50 | HEX 20 | 911 | 30000 |
| 26214 | M20x2,5 | 150,00 | 120 | 192,50 | HEX 20 | 1013 | 30000 |
| 26216 | M20x2,5 | 200,00 | 120 | 242,50 | HEX 20 | 1114 | 30000 |
| 26218 | M20x2,5 | 250,00 | 120 | 292,50 | HEX 20 | 1217 | 30000 |
| 26220 | M24x3 | 100,00 | 120 | 142,50 | HEX 24 | 1007 | 30000 |
| 26222 | M24x3 | 150,00 | 120 | 192,50 | HEX 24 | 1152 | 30000 |
| 26224 | M24x3 | 200,00 | 120 | 242,50 | HEX 24 | 1298 | 30000 |
| 26226 | M24x3 | 250,00 | 120 | 292,50 | HEX 24 | 1443 | 30000 |
| 26230 | M30x3,5 | 100,00 | 120 | 143,50 | HEX 30 | 1199 | 30000 |
| 26232 | M30x3,5 | 150,00 | 120 | 193,50 | HEX 30 | 1432 | 30000 |
| 26234 | M30x3,5 | 200,00 | 120 | 243,50 | HEX 30 | 1656 | 30000 |
| 26236 | M30x3,5 | 250,00 | 120 | 293,50 | HEX 30 | 1886 | 30000 |

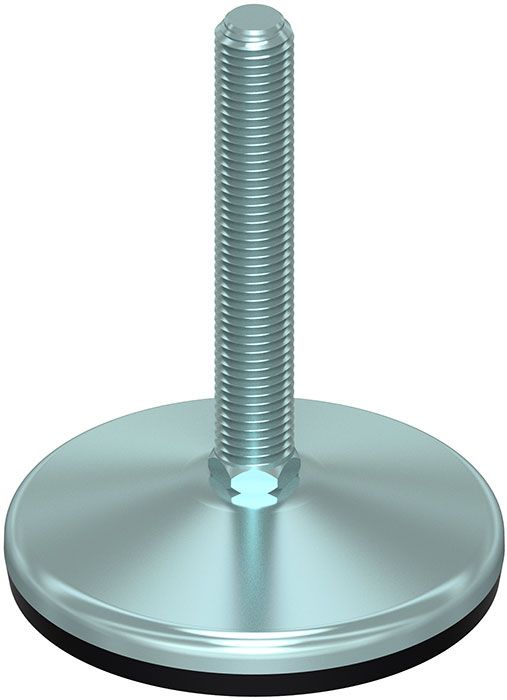

Ø 150 – 10° ARTICULATED STEM
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | LOAD (Newton) |
|---|---|---|---|---|---|---|
| 26238 | M16x2 | 75,00 | 150 | 119,50 | HEX 16 | 30000 |
| 26240 | M16x2 | 100,00 | 150 | 144,50 | HEX 16 | 30000 |
| 26242 | M16x2 | 150,00 | 150 | 194,50 | HEX 16 | 30000 |
| 26244 | M16x2 | 200,00 | 150 | 244,50 | HEX 16 | 30000 |
| 26246 | M20x2,5 | 75,00 | 150 | 119,00 | HEX 20 | 30000 |
| 26248 | M20x2,5 | 100,00 | 150 | 144,00 | HEX 20 | 30000 |
| 26250 | M20x2,5 | 150,00 | 150 | 194,00 | HEX 20 | 30000 |
| 26252 | M20x2,5 | 200,00 | 150 | 244,00 | HEX 20 | 30000 |
| 26254 | M20x2,5 | 250,00 | 150 | 294,00 | HEX 20 | 30000 |
| 26256 | M24x3 | 100,00 | 150 | 144,00 | HEX 24 | 40000 |
| 26258 | M24x3 | 150,00 | 150 | 194,00 | HEX 24 | 40000 |
| 26260 | M24x3 | 200,00 | 150 | 244,00 | HEX 24 | 40000 |
| 26262 | M24x3 | 250,00 | 150 | 294,00 | HEX 24 | 40000 |
| 26264 | M30x3,5 | 100,00 | 150 | 145,00 | HEX 30 | 40000 |
| 26266 | M30x3,5 | 150,00 | 150 | 195,00 | HEX 30 | 40000 |
| 26268 | M30x3,5 | 200,00 | 150 | 245,00 | HEX 30 | 40000 |
| 26270 | M30x3,5 | 250,00 | 150 | 295,00 | HEX 30 | 40000 |
