Heavy Duty - Fix Stem - Antislip

steel line

A group of screws of different sizes are sitting next to each other on a white background.

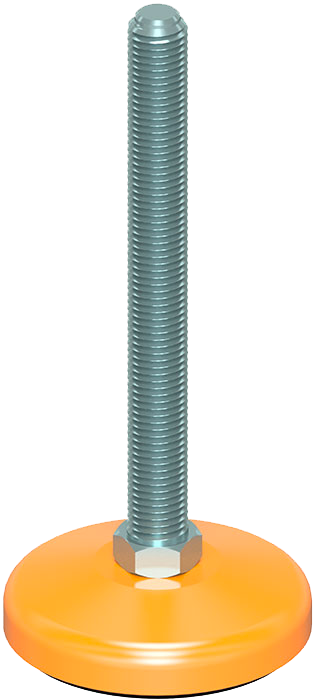

Ø 80 – PAINTED VERSION

A close up of a screw on a yellow base on a white background.

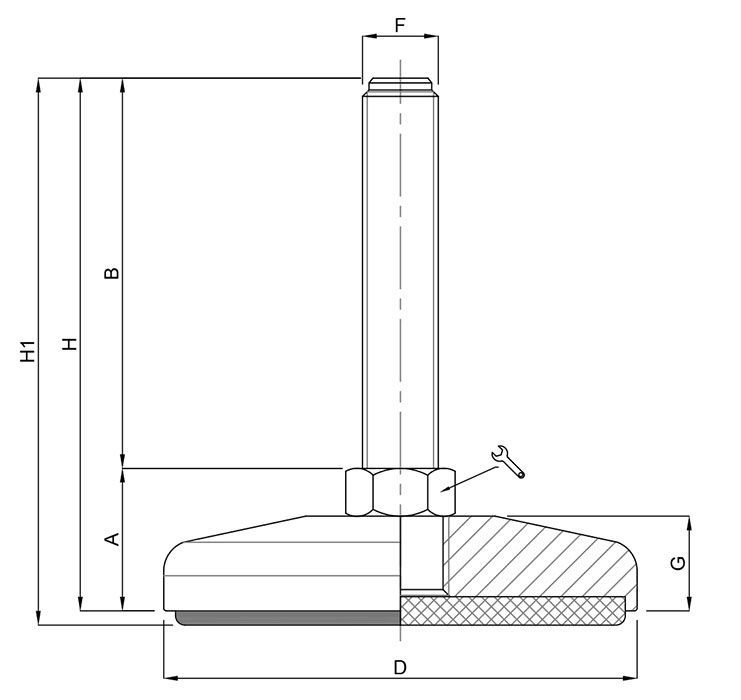

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11491	M16x2	100,00	80	131,00	HEX 20	627	30000
11495	M16x2	150,00	80	181,00	HEX 20	692	30000
11499	M16x2	200,00	80	231,00	HEX 20	755	30000
11539	M20x2,5	100,00	80	131,00	HEX 24	715	35000
11543	M20x2,5	150,00	80	181,00	HEX 24	816	35000
11547	M20x2,5	200,00	80	231,00	HEX 24	920	35000
11549	M20x2,5	225,00	80	256,00	HEX 24	970	35000
11539/24	M24x3	100,00	80	131,00	HEX 24	838	40000
11543/24	M24x3	150,00	80	181,00	HEX 24	976	40000
11547/24	M24x3	200,00	80	231,00	HEX 24	1123	40000
11549/24	M24x3	225,00	80	256,00	HEX 24	1192	40000

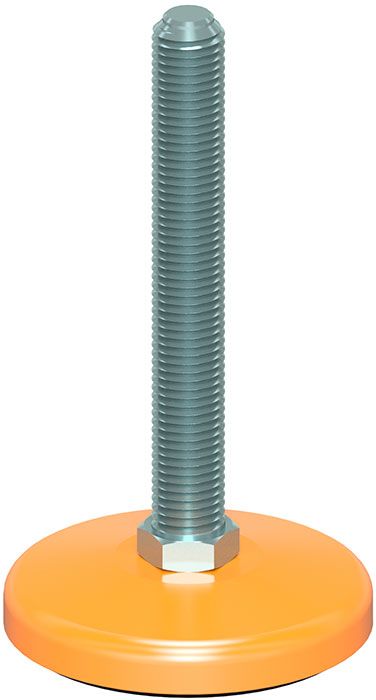

Ø 100 – PAINTED VERSION

A screw is sitting on top of an yellow base on a white background.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11587	M16x2	100,00	100	133,00	HEX 24	1001	35000
11591	M16x2	150,00	100	183,00	HEX 24	1066	35000
11595	M16x2	200,00	100	233,00	HEX 24	1129	35000
11643	M20x2,5	100,00	100	133,00	HEX 24	1089	40000
11647	M20x2,5	150,00	100	186,00	HEX 24	1190	40000
11651	M20x2,5	200,00	100	233,00	HEX 24	1294	40000
11655	M20x2,5	250,00	100	283,00	HEX 24	1393	40000
11699	M24x3	100,00	100	133,00	HEX 24	1212	45000
11703	M24x3	150,00	100	183,00	HEX 24	1350	45000
11707	M24x3	200,00	100	233,00	HEX 24	1497	45000
11711	M24x3	250,00	100	283,00	HEX 24	1633	45000

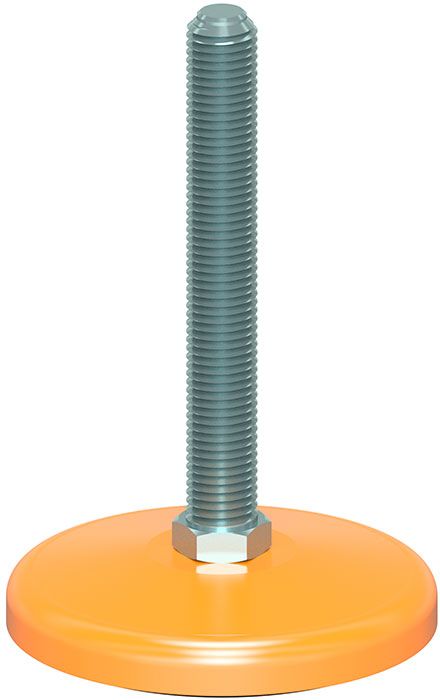

Ø 120 – PAINTED VERSION

A screw is sitting on top of an yellow base.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11755	M20x2,5	100,00	120	135,00	HEX 24	1660	45000
11759	M20x2,5	150,00	120	185,00	HEX 24	1761	45000
11763	M20x2,5	200,00	120	235,00	HEX 24	1865	45000
11767	M20x2,5	250,00	120	285,00	HEX 24	1964	45000
11811	M24x3	100,00	120	135,00	HEX 24	1783	50000
11815	M24x3	150,00	120	185,00	HEX 24	1921	50000
11819	M24x3	200,00	120	235,00	HEX 30	2068	50000
11823	M24x3	250,00	120	285,00	HEX 30	2204	50000
11867	M30x3,5	100,00	120	135,00	HEX 30	2003	60000
11871	M30x3,5	150,00	120	185,00	HEX 30	2232	60000
11875	M30x3,5	200,00	120	235,00	HEX 30	2457	60000
11879	M30x3,5	250,00	120	285,00	HEX 30	2699	60000

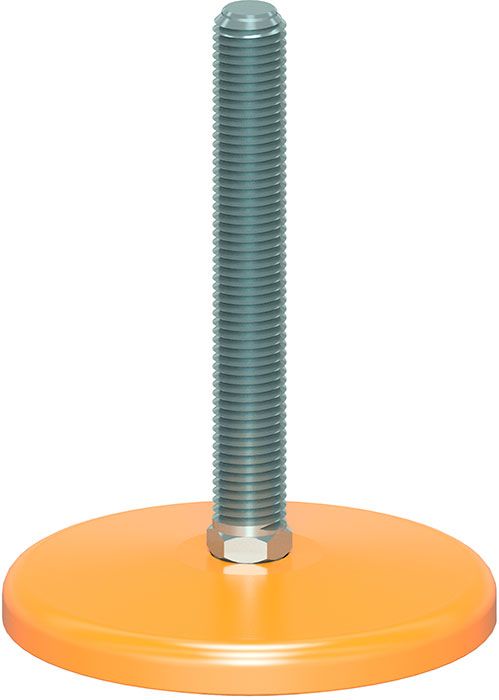

Ø 159 – PAINTED VERSION

A screw is sitting on top of an yellow base.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11923	M20x2,5	100,00	159	136,00	HEX 24	2924	50000
11927	M20x2,5	150,00	159	186,00	HEX 24	3025	50000
11931	M20x2,5	200,00	159	236,00	HEX 24	3129	50000
11935	M20x2,5	250,00	159	286,00	HEX 24	3228	50000
11979	M24x3	100,00	159	136,00	HEX 24	3047	60000
11983	M24x3	150,00	159	186,00	HEX 24	3185	60000
11987	M24x3	200,00	159	236,00	HEX 24	3332	60000
11991	M24x3	250,00	159	286,00	HEX 24	3468	60000
12035	M30x3,5	100,00	159	136,00	HEX 30	3267	70000
12039	M30x3,5	150,00	159	186,00	HEX 30	3496	70000
12043	M30x3,5	200,00	159	236,00	HEX 30	3721	70000
12047	M30x3,5	250,00	159	286,00	HEX 30	3963	70000

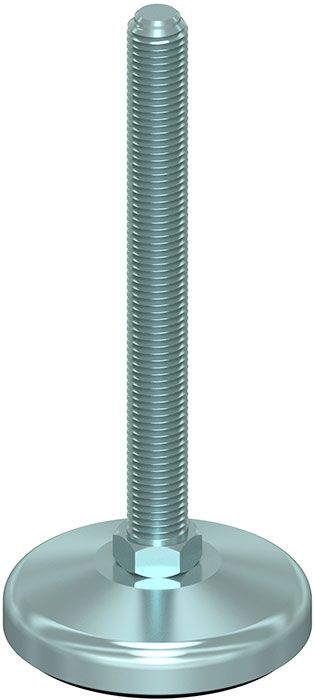

Ø 80 – ZINC VERSION

A close up of a screw on a metal base on a white background.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11515	M16x2	100,00	80	131,00	HEX 20	627	30000
11519	M16x2	150,00	80	181,00	HEX 20	692	30000
11523	M16x2	200,00	80	231,00	HEX 20	755	30000
11563	M20x2,5	100,00	80	131,00	HEX 24	715	35000
11567	M20x2,5	150,00	80	181,00	HEX 24	816	35000
11571	M20x2,5	200,00	80	231,00	HEX 24	920	35000
11573	M20x2,5	225,00	80	256,00	HEX 24	970	35000
11563/24	M24x3	100,00	80	131,00	HEX 24	838	40000
11567/24	M24x3	150,00	80	181,00	HEX 24	976	40000
11571/24	M24x3	200,00	80	231,00	HEX 24	1123	40000
11573/24	M24x3	225,00	80	256,00	HEX 24	1192	40000

Ø 100 – ZINC VERSION

A close up of a screw on a metal base on a white background.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11615	M16x2	100,00	100	133,00	HEX 24	1001	35000
11619	M16x2	150,00	100	183,00	HEX 24	1066	35000
11623	M16x2	200,00	100	233,00	HEX 24	1129	35000
11671	M20x2,5	100,00	100	133,00	HEX 24	1089	40000
11675	M20x2,5	150,00	100	183,00	HEX 24	1190	40000
11679	M20x2,5	200,00	100	233,00	HEX 24	1294	40000
11683	M20x2,5	250,00	100	283,00	HEX 24	1393	40000
11727	M24x3	100,00	100	133,00	HEX 24	1212	45000
11731	M24x3	150,00	100	183,00	HEX 24	1350	45000
11735	M24x3	200,00	100	233,00	HEX 24	1497	45000
11739	M24x3	250,00	100	283,00	HEX 24	1633	45000

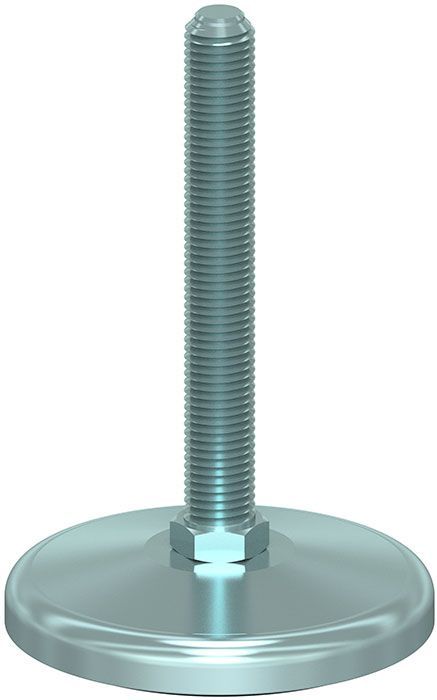

Ø 120 – ZINC VERSION

A close up of a screw on a metal base on a white background.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11783	M20x2,5	100,00	120	135,00	HEX 24	1660	45000
11787	M20x2,5	150,00	120	185,00	HEX 24	1761	45000
11791	M20x2,5	200,00	120	235,00	HEX 24	1865	45000
11795	M20x2,5	250,00	120	285,00	HEX 24	1964	45000
11839	M24x3	100,00	120	135,00	HEX 24	1783	50000
11843	M24x3	150,00	120	185,00	HEX 24	1921	50000
11847	M24x3	200,00	120	235,00	HEX 24	2068	50000
11851	M24x3	250,00	120	285,00	HEX 24	2204	50000
11895	M30x3,5	100,00	120	135,00	HEX 30	2003	60000
11899	M30x3,5	150,00	120	185,00	HEX 30	2232	60000
11903	M30x3,5	200,00	120	235,00	HEX 30	2457	60000
11907	M30x3,5	250,00	120	285,00	HEX 30	2699	60000

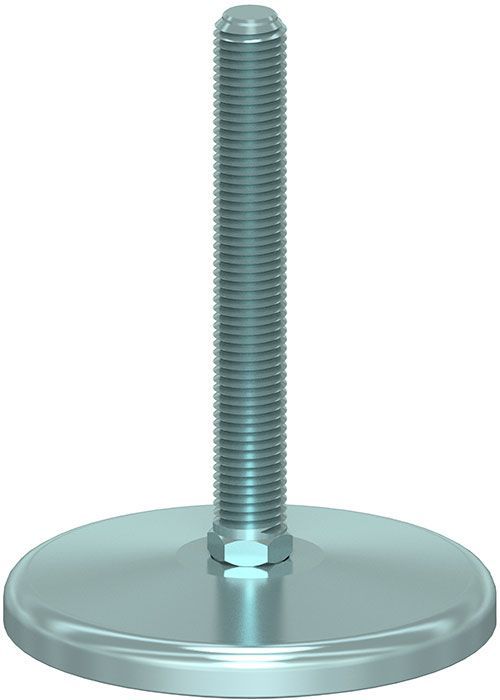

Ø 159 – ZINC VERSION

A close up of a screw on a metal base on a white background.

A black and white drawing of a foot with measurements.

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	REGULATION (SW)	WEIGHT gr	LOAD (Newton)
11951	M20x2,5	100,00	159	136,00	HEX 24	2924	50000
11955	M20x2,5	150,00	159	186,00	HEX 24	3025	50000
11959	M20x2,5	200,00	159	236,00	HEX 24	3129	50000
11963	M20x2,5	250,00	159	286,00	HEX 24	3228	50000
12007	M24x3	100,00	159	136,00	HEX 24	3047	60000
12011	M24x3	150,00	159	186,00	HEX 24	3185	60000
12015	M24x3	200,00	159	236,00	HEX 24	3332	60000
12019	M24x3	250,00	159	286,00	HEX 24	3468	60000
12063	M30x3,5	100,00	159	136,00	HEX 30	3267	70000
12067	M30x3,5	150,00	159	186,00	HEX 30	3496	70000
12071	M30x3,5	200,00	159	236,00	HEX 30	3721	70000
12075	M30x3,5	250,00	159	286,00	HEX 30	3963	70000
