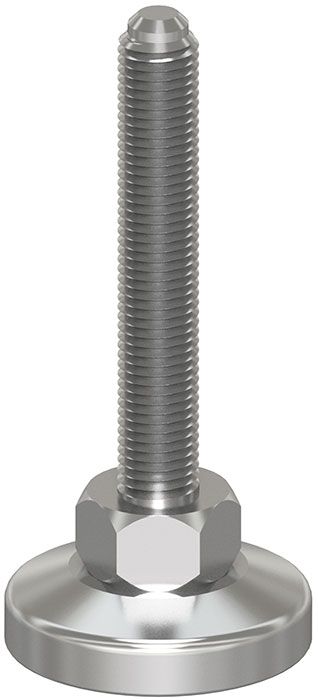

Medium Load - Solid base - Tilted stem 2/3°

STAINLESS steel line

• Material: Stainless steel base 1.4301 (1.4401 on request). On request non-skit plate in NBR rubber 70 shore is available. Stainless steel screw in 1.4301. The levelling element could be supplied, on request, with steel nut.


• Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic load these values should be reduced. For the further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.

Ø 30/40 – ANTISLIP

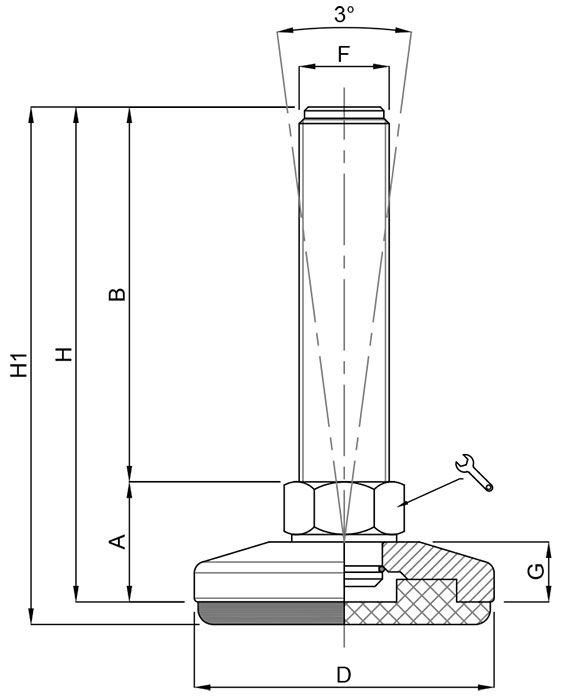

CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BASE LENGTH (G) TOTAL HEIGHT REGULATION (SW) WEIGHT (gr) LOAD (Newton)
30825/G M8x1,25 14 25,00 30 8 42,00 HEX 14 - 8000
30850/G M8x1,25 14 50,00 30 8 67,00 HEX 14 - 8000
301025/G M10x1,5 14 25,00 30 8 42,00 HEX 14 - 8000
301050/G M10x1,5 14 50,00 30 8 67,00 HEX 14 - 8000
301075/G M10x1,5 14 75,00 30 8 92,00 HEX 14 - 8000
38825/G M8x1,25 14 25,00 40 8 42,00 HEX 14 88 9000
38850/G M8x1,25 14 50,00 40 8 67,00 HEX 14 97 9000
381025/G M10x1,5 14 25,00 40 8 42,00 HEX 14 93 9000
381050/G M10x1,5 14 50,00 40 8 67,00 HEX 14 105 9000
381075/G M10x1,5 14 75,00 40 8 92,00 HEX 14 118 9000
381250/G M12x1,75 14 50,00 40 8 67,00 HEX 14 115 9000
3812100/G M12x1,75 14 100,00 40 8 117,00 HEX 14 151 9000
