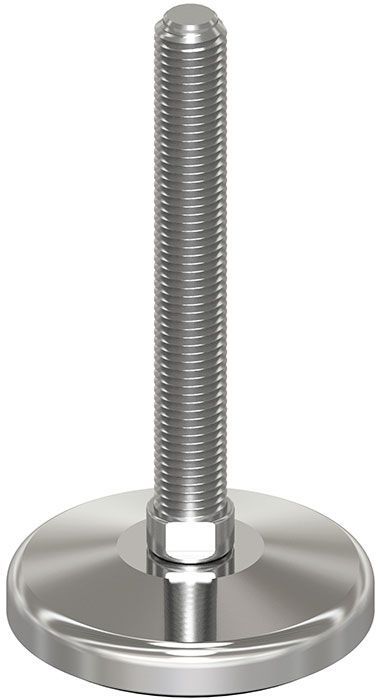

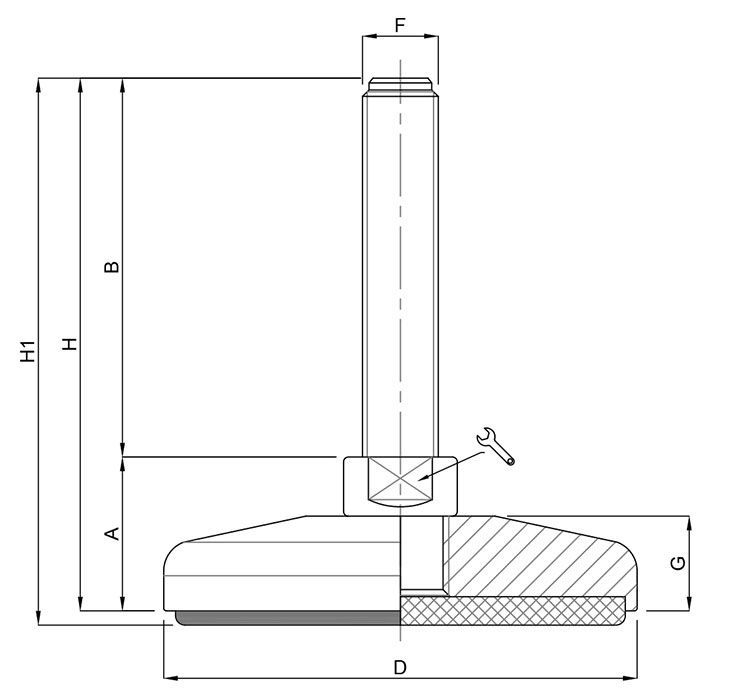

Heavy Duty – Fix Stem

STAINLESS steel line

• Stainless steel base in 1.4301 (1.4401on specific request). On request non-skid plate in NBR rubber 70 shore is available (Standard code = without rubber). Stainless steel screw in 1.4301 (1.4401on specific request). The leveling element could be supplied, on request, with steel nut.


• Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified



code/P2 = Available with Thin pitch thread.

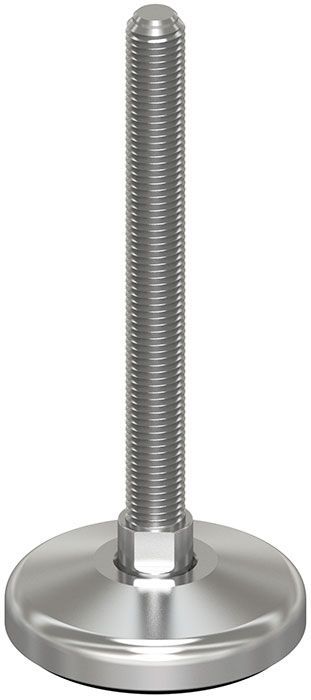

Ø 80

CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BASE LENGTH (G) TOTAL HEIGHT REGULATION (SW) WEIGHT (gr) LOAD (Newton)
11527 M16x2 31,5 100,00 80 19 134,50 17 646 30000
11531 M16x2 31,5 150,00 80 19 184,50 17 710 30000
11535 M16x2 31,5 200,00 80 19 234,50 17 774 30000
11575 M20x2,5 31,5 100,00 80 19 134,50 HEX 24 726 35000
11579 M20x2,5 31,5 150,00 80 19 184,50 HEX 24 826 35000
11583 M20x2,5 31,5 200,00 80 19 234,50 HEX 24 931 35000
11585 M20x2,5 31,5 225,00 80 19 259,50 HEX 24 979 35000
11575/24 M24x3 33 100,00 80 19 136,00 HEX 24 854 40000
11579/24 M24x3 33 150,00 80 19 186,00 HEX 24 991 40000
11583/24 M24x3 33 200,00 80 19 236,00 HEX 24 1139 40000
11579/24/P2 M24x2 33 150,00 80 19 186,00 HEX 24 991 40000
11583/24/P2 M24x2 33 200,00 80 19 236,00 HEX 24 1139 40000
11585/24 M24x3 33 225,00 80 19 261,00 HEX 24 1209 40000
PDF

Ø 100

CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BASE LENGTH (G) TOTAL HEIGHT REGULATION (SW) WEIGHT (gr) LOAD (Newton)
11629 M16x2 33 100,00 100 20 136,00 20 954 35000
11633 M16x2 33 150,00 100 20 186,00 20 1018 35000
11637 M16x2 33 200,00 100 20 236,00 20 1082 35000
11685 M20x2,5 33 100,00 100 20 136,00 20 1034 40000
11689 M20x2,5 33 150,00 100 20 186,00 20 1134 40000
11693 M20x2,5 33 200,00 100 20 236,00 20 1239 40000
11697 M20x2,5 33 250,00 100 20 286,00 20 1388 40000
11741 M24x3 34 100,00 100 20 137,00 20 1162 45000
11745 M24x3 34 150,00 100 20 187,00 20 1299 45000
11749 M24x3 34 200,00 100 20 237,00 20 1447 45000
11745/P2 M24x2 34 150,00 100 20 187,00 20 1299 45000
11749/P2 M24x2 34 200,00 100 20 237,00 20 1447 45000
11753 M24x3 34 250,00 100 20 287,00 20 1584 45000
PDF

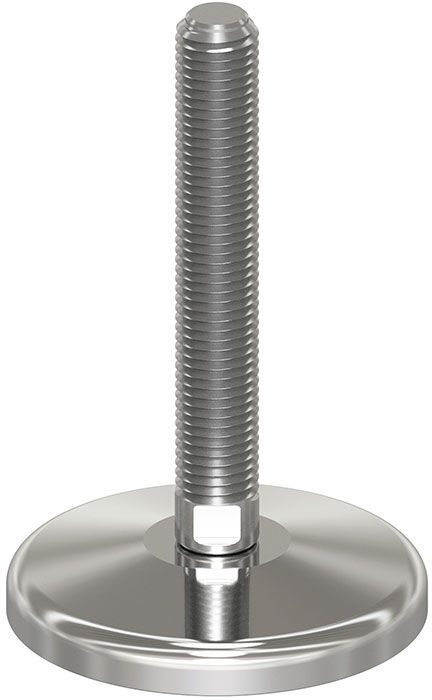

Ø 120

CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BASE LENGTH (G) TOTAL HEIGHT REGULATION (SW) WEIGHT (gr) LOAD (Newton)
11797 M20x2,5 35 100,00 120 22 138,00 HEX 24 1604 45000
11801 M20x2,5 35 150,00 120 22 188,00 HEX 24 1704 45000
11805 M20x2,5 35 200,00 120 22 238,00 HEX 24 1809 45000
11809 M20x2,5 35 250,00 120 22 288,00 HEX 24 1905 45000
11853 M24x3 35 100,00 120 22 138,00 20 1732 50000
11857 M24x3 35 150,00 120 22 188,00 20 1869 50000
11861 M24x3 35 200,00 120 22 238,00 20 2017 50000
11857/P2 M24x2 35 150,00 120 22 188,00 20 1869 50000
11861/P2 M24x2 35 200,00 120 22 238,00 20 2017 50000
11865 M24x3 35 250,00 120 22 288,00 20 2154 50000
11909 M30x3,5 36 100,00 120 22 139,00 26 1908 60000
11913 M30x3,5 36 150,00 120 22 189,00 26 2141 60000
11917 M30x3,5 36 200,00 120 22 239,00 26 2381 60000
11913/P2 M30x2 36 150,00 120 22 189,00 26 2141 60000
11917/P2 M30x2 36 200,00 120 22 239,00 26 2381 60000
11921 M30x3,5 36 250,00 120 22 289,00 26 2607 60000
PDF

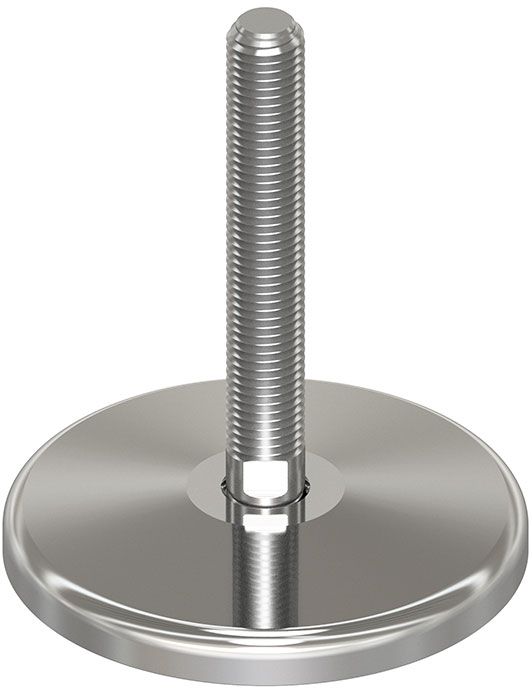

Ø 159

CODE SIZE (F) FLOOR DISTANCE (A) STEM LENGTH (B) BASE SIZE (D) BASE LENGTH (G) TOTAL HEIGHT REGULATION (SW) WEIGHT (gr) LOAD (Newton)
11965 M20x2,5 36 100,00 159 23 139,00 20 3037 50000
11969 M20x2,5 36 150,00 159 23 189,00 20 3137 50000
11973 M20x2,5 36 200,00 159 23 239,00 20 3242 50000
11977 M20x2,5 36 250,00 159 23 289,00 20 3338 50000
12021 M24x3 36 100,00 159 23 139,00 20 3165 60000
12025 M24x3 36 150,00 159 23 189,00 20 3302 60000
12029 M24x3 36 200,00 159 23 239,00 20 3450 60000
12025/P2 M24x2 36 150,00 159 23 189,00 20 3302 60000
12029/P2 M24x2 36 200,00 159 23 239,00 20 3450 60000
12033 M24x3 36 250,00 159 23 289,00 20 3472 60000
12077 M30x3,5 37 100,00 159 23 140,00 26 3341 70000
12081 M30x3,5 37 150,00 159 23 190,00 26 3574 70000
12085 M30x3,5 37 200,00 159 23 240,00 26 3814 70000
12081/P2 M30x2 37 150,00 159 23 190,00 26 3574 70000
12085/P2 M30x2 37 200,00 159 23 240,00 26 3814 70000
12089 M30x3,5 37 250,00 159 23 290,00 26 4040 70000
PDF
