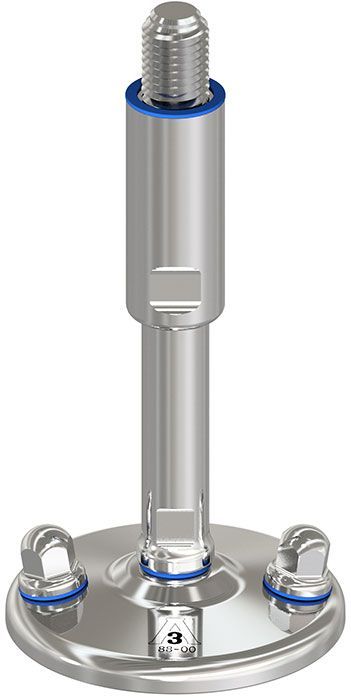

Solid Bolt/Down Base
TEKNO-HYGIeNIC
• Levelling system designed for the dairy, pharmaceutical and food industry, in compliance with the
strictest hygienic standards, made in accordance with 3-A regulations.
Ø 100/120

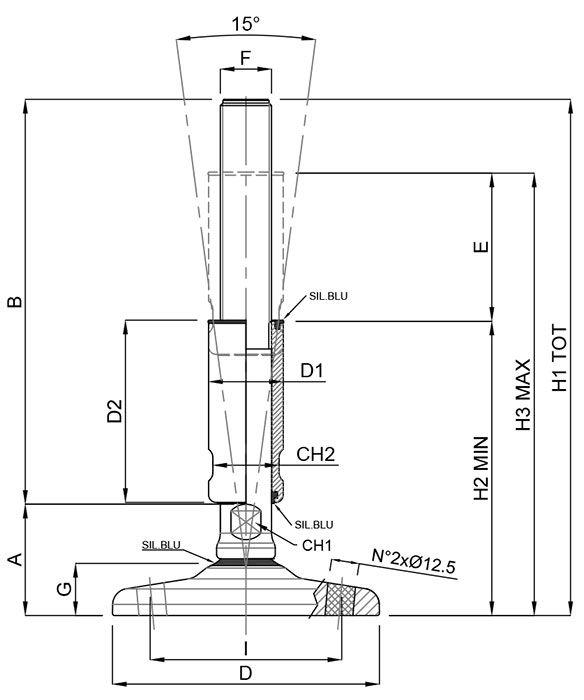

| CODE | SIZE (F) | FLOOR DISTANC (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING Ø (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (D3) | HOLES DISTANCE (I) | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27360F/3A | M16x2 | 49 | 140,00 | 100 | 24x60 | 189,00 | 110 | 155 | 70 | 13/20 | 997 | 40000 |
| 27362F/3A | M16x2 | 49 | 190,00 | 100 | 24x85 | 239,00 | 135 | 205 | 70 | 13/20 | 1117 | 40000 |
| 27364F/3A | M20x2,5 | 49 | 140,00 | 100 | 30x60 | 189,00 | 110 | 155 | 70 | 17/26 | 1191 | 45000 |
| 27366F/3A | M20x2,5 | 49 | 190,00 | 100 | 30x85 | 239,00 | 135 | 205 | 70 | 17/26 | 1371 | 45000 |
| 27368F/3A | M24x3 | 49 | 140,00 | 100 | 35x60 | 189,00 | 110 | 155 | 70 | 20/30 | 1389 | 55000 |
| 27370F/3A | M24x3 | 49 | 190,00 | 100 | 35x85 | 239,00 | 135 | 205 | 70 | 20/30 | 1639 | 55000 |
| 27372F/3A | M30x3,5 | 49 | 135,00 | 100 | 42x60 | 184,00 | 110 | 150 | 70 | 26/36 | 1731 | 60000 |
| 27374F/3A | M30x3,5 | 49 | 185,00 | 100 | 42x85 | 234,00 | 135 | 200 | 70 | 26/36 | 2108 | 60000 |
| 27380F/3A | M16x2 | 51 | 140,00 | 120 | 24x60 | 191,00 | 112 | 157 | 86 | 13/20 | 1507 | 40000 |
| 27382F/3A | M16x2 | 51 | 190,00 | 120 | 24x85 | 241,00 | 137 | 207 | 86 | 13/20 | 1623 | 40000 |
| 27384F/3A | M20x2,5 | 51 | 140,00 | 120 | 30x60 | 191,00 | 112 | 157 | 86 | 17/26 | 1700 | 45000 |
| 27386F/3A | M20x2,5 | 51 | 190,00 | 120 | 30x85 | 241,00 | 137 | 207 | 86 | 17/26 | 1879 | 45000 |
| 27388F/3A | M24x3 | 51 | 140,00 | 120 | 35x60 | 191,00 | 112 | 157 | 86 | 20/30 | 1895 | 55000 |
| 27390F/3A | M24x3 | 51 | 190,00 | 120 | 35x85 | 241,00 | 137 | 207 | 86 | 20/30 | 2149 | 55000 |
| 27392F/3A | M30x3,5 | 51 | 135,00 | 120 | 42x60 | 186,00 | 112 | 152 | 86 | 26/36 | 2243 | 60000 |
| 27394F/3A | M30x3,5 | 51 | 185,00 | 120 | 42x85 | 236,00 | 137 | 202 | 86 | 26/36 | 2618 | 60000 |
| 27396F/3A | M30x3,5 | 51 | 235,00 | 120 | 42x85 | 286,00 | 187 | 252 | 86 | 26/36 | 2898 | 60000 |
| 27398F/3A | M36x4 | 51 | 135,00 | 120 | 50x60 | 186,00 | 112 | 152 | 86 | 32/45 | 2711 | 80000 |
| 27400F/3A | M36x4 | 51 | 185,00 | 120 | 50x85 | 236,00 | 137 | 202 | 86 | 32/45 | 3259 | 80000 |
| 27402F/3A | M36x4 | 51 | 235,00 | 120 | 50x85 | 286,00 | 187 | 252 | 86 | 32/45 | 3658 | 80000 |
Ø 150
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BUSHING Ø (D1) | TOTAL HEIGHT | MIN HEIGHT (H2) | MAX HEIGHT (H3) | HOLES DISTANCE (I) | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27410F/3A | M20x2,5 | 54 | 140,00 | 150 | 30x60 | 194,00 | 115 | 160 | 110 | 17/26 | 2519 | 45000 |
| 27412F/3A | M20x2,5 | 54 | 190,00 | 150 | 30x85 | 244,00 | 140 | 210 | 110 | 17/26 | 2713 | 45000 |
| 27414F/3A | M24x3 | 54 | 140,00 | 150 | 35x60 | 194,00 | 115 | 160 | 110 | 20/30 | 2719 | 55000 |
| 27416F/3A | M24x3 | 54 | 190,00 | 150 | 35x85 | 244,00 | 140 | 210 | 110 | 20/30 | 2970 | 55000 |
| 27418F/3A | M30x3,5 | 54 | 135,00 | 150 | 42x60 | 189,00 | 115 | 155 | 110 | 26/36 | 3066 | 60000 |
| 27420F/3A | M30x3,5 | 54 | 185,00 | 150 | 42x85 | 239,00 | 140 | 205 | 110 | 26/36 | 3438 | 60000 |
| 27422F/3A | M30x3,5 | 54 | 235,00 | 150 | 42x85 | 289,00 | 190 | 255 | 110 | 26/36 | 3717 | 60000 |
| 27424F/3A | M36x4 | 54 | 135,00 | 150 | 50x60 | 189,00 | 115 | 155 | 110 | 32/45 | 3530 | 80000 |
| 27426F/3A | M36x4 | 54 | 185,00 | 150 | 50x85 | 239,00 | 140 | 205 | 110 | 32/45 | 4080 | 80000 |
| 27428F/3A | M36x4 | 54 | 235,00 | 150 | 50x85 | 289,00 | 190 | 255 | 110 | 32/45 | 4478 | 80000 |
