Mounting Bracket

INOX ACCESSORIES

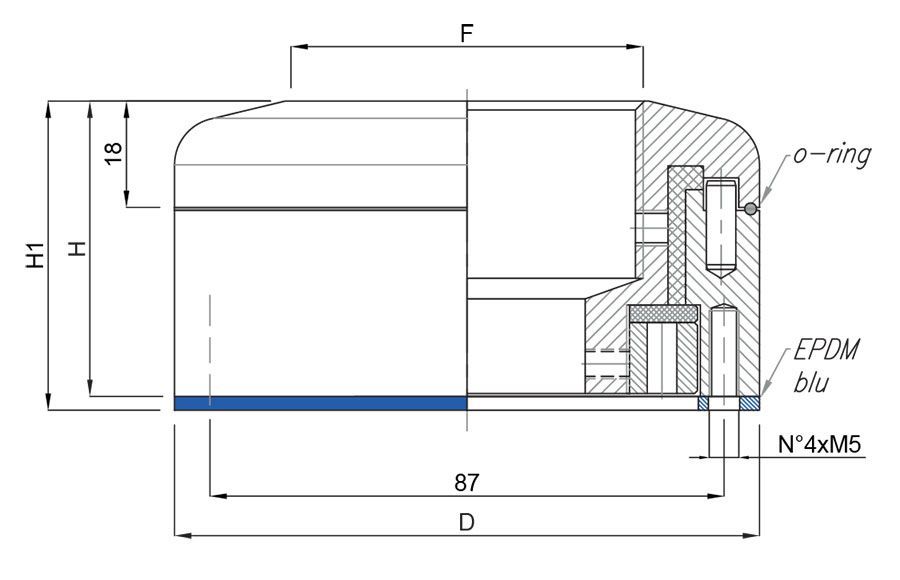

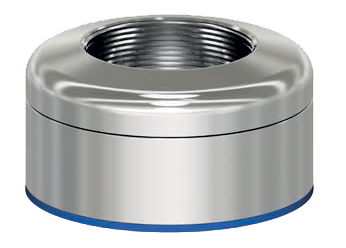

Steel Rotating Mounting Bracket with EPDM blue Gasket, Rotation 90°, 180°, 270°, 360°

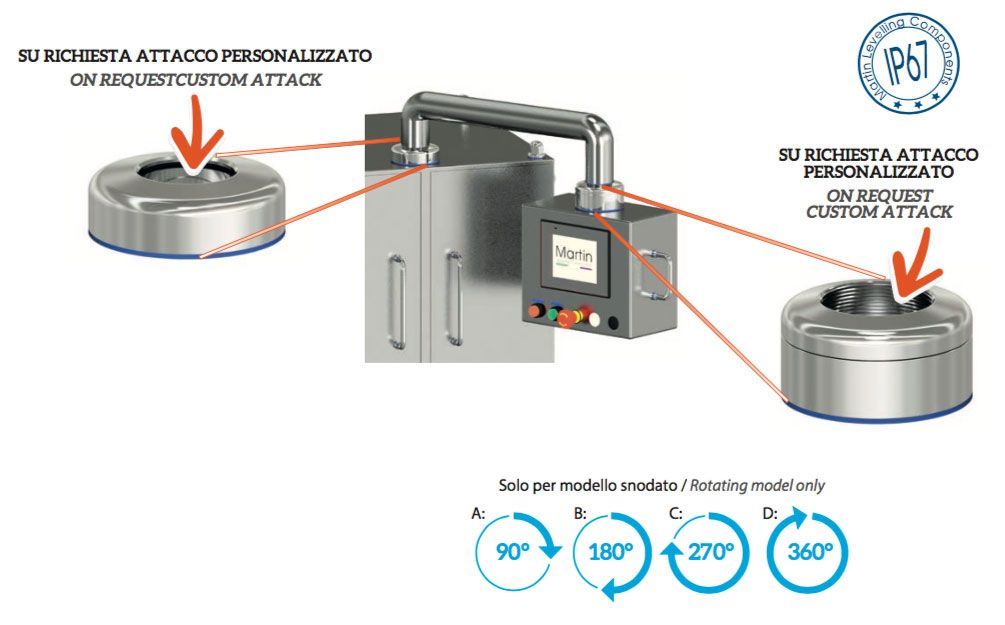

On request custom attack

• Ease to tighten/loosen • Anti-galling system • 100% resistance to corrosion & chemical agents • High resistance to breakage

• Compliance to teh EG Nr 1935/2004 • Possibility to adjust the rotation stiffness • Rotation 90° – 180° – 270° – 360° – custom

• Materials: AISI 304 / FDA NBR, EPDM or Silicone • AISI 316 on request

For the rotating model: add “… /A, /B, /C, /D” to the standard code, according to the rotation needed: Example – 270°: 60200/G2/C
