Mini Line - Zinc Plated Feet
PLASTIC LINE
• Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office.
We cannot accept responsibility for mounts that have been tampered or modified.
* On request also available with stainless steel stem. Minimum 500pcs.
Ø 46/50 TILTED STEM,
GALVANIZED STEEL SCREW

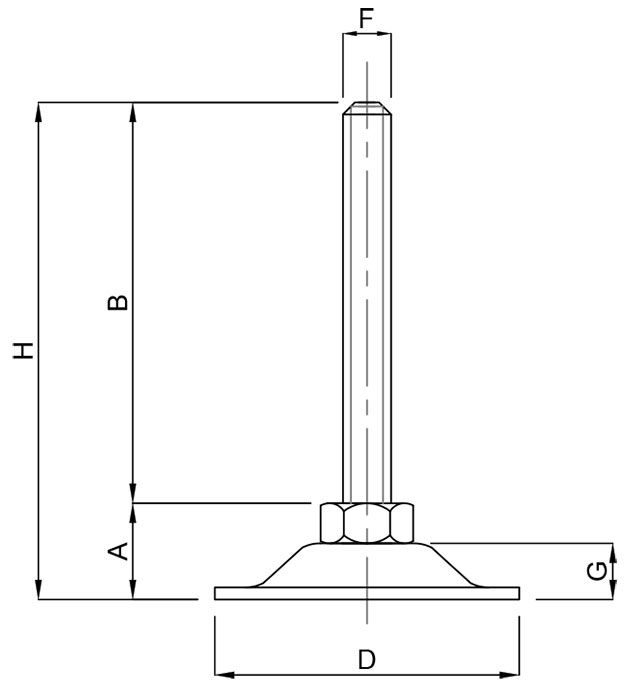

| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | LOAD (Newton) |
|---|---|---|---|---|---|
| 31200 | M10x1,5 | 40,00 | 46 | 53,50 | 5500 |
| 31210 | M10x1,5 | 60,00 | 46 | 73,50 | 5500 |
| 31250 | M8x1,25 | 50,00 | 50 | 61,50 | 5000 |
