Mini Line - Plastic Feet

PLASTIC LINE

• Load values mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.

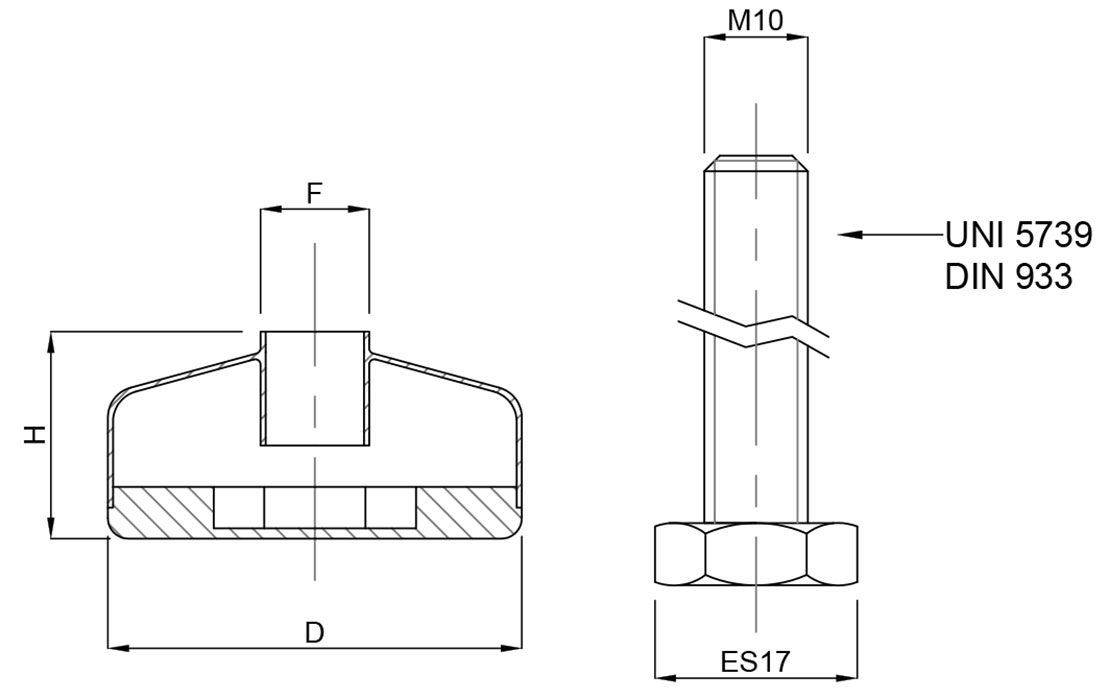

* Ø 40: MOQ for PA base 1.000pcs · PA Base with socket for screw SW17 – DIN 933/UNI 5739 • Screw on request

** Chromate case available, sligthly articulated galvanized steel screw

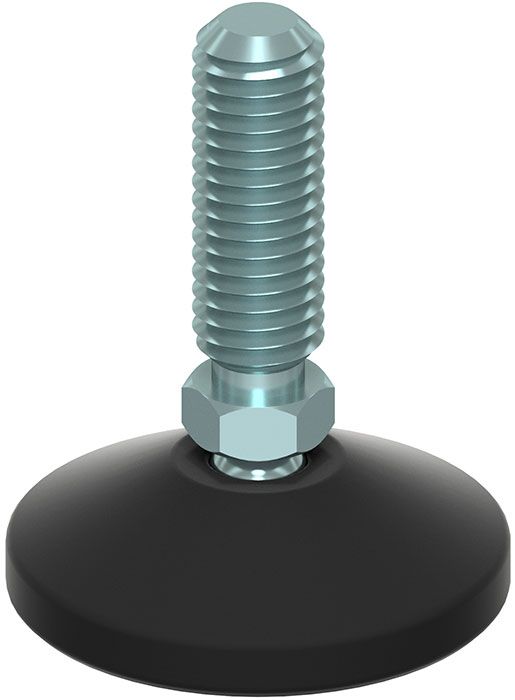

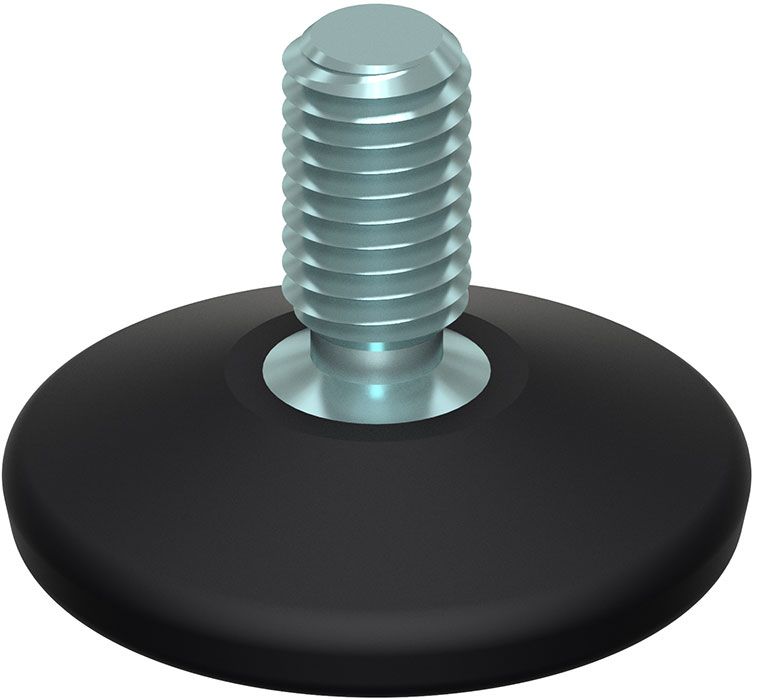

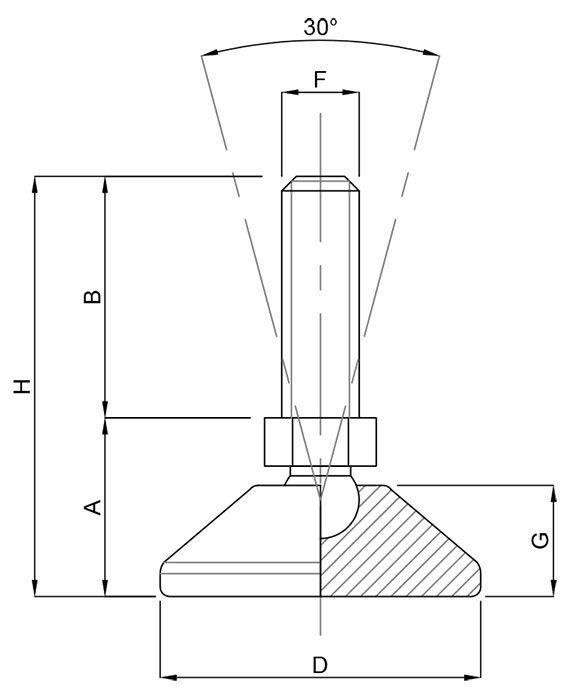

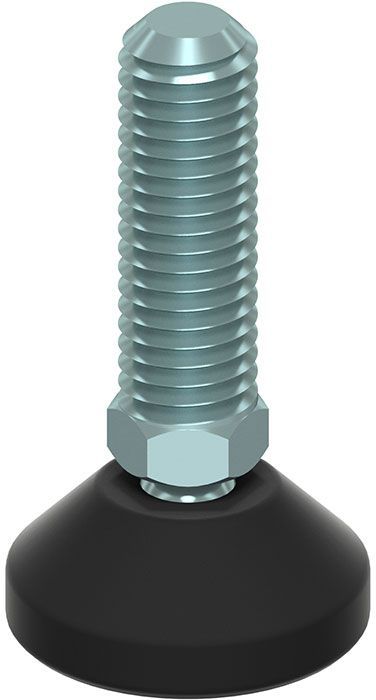

Ø 30/40/50/60 PA BASE,

GALVANIZED STEEL SCREW

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30100	M8x1,25	20,00	30	31,50	2000
30110	M10x1,5	20,00	30	31,50	2000
30120	M8x1,25	25,00	40	39,50	2500
30130	M10x1,5	25,00	40	39,50	2500
30140	M10x1,5	35,00	50	52,00	3500
30150	M12x1,75	35,00	50	52,00	3500
30160	M12x1,75	35,00	60	52,00	4000

PDF

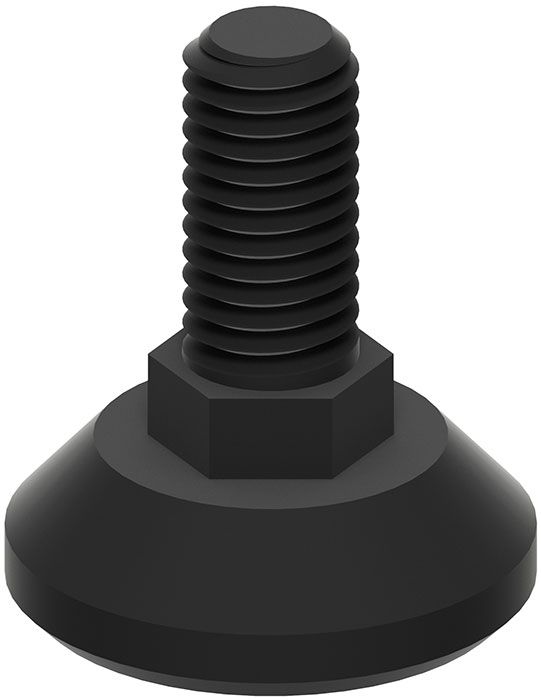

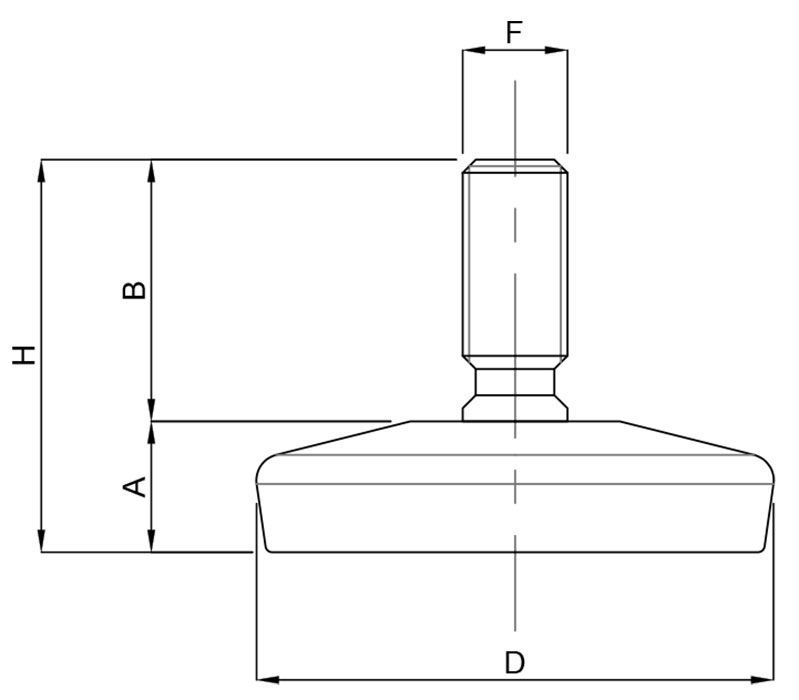

POLYAMIDE BASE AND SCREW

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30200	M10x1,5	20,00	30	35,00	800

PDF

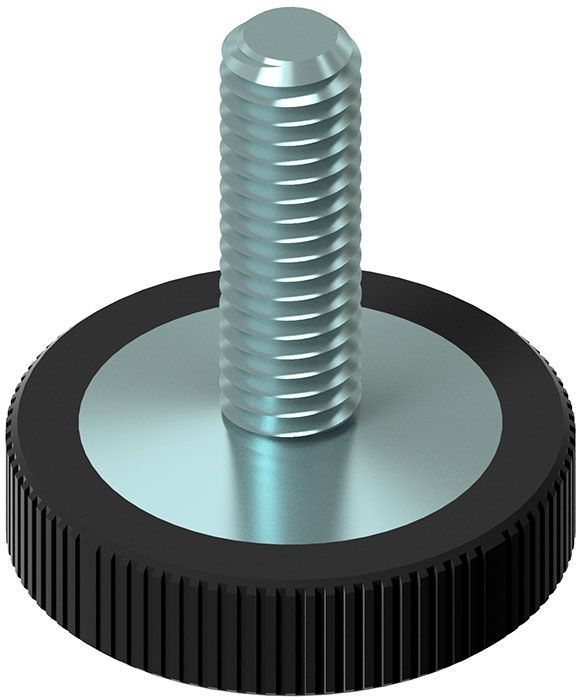

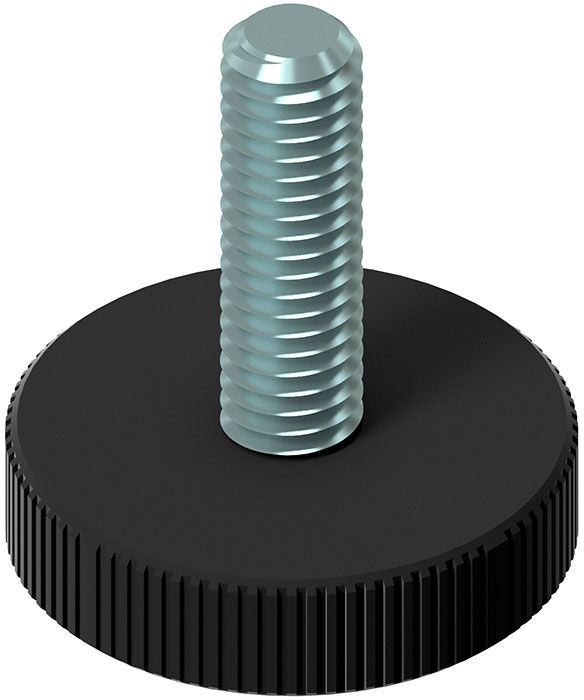

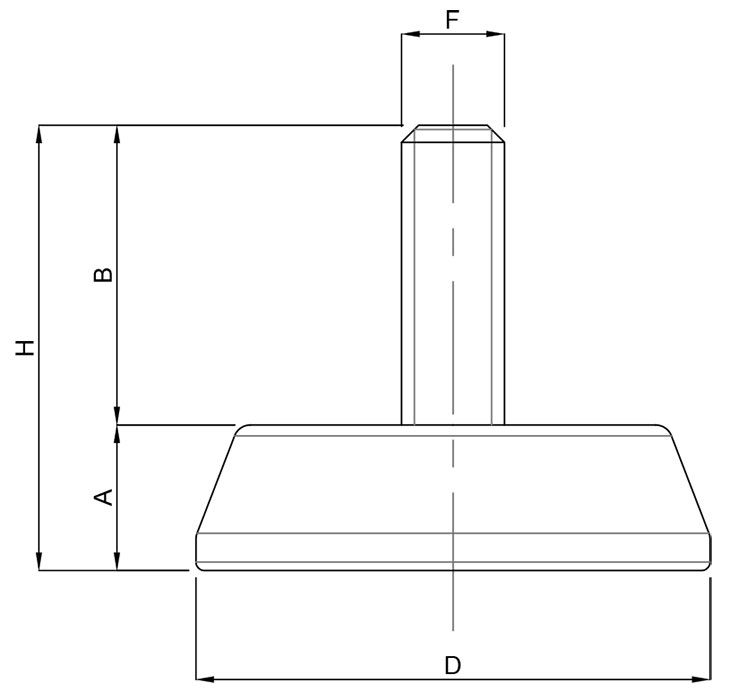

Ø 20/25/28/32/35 PA, FIX STEM

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30100	M8x1,25	20,00	30	31,50	2000
30110	M10x1,5	20,00	30	31,50	2000
30120	M8x1,25	25,00	40	39,50	2500
30130	M10x1,5	25,00	40	39,50	2500
30140	M10x1,5	35,00	50	52,00	3500
30150	M12x1,75	35,00	50	52,00	3500
30160	M12x1,75	35,00	60	52,00	4000

PDF

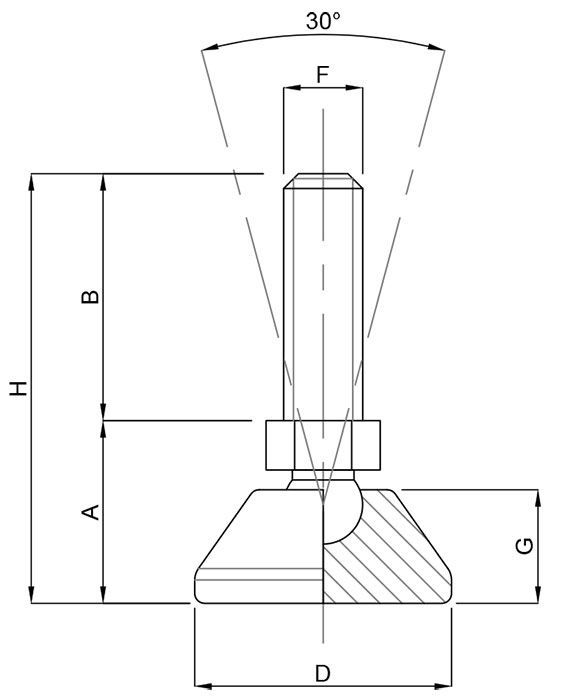

Ø 20/28/32 PA, GALVANIZED STEEL SCREW

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30300	M6x1	20,00	20	26,50	1500
30310	M8x1,25	22,00	28	30,00	2000
30320	M10x1,5	25,00	32	34,50	2500

PDF

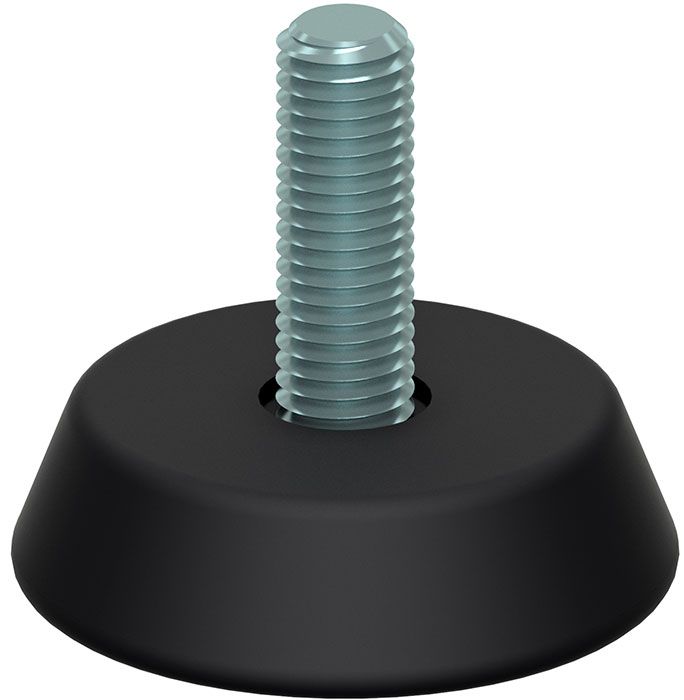

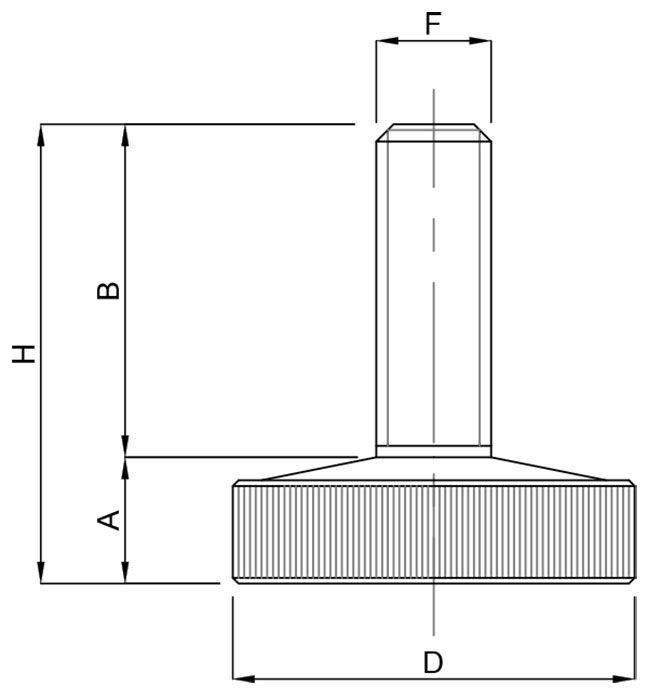

Ø 40 PA GALVANIZED STEEL SCREW

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30500	M8x1,25	20,00	40	30,00	3000
30510	M10x1,5	20,00	40	30,00	3000

PDF

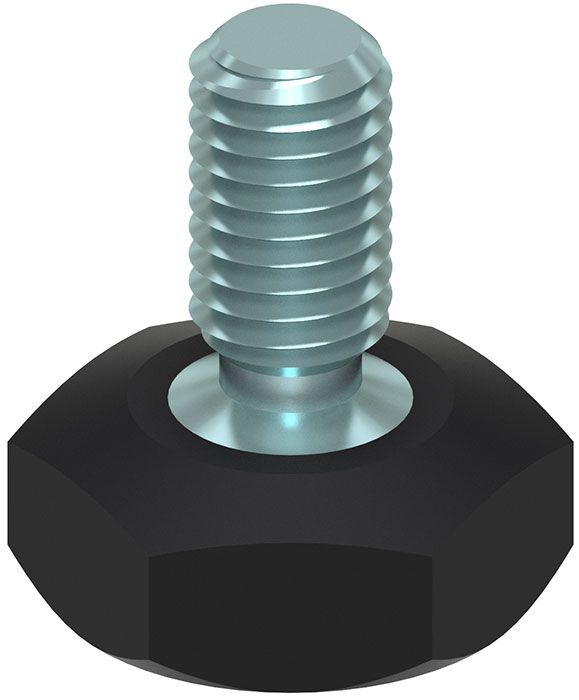

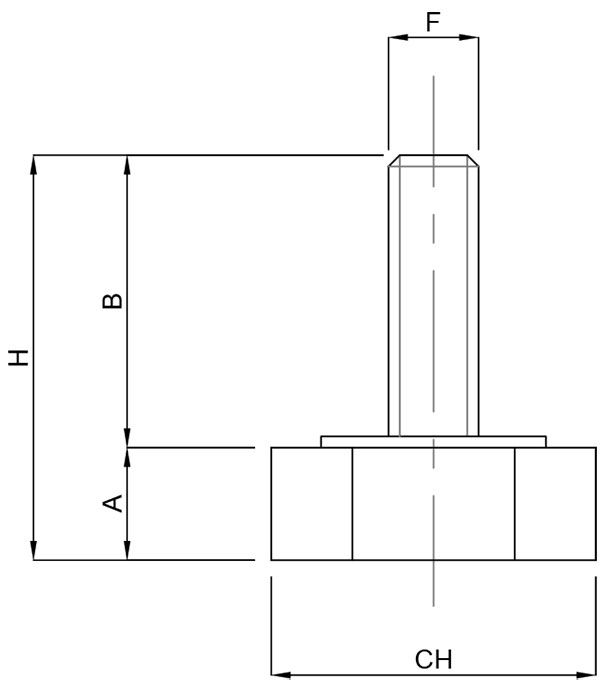

Ø 25 HEXAGONAL PA,

GALVANIZED STEEL SCREW

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30600	M8X1,25	25,00	25	33,00	2500
30610	M8X1,25	35,00	25	43,00	2500
30620	M10x1,25	25,00	25	33	2500
30630	M8x1,25	35,00	25	43,00	2500

PDF

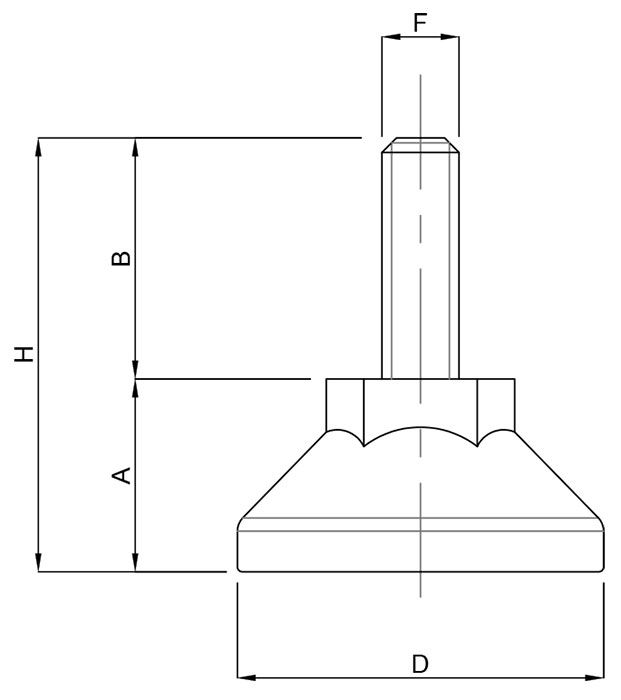

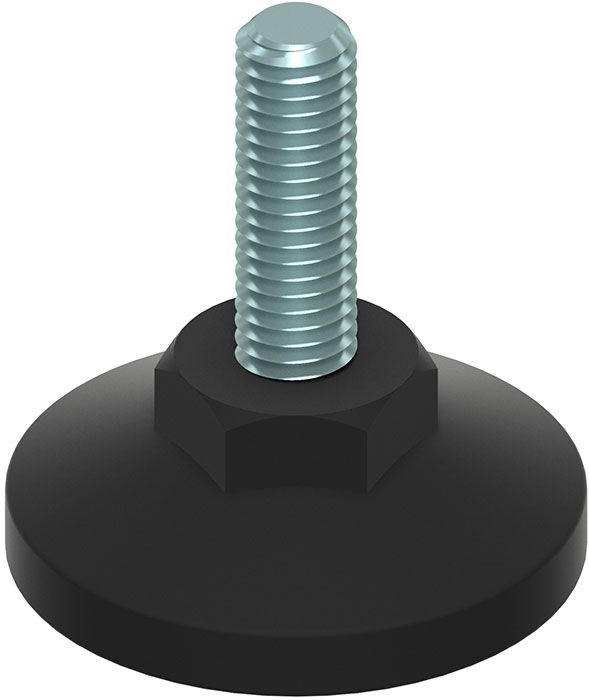

Ø 38 PA BASE WITH HEXAGONAL SEAT,

FIX STEM

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30700	M8x1,25	25,00	38	40,00	2500

PDF

Ø 40 WITH SOCKET FOR SCREW SW17*

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30800	M10x1,5	FEMALE	40	20,00	3000

PDF

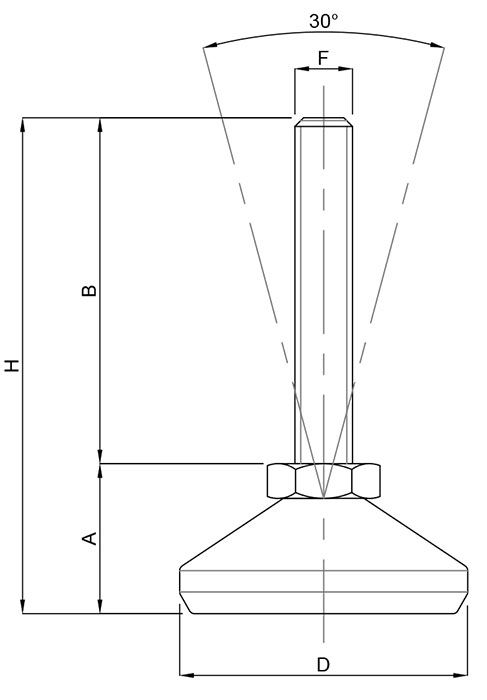

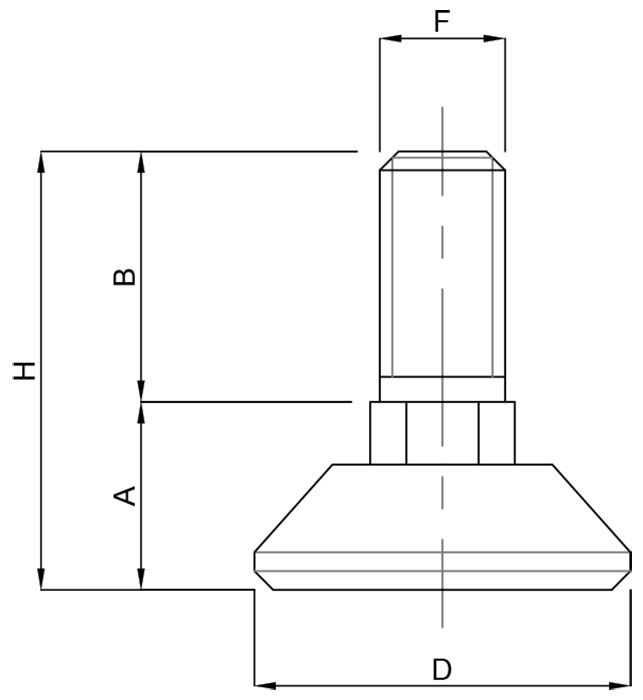

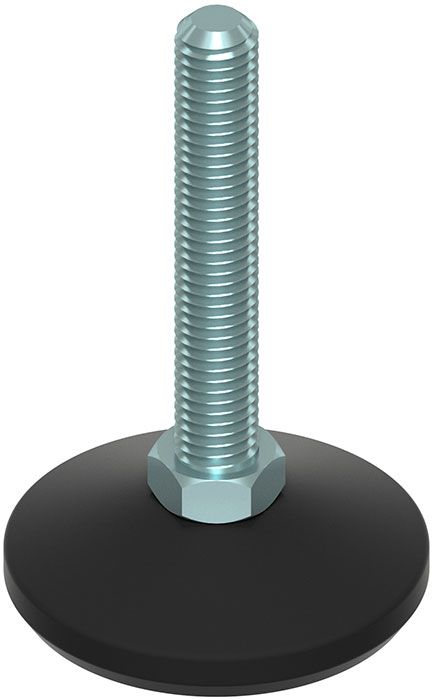

Ø 40/50 TILTED STEM**

CODE	SIZE (F)	STEM LENGTH (B)	BASE SIZE (D)	TOTAL HEIGHT	LOAD (Newton)
30900	M10x1,5	40,00	40	58,00	3500
30910	M10x1,5	40,00	40	58,00	3500
30920	M10x1,5	60,00	40	78,00	3500
30930	M10x1,5	60,00	40	78,00	3500
30940	M10x1,5	40,00	50	60,00	4500
30950	M10x1,5	40,00	50	60,00	4500
30960	M10x1,5	60,00	50	80,00	4500
30970	M10x1,5	60,00	50	80,00	4500
