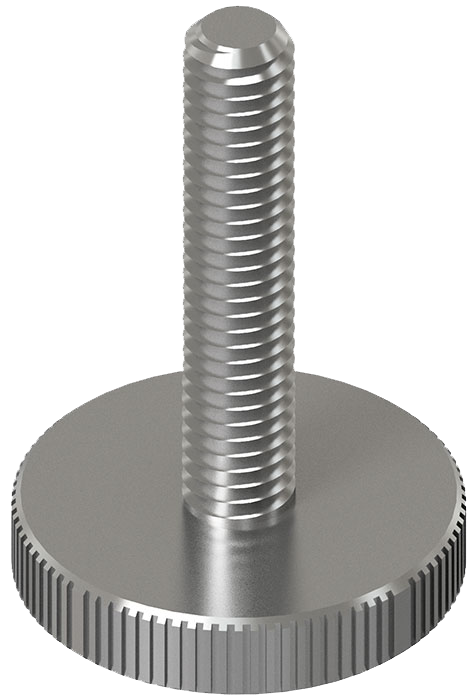

Medium Load - Solid knurled Base - Fix Stem
STAINLESS steel line
• Material: Stainless steel base 1.4301 (1.4401 on request). On request non-skit plate in NBR rubber 70 shore is available. Stainless steel screw in 1.4301. The levelling element could be supplied, on request, with steel nut.
• Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic load these values should be reduced. For the further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.
Ø 24/30

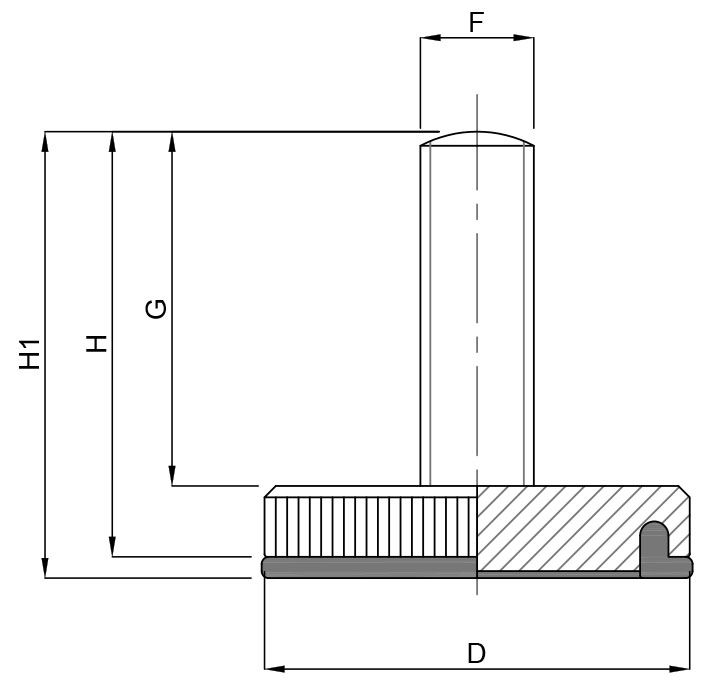

| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 3017 | M5x0,8 | 10,00 | 20 | 10 | 14,00 | 18 | 5000 |
| 3018 | M5x0,8 | 12,00 | 20 | 12 | 16,00 | 18 | 5000 |
| 3019 | M5x0,8 | 16,00 | 20 | 16 | 20,00 | 18 | 5000 |
| 3020 | M5x0,8 | 20,00 | 20 | 20 | 24,00 | 18 | 5000 |
| 3021 | M6x1 | 12,00 | 24 | 12 | 17,00 | 21 | 5000 |
| 3022 | M6x1 | 16,00 | 24 | 16 | 21,00 | 21 | 5000 |
| 3023 | M6x1 | 20,00 | 24 | 20 | 25,00 | 21 | 5000 |
| 3024 | M6x1 | 25,00 | 24 | 25 | 30,00 | 21 | 5000 |
| 3025 | M6x1 | 30,00 | 24 | 30 | 35,00 | 21 | 5000 |
| 3026 | M8x1,25 | 12,00 | 30 | 12 | 18,00 | 23 | 6000 |
| 3027 | M8x1,25 | 16,00 | 30 | 16 | 22,00 | 23 | 6000 |
| 3028 | M8x1,25 | 20,00 | 30 | 20 | 26,00 | 23 | 6000 |
| 3029 | M8x1,25 | 25,00 | 30 | 25 | 31,00 | 23 | 6000 |
| 3030 | M8x1,25 | 30,00 | 30 | 30 | 36,00 | 23 | 6000 |
Ø 24/30 – ANTISLIP
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 3021/G | M6x1 | 12,00 | 24 | 12 | 17,50 | - | 5000 |
| 3022/G | M6x1 | 16,00 | 24 | 16 | 21,50 | - | 5000 |
| 3023/G | M6x1 | 20,00 | 24 | 20 | 25,50 | - | 5000 |
| 3024/G | M6x1 | 25,00 | 24 | 25 | 30,50 | - | 5000 |
| 3025/G | M6x1 | 30,00 | 24 | 30 | 35,50 | - | 5000 |
| 3026/G | M8x1,25 | 12,00 | 30 | 12 | 18,50 | - | 6000 |
| 3027/G | M8x1,25 | 16,00 | 30 | 16 | 22,50 | - | 6000 |
| 3028/G | M8x1,25 | 20,00 | 30 | 20 | 26,50 | - | 6000 |
| 3029/G | M8x1,25 | 25,00 | 30 | 25 | 31,50 | - | 6000 |
| 3030/G | M8x1,25 | 30,00 | 30 | 30 | 36,50 | - | 6000 |
