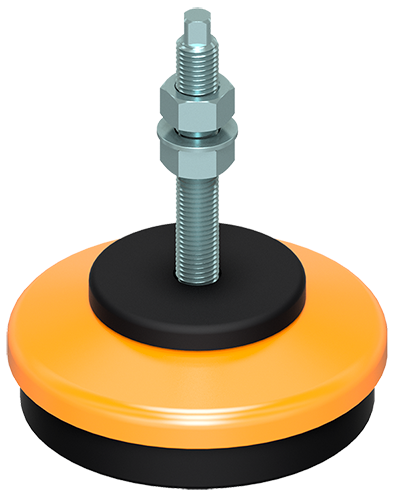

Tekno-Plus

ANTI-VIBRATION LINE

Tekno-plus system guarantees a precise and easy regulation of the anti-vibration mount: one has only to act on the square end of the screw, blocking the jam-nut.


• Application: machine tools; presses; injection molding machines; shearing machines


• Material: painted steel base; galvanized steel screw. Pad: rubber NBR 75 shore (for higher loads, an anti-vibration

pad 90 shore could be also supplied.)



• The leveling is already provided with 2 nuts, 1 plain washer and 1 toothed washer

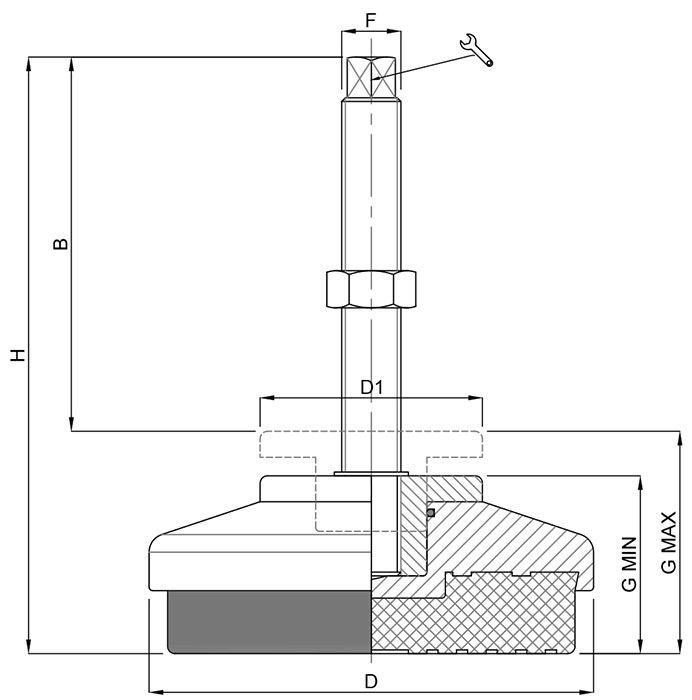

SOLID ADJUSTABLE BASE, FIX STEM

CODE SIZE (F) BASE SIZE (D) TOTAL WEIGHT REGULATION (SW) LOAD (Newton) RUBBER
14050 M14x2 104 153,00 TOP SQUARE 9 6000/11000 FDA Black NBR 70 Shore
14060 M16x2 123 153,00 TOP SQUARE 10 7000/13000 FDA Black NBR 70 Shore
14070 M16x2 140 165,00 TOP SQUARE 10 8000/16000 FDA Black NBR 70 Shore
14080 M20x2,5 160 165,00 TOP SQUARE 13 12000/25000 FDA Black NBR 70 Shore
14090 M20x2,5 180 165,00 TOP SQUARE 13 17000/35000 FDA Black NBR 70 Shore
