Mini Line - Chrome Plated Feet

chrome plated feet

A bunch of different types of nuts and bolts on a white background

• Load values above mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office.

We cannot accept responsibility for mounts that have been tampered or modified.


* On request also available with stainless steel stem. Minimum 500pcs.

POLYAMIDE BASE WITH CHROMATE CASE

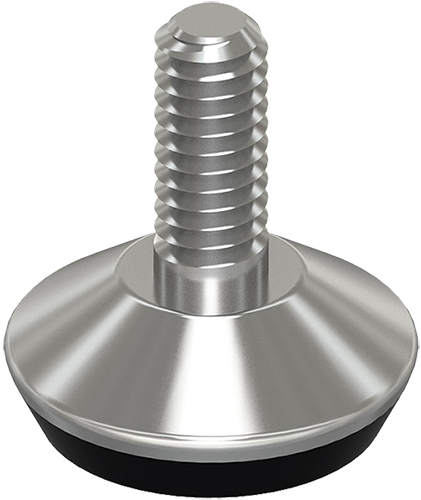

A stainless steel screw with a black rubber pad on a white background.
A black and white drawing of a stove with measurements.
CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT LOAD (Newton)
30000 M6x1 13,00 20 20,00 1000
30010 M8x1,25 20,00 25 30,00 1500
30020 M10x1,5 20,00 25 30,00 1500
30030 M8x1,25 20,00 30 31,50 2000
30040 M10x1,5 20,00 30 31,50 2000
30050 M8x1,25 25,00 40 38,50 2800
30060 M10x1,5 25,00 40 38,50 2800
30070 M10x1,5 30,00 50 45,50 3800
30080 M12x1,75 35,00 50 50,50 3800
