Hygienic Vulcanized - 10°
STAINLESS STEEL LINE
• Hex 14: Hexagonal wrench – code/P2 = Available with Thin pitch thread.

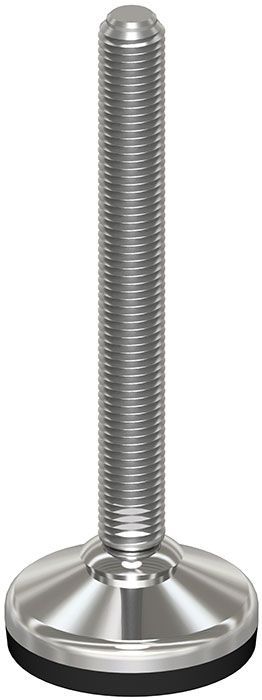

Ø 50 BLACK NBR RUBBER

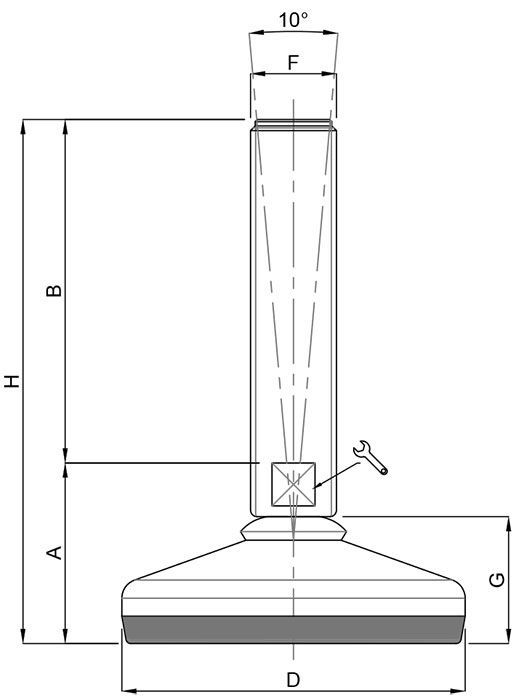

| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 24500R | M10x1,5 | 32 | 50,00 | 50 | 24 | 82,00 | HEX 14 | 122 | 4000 |
| 24502R | M10x1,5 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 130 | 4000 |
| 24504R | M10x1,5 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 145 | 4000 |
| 24506R | M10x1,5 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 158 | 4000 |
| 24507R/BF | M10x1,5 | 35 | 150,00 | 50 | 24 | 185,00 | 8 | 4000 | |
| 24508R/BF | M10x1,5 | 35 | 175,00 | 50 | 24 | 210,00 | 8 | 4000 | |
| 24509R/BF | M10x1,5 | 35 | 200,00 | 50 | 24 | 235,00 | 8 | 4000 | |
| 24600R | M12x1,75 | 32 | 50,00 | 50 | 24 | 82,00 | HEX 14 | 133 | 4000 |
| 24602R | M12x1,75 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 150 | 4000 |
| 24604R | M12x1,75 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 165 | 4000 |
| 24606R | M12x1,75 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 180 | 4000 |
| 24607R/BF | M12x1,75 | 35 | 150,00 | 50 | 24 | 185,00 | 10 | 4000 | |
| 24608R/BF | M12x1,75 | 35 | 175,00 | 50 | 24 | 210,00 | 10 | 4000 | |
| 24609R/BF | M12x1,75 | 35 | 200,00 | 50 | 24 | 235,00 | 10 | 4000 | |
| 24700R | M14x2 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 170 | 4000 |
| 24702R | M14x2 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 193 | 4000 |
| 24704R | M14x2 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 215 | 4000 |
| 24706R | M14x2 | 32 | 150,00 | 50 | 24 | 182,00 | HEX 14 | 243 | 4000 |
| 24708R | M14x2 | 32 | 175,00 | 50 | 24 | 207,00 | HEX 14 | 260 | 4000 |
| 24800R | M16x2 | 35 | 75,00 | 50 | 24 | 110,00 | 13 | 200 | 4000 |
| 24802R | M16x2 | 35 | 100,00 | 50 | 24 | 135,00 | 13 | 231 | 4000 |
| 24804R | M16x2 | 35 | 125,00 | 50 | 24 | 160,00 | 13 | 263 | 4000 |
| 24806R | M16x2 | 35 | 150,00 | 50 | 24 | 185,00 | 13 | 299 | 4000 |
| 24808R | M16x2 | 35 | 175,00 | 50 | 24 | 210,00 | 13 | 332 | 4000 |
| 24810R | M16x2 | 35 | 200,00 | 50 | 24 | 235,00 | 13 | 365 | 4000 |

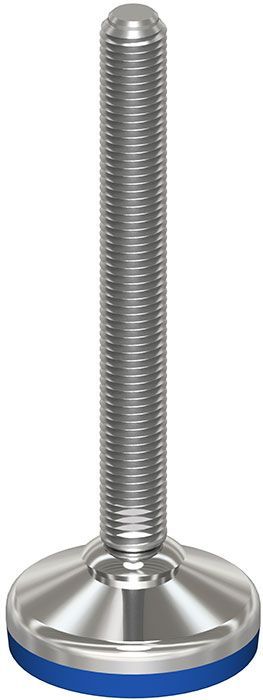

Ø 50 – BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
| 24507RB/BF | M10x1,5 | 35 | 150,00 | 50 | 24 | 185,00 | 8 | 4000 | |
| 24508RB/BF | M10x1,5 | 35 | 175,00 | 50 | 24 | 210,00 | 8 | 4000 | |
| 24509RB/BF | M10x1,5 | 35 | 200,00 | 50 | 24 | 235,00 | 8 | 4000 | |
| 24500RB | M10x1,5 | 32 | 50,00 | 50 | 24 | 82,00 | HEX 14 | 122 | 4000 |
| 24502RB | M10x1,5 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 130 | 4000 |
| 24504RB | M10x1,5 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 145 | 4000 |
| 24506RB | M10x1,5 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 158 | 4000 |
| 24600RB | M12x1,75 | 32 | 50,00 | 50 | 24 | 82,00 | HEX 14 | 133 | 4000 |
| 24602RB | M12x1,75 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 150 | 4000 |
| 24604RB | M12x1,75 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 165 | 4000 |
| 24606RB | M12x1,75 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 180 | 4000 |
| 24607RB/BF | M12x1,75 | 35 | 150,00 | 50 | 24 | 185,00 | 10 | 4000 | |
| 24608RB/BF | M12x1,75 | 35 | 175,00 | 50 | 24 | 210,00 | 10 | 4000 | |
| 24609RB/BF | M12x1,75 | 35 | 200,00 | 50 | 24 | 235,00 | 10 | 4000 | |
| 24700RB | M14x2 | 32 | 75,00 | 50 | 24 | 107,00 | HEX 14 | 170 | 4000 |
| 24702RB | M14x2 | 32 | 100,00 | 50 | 24 | 132,00 | HEX 14 | 193 | 4000 |
| 24704RB | M14x2 | 32 | 125,00 | 50 | 24 | 157,00 | HEX 14 | 215 | 4000 |
| 24706RB | M14x2 | 32 | 150,00 | 50 | 24 | 182,00 | HEX 14 | 243 | 4000 |
| 24708RB | M14x2 | 32 | 175,00 | 50 | 24 | 207,00 | HEX 14 | 260 | 4000 |
| 24800RB | M16x2 | 35 | 75,00 | 50 | 24 | 110,00 | 13 | 200 | 4000 |
| 24802RB | M16x2 | 35 | 100,00 | 50 | 24 | 135,00 | 13 | 231 | 4000 |
| 24804RB | M16x2 | 35 | 125,00 | 50 | 24 | 160,00 | 13 | 263 | 4000 |
| 24806RB | M16x2 | 35 | 150,00 | 50 | 24 | 185,00 | 13 | 299 | 4000 |
| 24808RB | M16x2 | 35 | 175,00 | 50 | 24 | 210,00 | 13 | 332 | 4000 |
| 24810RB | M16x2 | 35 | 200,00 | 50 | 24 | 235,00 | 13 | 365 | 4000 |

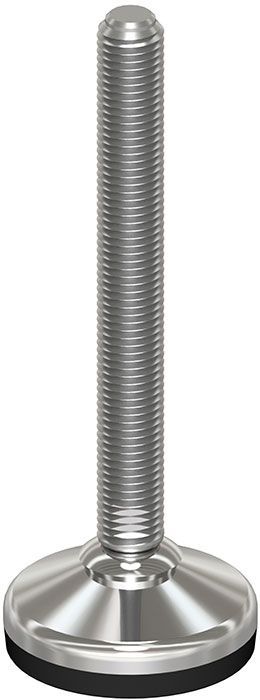

Ø 60 BLACK NBR RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 24510R | M10x1,5 | 35 | 50,00 | 60 | 27 | 85,00 | HEX 14 | 161 | 7000 |
| 24512R | M10x1,5 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 169 | 7000 |
| 24514R | M10x1,5 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 184 | 7000 |
| 24516R | M10x1,5 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 197 | 7000 |
| 24518R/BF | M10x1,5 | 40 | 150,00 | 60 | 27 | 190,00 | 8 | 7000 | |
| 24520R/BF | M10x1,5 | 40 | 175,00 | 60 | 27 | 215,00 | 8 | 7000 | |
| 24522R/BF | M10x1,5 | 40 | 200,00 | 60 | 27 | 240,00 | 8 | 7000 | |
| 24610R | M12x1,75 | 35 | 50,00 | 60 | 27 | 85,00 | HEX 14 | 172 | 7000 |
| 24612R | M12x1,75 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 189 | 7000 |
| 24614R | M12x1,75 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 204 | 7000 |
| 24616R | M12x1,75 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 219 | 7000 |
| 24618R/BF | M12x1,75 | 40 | 150,00 | 60 | 27 | 190,00 | 10 | 7000 | |
| 24620R/BF | M12x1,75 | 40 | 175,00 | 60 | 27 | 215,00 | 10 | 7000 | |
| 24622R/BF | M12x1,75 | 40 | 200,00 | 60 | 27 | 240,00 | 10 | 7000 | |
| 24710R | M14x2 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 209 | 7000 |
| 24712R | M14x2 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 232 | 7000 |
| 24714R | M14x2 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 254 | 7000 |
| 24716R | M14x2 | 35 | 150,00 | 60 | 27 | 185,00 | HEX 14 | 282 | 7000 |
| 24718R | M14x2 | 35 | 175,00 | 60 | 27 | 210,00 | HEX 14 | 299 | 7000 |
| 24814R | M16x2 | 40 | 75,00 | 60 | 27 | 115,00 | 13 | 239 | 7000 |
| 24816R | M16x2 | 40 | 100,00 | 60 | 27 | 140,00 | 13 | 270 | 7000 |
| 24818R | M16x2 | 40 | 125,00 | 60 | 27 | 165,00 | 13 | 302 | 7000 |
| 24820R | M16x2 | 40 | 150,00 | 60 | 27 | 190,00 | 13 | 338 | 7000 |
| 24822R | M16x2 | 40 | 175,00 | 60 | 27 | 215,00 | 13 | 371 | 7000 |
| 24824R | M16x2 | 40 | 200,00 | 60 | 27 | 240,00 | 13 | 404 | 7000 |
| 24910R | M20x2,5 | 40 | 75,00 | 60 | 27 | 115,00 | 17 | 302 | 7000 |
| 24912R | M20x2,5 | 40 | 100,00 | 60 | 27 | 140,00 | 17 | 364 | 7000 |
| 24914R | M20x2,5 | 40 | 125,00 | 60 | 27 | 165,00 | 17 | 410 | 7000 |
| 24916R | M20x2,5 | 40 | 150,00 | 60 | 27 | 190,00 | 17 | 461 | 7000 |
Ø 60 – BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 24510RB | M10x1,5 | 35 | 50,00 | 60 | 27 | 85,00 | HEX 14 | 161 | 7000 |
| 24512RB | M10x1,5 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 169 | 7000 |
| 24514RB | M10x1,5 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 184 | 7000 |
| 24516RB | M10x1,5 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 197 | 7000 |
| 24518RB/BF | M10x1,5 | 40 | 150,00 | 60 | 27 | 190,00 | 8 | 7000 | |
| 24520RB/BF | M10x1,5 | 40 | 175,00 | 60 | 27 | 215,00 | 8 | 7000 | |
| 24522RB/BF | M10x1,5 | 40 | 200,00 | 60 | 27 | 240,00 | 8 | 7000 | |
| 24610RB | M12x1,75 | 35 | 50,00 | 60 | 27 | 85,00 | HEX 14 | 172 | 7000 |
| 24612RB | M12x1,75 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 189 | 7000 |
| 24614RB | M12x1,75 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 204 | 7000 |
| 24616RB | M12x1,75 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 219 | 7000 |
| 24618RB/BF | M12x1,75 | 40 | 150,00 | 60 | 27 | 190,00 | 10 | 7000 | |
| 24620RB/BF | M12x1,75 | 40 | 175,00 | 60 | 27 | 215,00 | 10 | 7000 | |
| 24622RB/BF | M12x1,75 | 40 | 200,00 | 60 | 27 | 240,00 | 10 | 7000 | |
| 24710RB | M14x2 | 35 | 75,00 | 60 | 27 | 110,00 | HEX 14 | 209 | 7000 |
| 24712RB | M14x2 | 35 | 100,00 | 60 | 27 | 135,00 | HEX 14 | 232 | 7000 |
| 24714RB | M14x2 | 35 | 125,00 | 60 | 27 | 160,00 | HEX 14 | 254 | 7000 |
| 24716RB | M14x2 | 35 | 150,00 | 60 | 27 | 185,00 | HEX 14 | 282 | 7000 |
| 24718RB | M14x2 | 35 | 175,00 | 60 | 27 | 210,00 | HEX 14 | 299 | 7000 |
| 24814RB | M16x2 | 40 | 75,00 | 60 | 27 | 115,00 | 13 | 239 | 7000 |
| 24816RB | M16x2 | 40 | 100,00 | 60 | 27 | 140,00 | 13 | 270 | 7000 |
| 24818RB | M16x2 | 40 | 125,00 | 60 | 27 | 165,00 | 13 | 302 | 7000 |
| 24820RB | M16x2 | 40 | 150,00 | 60 | 27 | 190,00 | 13 | 338 | 7000 |
| 24822RB | M16x2 | 40 | 175,00 | 60 | 27 | 215,00 | 13 | 371 | 7000 |
| 24824RB | M16x2 | 40 | 200,00 | 60 | 27 | 240,00 | 13 | 404 | 7000 |
| 24910RB | M20x2,5 | 40 | 75,00 | 60 | 27 | 115,00 | 17 | 302 | 7000 |
| 24912RB | M20x2,5 | 40 | 100,00 | 60 | 27 | 140,00 | 17 | 364 | 7000 |
| 24914RB | M20x2,5 | 40 | 125,00 | 60 | 27 | 165,00 | 17 | 410 | 7000 |
| 24916RB | M20x2,5 | 40 | 150,00 | 60 | 27 | 190,00 | 17 | 461 | 7000 |
Ø 80 BLACK NBR – REGULATION HEX 14
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 24900/10R | M10x1,5 | 37 | 50,00 | 80 | 30 | 87,00 | HEX 14 | 243 | 10000 |
| 25000/10R | M10x1,5 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 251 | 10000 |
| 25002/10R | M10x1,5 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 266 | 10000 |
| 25004/10R | M10x1,5 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 279 | 10000 |
| 24900/12R | M12x1,75 | 37 | 50,00 | 80 | 30 | 87,00 | HEX 14 | 254 | 10000 |
| 25000/12R | M12x1,75 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 271 | 10000 |
| 25002/12R | M12x1,75 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 286 | 10000 |
| 25004/12R | M12x1,75 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 301 | 10000 |
| 25000R | M14x2 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 291 | 10000 |
| 25002R | M14x2 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 314 | 10000 |
| 25004R | M14x2 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 336 | 10000 |
| 25006R | M14x2 | 37 | 150,00 | 80 | 30 | 187,00 | HEX 14 | 364 | 10000 |
| 25008R | M14x2 | 37 | 175,00 | 80 | 30 | 212,00 | HEX 14 | 381 | 10000 |

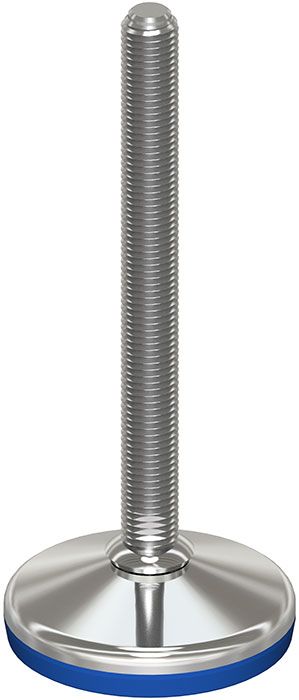

Ø 80 – BLUE EPDM – REGULATION HEX 14
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 24900/10RB | M10x1,5 | 37 | 50,00 | 80 | 30 | 87,00 | HEX 14 | 243 | 10000 |
| 25000/10RB | M10x1,5 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 251 | 10000 |
| 25002/10RB | M10x1,5 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 266 | 10000 |
| 25004/10RB | M10x1,5 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 279 | 10000 |
| 24900/12RB | M12x1,75 | 37 | 50,00 | 80 | 30 | 87,00 | HEX 14 | 254 | 10000 |
| 25000/12RB | M12x1,75 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 271 | 10000 |
| 25002/12RB | M12x1,75 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 286 | 10000 |
| 25004/12RB | M12x1,75 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 301 | 10000 |
| 25000RB | M14x2 | 37 | 75,00 | 80 | 30 | 112,00 | HEX 14 | 291 | 10000 |
| 25002RB | M14x2 | 37 | 100,00 | 80 | 30 | 137,00 | HEX 14 | 314 | 10000 |
| 25004RB | M14x2 | 37 | 125,00 | 80 | 30 | 162,00 | HEX 14 | 336 | 10000 |
| 25006RB | M14x2 | 37 | 150,00 | 80 | 30 | 187,00 | HEX 14 | 364 | 10000 |
| 25008RB | M14x2 | 37 | 175,00 | 80 | 30 | 212,00 | HEX 14 | 381 | 10000 |
Ø 80 BLACK NBR – REGULATION 8/10/13/17/20
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25006/10R/BF | M10x1,5 | 42 | 150,00 | 80 | 30 | 192,00 | 8 | 10000 | |
| 25008/10R/BF | M10x1,5 | 42 | 175,00 | 80 | 30 | 217,00 | 8 | 10000 | |
| 25010/10R/BF | M10x1,5 | 42 | 200,00 | 80 | 30 | 242,00 | 8 | 10000 | |
| 25006/12R/BF | M12x1,75 | 42 | 150,00 | 80 | 30 | 192,00 | 10 | 10000 | |
| 25008/12R/BF | M12x1,75 | 42 | 175,00 | 80 | 30 | 217,00 | 10 | 10000 | |
| 25010/12R/BF | M12x1,75 | 42 | 200,00 | 80 | 30 | 242,00 | 10 | 10000 | |
| 25020R | M16x2 | 42 | 75,00 | 80 | 30 | 117,00 | 13 | 321 | 10000 |
| 25022R | M16x2 | 42 | 100,00 | 80 | 30 | 142,00 | 13 | 352 | 10000 |
| 25024R | M16x2 | 42 | 125,00 | 80 | 30 | 167,00 | 13 | 384 | 10000 |
| 25026R | M16x2 | 42 | 150,00 | 80 | 30 | 192,00 | 13 | 420 | 10000 |
| 25028R | M16x2 | 42 | 175,00 | 80 | 30 | 217,00 | 13 | 453 | 10000 |
| 25030R | M16x2 | 42 | 200,00 | 80 | 30 | 242,00 | 13 | 486 | 10000 |
| 25040R | M20x2,5 | 42 | 75,00 | 80 | 30 | 117,00 | 17 | 384 | 10000 |
| 25042R | M20x2,5 | 42 | 100,00 | 80 | 30 | 142,00 | 17 | 446 | 10000 |
| 25044R | M20x2,5 | 42 | 125,00 | 80 | 30 | 167,00 | 17 | 492 | 10000 |
| 25046R | M20x2,5 | 42 | 150,00 | 80 | 30 | 192,00 | 17 | 543 | 10000 |
| 25048R | M20x2,5 | 42 | 175,00 | 80 | 30 | 217,00 | 17 | 595 | 10000 |
| 25050R | M20x2,5 | 42 | 200,00 | 80 | 30 | 242,00 | 17 | 640 | 10000 |
| 25052R | M20x2,5 | 42 | 225,00 | 80 | 30 | 267,00 | 17 | 697 | 10000 |
| 25054R | M20x2,5 | 42 | 250,00 | 80 | 30 | 292,00 | 17 | 748 | 10000 |
| 25070R | M24x3 | 42 | 75,00 | 80 | 30 | 117,00 | 20 | 440 | 10000 |
| 25072R | M24x3 | 42 | 100,00 | 80 | 30 | 142,00 | 20 | 511 | 10000 |
| 25074R | M24x3 | 42 | 125,00 | 80 | 30 | 167,00 | 20 | 582 | 10000 |
| 25076R | M24x3 | 42 | 150,00 | 80 | 30 | 192,00 | 20 | 689 | 10000 |
| 25078R | M24x3 | 42 | 175,00 | 80 | 30 | 217,00 | 20 | 726 | 10000 |
| 25080R | M24x3 | 42 | 200,00 | 80 | 30 | 242,00 | 20 | 811 | 10000 |
| 25082R | M24x3 | 42 | 225,00 | 80 | 30 | 267,00 | 20 | 871 | 10000 |
| 25084R | M24x3 | 42 | 250,00 | 80 | 30 | 292,00 | 20 | 10000 |
Ø 80 BLUE EPDM – REGULATION 8/10/13/17/20
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25006/10RB/BF | M10x1,5 | 42 | 150,00 | 80 | 30 | 192,00 | 8 | 10000 | |
| 25008/10RB/BF | M10x1,5 | 42 | 175,00 | 80 | 30 | 217,00 | 8 | 10000 | |
| 25010/10RB/BF | M10x1,5 | 42 | 200,00 | 80 | 30 | 242,00 | 8 | 10000 | |
| 25006/12RB/BF | M12x1,75 | 42 | 150,00 | 80 | 30 | 192,00 | 10 | 10000 | |
| 25008/12RB/BF | M12x1,75 | 42 | 175,00 | 80 | 30 | 217,00 | 10 | 10000 | |
| 25010/12RB/BF | M12x1,75 | 42 | 200,00 | 80 | 30 | 242,00 | 10 | 10000 | |
| 25020RB | M16x2 | 42 | 75,00 | 80 | 30 | 117,00 | 13 | 321 | 10000 |
| 25022RB | M16x2 | 42 | 100,00 | 80 | 30 | 142,00 | 13 | 352 | 10000 |
| 25024RB | M16x2 | 42 | 125,00 | 80 | 30 | 167,00 | 13 | 384 | 10000 |
| 25026RB | M16x2 | 42 | 150,00 | 80 | 30 | 192,00 | 13 | 420 | 10000 |
| 25028RB | M16x2 | 42 | 175,00 | 80 | 30 | 217,00 | 13 | 453 | 10000 |
| 25030RB | M16x2 | 42 | 200,00 | 80 | 30 | 242,00 | 13 | 486 | 10000 |
| 25040RB | M20x2,5 | 42 | 75,00 | 80 | 30 | 117,00 | 17 | 384 | 10000 |
| 25042RB | M20x2,5 | 42 | 100,00 | 80 | 30 | 142,00 | 17 | 446 | 10000 |
| 25044RB | M20x2,5 | 42 | 125,00 | 80 | 30 | 167,00 | 17 | 492 | 10000 |
| 25046RB | M20x2,5 | 42 | 150,00 | 80 | 30 | 192,00 | 17 | 543 | 10000 |
| 25048RB | M20x2,5 | 42 | 175,00 | 80 | 30 | 217,00 | 17 | 595 | 10000 |
| 25050RB | M20x2,5 | 42 | 200,00 | 80 | 30 | 242,00 | 17 | 640 | 10000 |
| 25052RB | M20x2,5 | 42 | 225,00 | 80 | 30 | 267,00 | 17 | 697 | 10000 |
| 25054RB | M20x2,5 | 42 | 250,00 | 80 | 30 | 292,00 | 17 | 748 | 10000 |
| 25070RB | M24x3 | 42 | 75,00 | 80 | 30 | 117,00 | 20 | 440 | 10000 |
| 25072RB | M24x3 | 42 | 100,00 | 80 | 30 | 142,00 | 20 | 511 | 10000 |
| 25074RB | M24x3 | 42 | 125,00 | 80 | 30 | 167,00 | 20 | 582 | 10000 |
| 25076RB | M24x3 | 42 | 150,00 | 80 | 30 | 192,00 | 20 | 689 | 10000 |
| 25078RB | M24x3 | 42 | 175,00 | 80 | 30 | 217,00 | 20 | 726 | 10000 |
| 25080RB | M24x3 | 42 | 200,00 | 80 | 30 | 242,00 | 20 | 811 | 10000 |
| 25082RB | M24x3 | 42 | 225,00 | 80 | 30 | 267,00 | 20 | 871 | 10000 |
| 25084RB | M24x3 | 42 | 250,00 | 80 | 30 | 292,00 | 20 | 10000 |

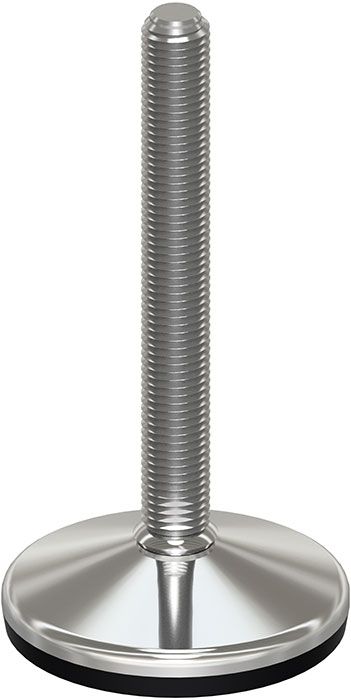

Ø 100 BLACK NBR RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25100R | M16x2 | 46 | 75,00 | 100 | 33 | 121,00 | 13 | 485 | 15000 |
| 25102R | M16x2 | 46 | 100,00 | 100 | 33 | 146,00 | 13 | 516 | 15000 |
| 25104R | M16x2 | 46 | 125,00 | 100 | 33 | 171,00 | 13 | 548 | 15000 |
| 25106R | M16x2 | 46 | 150,00 | 100 | 33 | 196,00 | 13 | 584 | 15000 |
| 25108R | M16x2 | 46 | 175,00 | 100 | 33 | 221,00 | 13 | 617 | 15000 |
| 25110R | M16x2 | 46 | 200,00 | 100 | 33 | 246,00 | 13 | 650 | 15000 |
| 25120R | M20x2,5 | 46 | 75,00 | 100 | 33 | 121,00 | 17 | 548 | 15000 |
| 25122R | M20x2,5 | 46 | 100,00 | 100 | 33 | 146,00 | 17 | 610 | 15000 |
| 25124R | M20x2,5 | 46 | 125,00 | 100 | 33 | 171,00 | 17 | 656 | 15000 |
| 25126R | M20x2,5 | 46 | 150,00 | 100 | 33 | 196,00 | 17 | 707 | 15000 |
| 25128R | M20x2,5 | 46 | 175,00 | 100 | 33 | 221,00 | 17 | 759 | 15000 |
| 25130R | M20x2,5 | 46 | 200,00 | 100 | 33 | 246,00 | 17 | 804 | 15000 |
| 25132R | M20x2,5 | 46 | 225,00 | 100 | 33 | 271,00 | 17 | 861 | 15000 |
| 25134R | M20x2,5 | 46 | 250,00 | 100 | 33 | 296,00 | 17 | 912 | 15000 |
| 25150R | M24x3 | 48 | 100,00 | 100 | 33 | 248,00 | 20 | 604 | 15000 |
| 25152R | M24x3 | 48 | 125,00 | 100 | 33 | 173,00 | 20 | 675 | 15000 |
| 25154R | M24x3 | 48 | 150,00 | 100 | 33 | 198,00 | 20 | 746 | 15000 |
| 25156R | M24x3 | 48 | 175,00 | 100 | 33 | 223,00 | 20 | 853 | 15000 |
| 25158R | M24x3 | 48 | 200,00 | 100 | 33 | 248,00 | 20 | 890 | 15000 |
| 25160R | M24x3 | 48 | 225,00 | 100 | 33 | 273,00 | 20 | 975 | 15000 |
| 25162R | M24x3 | 48 | 250,00 | 100 | 33 | 298,00 | 20 | 1035 | 15000 |
| 25180R | M30x3,5 | 48 | 100,00 | 100 | 33 | 148,00 | 26 | 914 | 15000 |
| 25182R | M30x3,5 | 48 | 125,00 | 100 | 33 | 173,00 | 26 | 1031 | 15000 |
| 25184R | M30x3,5 | 48 | 150,00 | 100 | 33 | 198,00 | 26 | 1147 | 15000 |
| 25186R | M30x3,5 | 48 | 175,00 | 100 | 33 | 223,00 | 26 | 1275 | 15000 |
| 25188R | M30x3,5 | 48 | 200,00 | 100 | 33 | 248,00 | 26 | 1388 | 15000 |
| 25200R | M30x3,5 | 48 | 225,00 | 100 | 33 | 273,00 | 26 | 1506 | 15000 |
| 25202R | M30x3,5 | 48 | 250,00 | 100 | 33 | 298,00 | 26 | 1620 | 15000 |
| 25154R/P2 | M24x2 | 48 | 150,00 | 100 | 33 | 198,00 | 20 | 853 | 15000 |

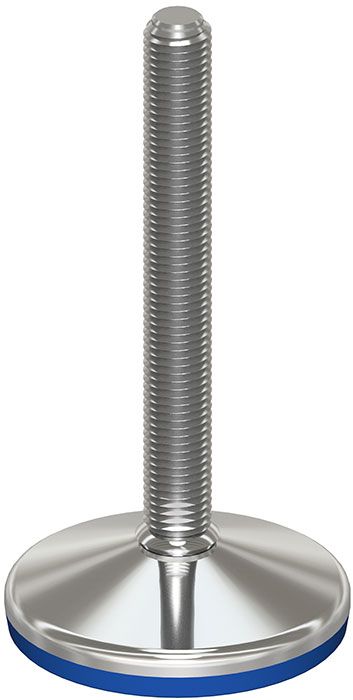

Ø 100 – BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25100RB | M16x2 | 46 | 75,00 | 100 | 33 | 121,00 | 13 | 485 | 15000 |
| 25102RB | M16x2 | 46 | 100,00 | 100 | 33 | 146,00 | 13 | 516 | 15000 |
| 25104RB | M16x2 | 46 | 125,00 | 100 | 33 | 171,00 | 13 | 548 | 15000 |
| 25106RB | M16x2 | 46 | 150,00 | 100 | 33 | 196,00 | 13 | 584 | 15000 |
| 25108RB | M16x2 | 46 | 175,00 | 100 | 33 | 221,00 | 13 | 617 | 15000 |
| 25110RB | M16x2 | 46 | 200,00 | 100 | 33 | 246,00 | 13 | 650 | 15000 |
| 25120RB | M20x2,5 | 46 | 75,00 | 100 | 33 | 121,00 | 17 | 548 | 15000 |
| 25122RB | M20x2,5 | 46 | 100,00 | 100 | 33 | 146,00 | 17 | 610 | 15000 |
| 25124RB | M20x2,5 | 46 | 125,00 | 100 | 33 | 171,00 | 17 | 656 | 15000 |
| 25126RB | M20x2,5 | 46 | 150,00 | 100 | 33 | 196,00 | 17 | 707 | 15000 |
| 25128RB | M20x2,5 | 46 | 175,00 | 100 | 33 | 221,00 | 17 | 759 | 15000 |
| 25130RB | M20x2,5 | 46 | 200,00 | 100 | 33 | 246,00 | 17 | 804 | 15000 |
| 25132RB | M20x2,5 | 46 | 225,00 | 100 | 33 | 271,00 | 17 | 861 | 15000 |
| 25134RB | M20x2,5 | 46 | 250,00 | 100 | 33 | 296,00 | 17 | 912 | 15000 |
| 25150RB | M24x3 | 48 | 100,00 | 100 | 33 | 248,00 | 20 | 604 | 15000 |
| 25152RB | M24x3 | 48 | 125,00 | 100 | 33 | 173,00 | 20 | 675 | 15000 |
| 25154RB | M24x3 | 48 | 150,00 | 100 | 33 | 198,00 | 20 | 746 | 15000 |
| 25156RB | M24x3 | 48 | 175,00 | 100 | 33 | 223,00 | 20 | 853 | 15000 |
| 25158RB | M24x3 | 48 | 200,00 | 100 | 33 | 248,00 | 20 | 890 | 15000 |
| 25160RB | M24x3 | 48 | 225,00 | 100 | 33 | 273,00 | 20 | 975 | 15000 |
| 25162RB | M24x3 | 48 | 250,00 | 100 | 33 | 298,00 | 20 | 1035 | 15000 |
| 25180RB | M30x3,5 | 48 | 100,00 | 100 | 33 | 148,00 | 26 | 914 | 15000 |
| 25182RB | M30x3,5 | 48 | 125,00 | 100 | 33 | 173,00 | 26 | 1031 | 15000 |
| 25184RB | M30x3,5 | 48 | 150,00 | 100 | 33 | 198,00 | 26 | 1147 | 15000 |
| 25186RB | M30x3,5 | 48 | 175,00 | 100 | 33 | 223,00 | 26 | 1275 | 15000 |
| 25188RB | M30x3,5 | 48 | 200,00 | 100 | 33 | 248,00 | 26 | 1388 | 15000 |
| 25200RB | M30x3,5 | 48 | 225,00 | 100 | 33 | 273,00 | 26 | 1506 | 15000 |
| 25202RB | M30x3,5 | 48 | 250,00 | 100 | 33 | 298,00 | 26 | 1620 | 15000 |
| 25154RB/P2 | M24x2 | 42 | 150,00 | 100 | 33 | 192,00 | 20 | 853 | 15000 |

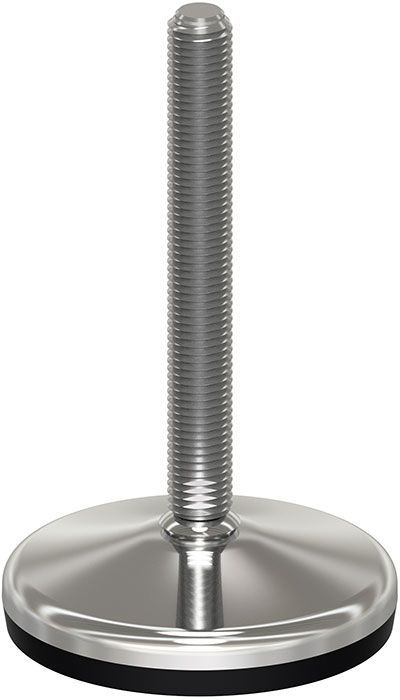

Ø 120 BLACK NBR RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25250R | M16x2 | 49 | 75,00 | 120 | 36 | 124,00 | 13 | 834 | 30000 |
| 25252R | M16x2 | 49 | 100,00 | 120 | 36 | 149,00 | 13 | 865 | 30000 |
| 25254R | M16x2 | 49 | 125,00 | 120 | 36 | 174,00 | 13 | 897 | 30000 |
| 25256R | M16x2 | 49 | 150,00 | 120 | 36 | 199,00 | 13 | 933 | 30000 |
| 25258R | M16x2 | 49 | 175,00 | 120 | 36 | 224,00 | 13 | 966 | 30000 |
| 25260R | M16x2 | 49 | 200,00 | 120 | 36 | 249,00 | 13 | 999 | 30000 |
| 25262R | M20x2,5 | 49 | 75,00 | 120 | 36 | 124,00 | 17 | 897 | 30000 |
| 25264R | M20x2,5 | 49 | 100,00 | 120 | 36 | 149,00 | 17 | 959 | 30000 |
| 25266R | M20x2,5 | 49 | 125,00 | 120 | 36 | 174,00 | 17 | 1005 | 30000 |
| 25268R | M20x2,5 | 49 | 150,00 | 120 | 36 | 199,00 | 17 | 1056 | 30000 |
| 25270R | M20x2,5 | 49 | 175,00 | 120 | 36 | 224,00 | 17 | 1108 | 30000 |
| 25272R | M20x2,5 | 49 | 200,00 | 120 | 36 | 249,00 | 17 | 1153 | 30000 |
| 25274R | M20x2,5 | 49 | 225,00 | 120 | 36 | 274,00 | 17 | 1210 | 30000 |
| 25276R | M20x2,5 | 49 | 250,00 | 120 | 36 | 299,00 | 17 | 1261 | 30000 |
| 25278R | M24x3 | 51 | 100,00 | 120 | 36 | 151,00 | 20 | 1024 | 30000 |
| 25280R | M24x3 | 51 | 125,00 | 120 | 36 | 176,00 | 20 | 1095 | 30000 |
| 25282R | M24x3 | 51 | 150,00 | 120 | 36 | 201,00 | 20 | 1202 | 30000 |
| 25284R | M24x3 | 51 | 175,00 | 120 | 36 | 226,00 | 20 | 1239 | 30000 |
| 25286R | M24x3 | 51 | 200,00 | 120 | 36 | 251,00 | 20 | 1324 | 30000 |
| 25288R | M24x3 | 51 | 225,00 | 120 | 36 | 276,00 | 20 | 1384 | 30000 |
| 25290R | M24x3 | 51 | 250,00 | 120 | 36 | 301,00 | 20 | 1500 | 30000 |
| 25292R | M30x3,5 | 51 | 100,00 | 120 | 36 | 151,00 | 26 | 1263 | 30000 |
| 25294R | M30x3,5 | 51 | 125,00 | 120 | 36 | 176,00 | 26 | 1380 | 30000 |
| 25296R | M30x3,5 | 51 | 150,00 | 120 | 36 | 201,00 | 26 | 1496 | 30000 |
| 25298R | M30x3,5 | 51 | 175,00 | 120 | 36 | 226,00 | 26 | 1624 | 30000 |
| 25300R | M30x3,5 | 51 | 200,00 | 120 | 36 | 251,00 | 26 | 1737 | 30000 |
| 25302R | M30x3,5 | 51 | 225,00 | 120 | 36 | 276,00 | 26 | 1855 | 30000 |
| 25304R | M30x3,5 | 51 | 250,00 | 120 | 36 | 301,00 | 26 | 1969 | 30000 |
| 25282R/P2 | M24x2 | 48 | 150,00 | 120 | 36 | 201,00 | 20 | 1202 | 30000 |
Ø 120 – BLUE EPDM RUBBER
| CODE | SIZE (F) | FLOOR DISTANCE (A) | STEM LENGTH (B) | BASE SIZE (D) | BASE LENGTH (G) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT (gr) | LOAD (Newton) |
|---|---|---|---|---|---|---|---|---|---|
| 25250RB | M16x2 | 49 | 75,00 | 120 | 36 | 124,00 | 13 | 834 | 30000 |
| 25252RB | M16x2 | 49 | 100,00 | 120 | 36 | 149,00 | 13 | 865 | 30000 |
| 25254RB | M16x2 | 49 | 125,00 | 120 | 36 | 174,00 | 13 | 897 | 30000 |
| 25256RB | M16x2 | 49 | 150,00 | 120 | 36 | 199,00 | 13 | 933 | 30000 |
| 25258RB | M16x2 | 49 | 175,00 | 120 | 36 | 224,00 | 13 | 966 | 30000 |
| 25260RB | M16x2 | 49 | 200,00 | 120 | 36 | 249,00 | 13 | 999 | 30000 |
| 25262RB | M20x2,5 | 49 | 75,00 | 120 | 36 | 124,00 | 17 | 897 | 30000 |
| 25264RB | M20x2,5 | 49 | 100,00 | 120 | 36 | 149,00 | 17 | 959 | 30000 |
| 25266RB | M20x2,5 | 49 | 125,00 | 120 | 36 | 174,00 | 17 | 1005 | 30000 |
| 25268RB | M20x2,5 | 49 | 150,00 | 120 | 36 | 199,00 | 17 | 1056 | 30000 |
| 25270RB | M20x2,5 | 49 | 175,00 | 120 | 36 | 224,00 | 17 | 1108 | 30000 |
| 25272RB | M20x2,5 | 49 | 200,00 | 120 | 36 | 249,00 | 17 | 1153 | 30000 |
| 25274RB | M20x2,5 | 49 | 225,00 | 120 | 36 | 274,00 | 17 | 1210 | 30000 |
| 25276RB | M20x2,5 | 49 | 250,00 | 120 | 36 | 299,00 | 17 | 1261 | 30000 |
| 25278RB | M24x3 | 51 | 100,00 | 120 | 36 | 151,00 | 20 | 1024 | 30000 |
| 25280RB | M24x3 | 51 | 125,00 | 120 | 36 | 176,00 | 20 | 1095 | 30000 |
| 25282RB | M24x3 | 51 | 150,00 | 120 | 36 | 201,00 | 20 | 1202 | 30000 |
| 25284RB | M24x3 | 51 | 175,00 | 120 | 36 | 226,00 | 20 | 1239 | 30000 |
| 25286RB | M24x3 | 51 | 200,00 | 120 | 36 | 251,00 | 20 | 1324 | 30000 |
| 25288RB | M24x3 | 51 | 225,00 | 120 | 36 | 276,00 | 20 | 1384 | 30000 |
| 25290RB | M24x3 | 51 | 250,00 | 120 | 36 | 301,00 | 20 | 1500 | 30000 |
| 25292RB | M30x3,5 | 51 | 100,00 | 120 | 36 | 151,00 | 26 | 1263 | 30000 |
| 25294RB | M30x3,5 | 51 | 125,00 | 120 | 36 | 176,00 | 26 | 1380 | 30000 |
| 25296RB | M30x3,5 | 51 | 150,00 | 120 | 36 | 201,00 | 26 | 1496 | 30000 |
| 25298RB | M30x3,5 | 51 | 175,00 | 120 | 36 | 226,00 | 26 | 1624 | 30000 |
| 25300RB | M30x3,5 | 51 | 200,00 | 120 | 36 | 251,00 | 26 | 1737 | 30000 |
| 25302RB | M30x3,5 | 51 | 225,00 | 120 | 36 | 276,00 | 26 | 1855 | 30000 |
| 25304RB | M30x3,5 | 51 | 250,00 | 120 | 36 | 301,00 | 26 | 1969 | 30000 |
| 25282RB/P2 | M24x2 | 48 | 150,00 | 120 | 36 | 198,00 | 20 | 1202 | 30000 |
We Have Solutions for Your Design Problems
Find out how our components can make your facility more profitable.
Location
Park Ridge, IL
info@satekec.com
Call
(312) 813-0104
The region's leading engineered components service since 1996.
Navigation
Services
Working hours
- Mon - Fri
- -
- Sat - Sun
- Closed
