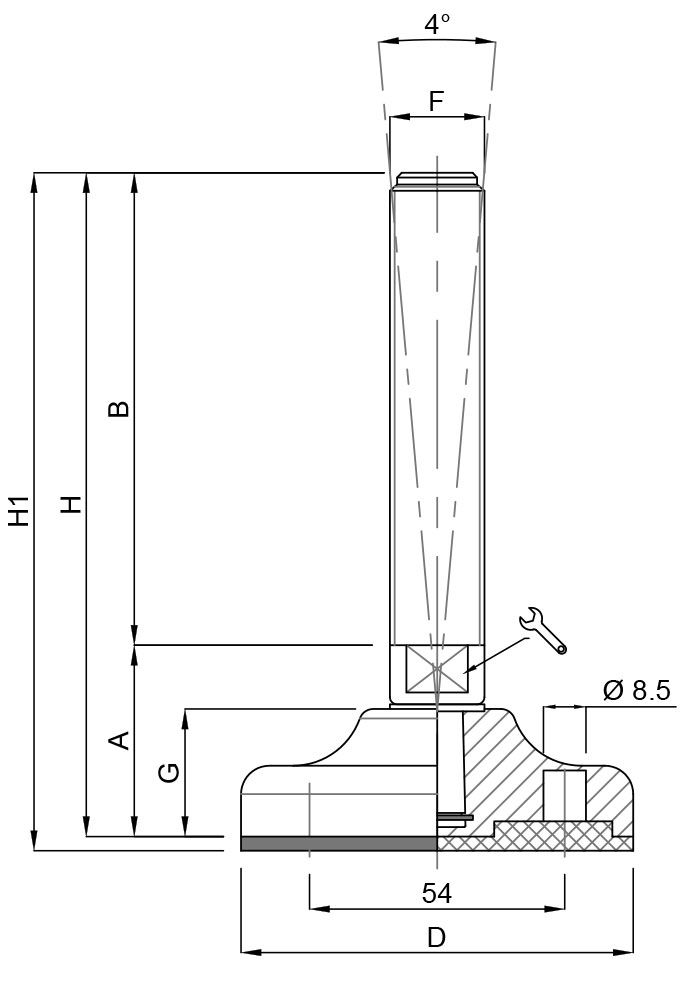

Fix Steel Screw
PLASTIC LINE
• Base in black polyamide material, reinforced by sphere glass. On request non-skid plate in NBR rubber 70 shore is available (Standard code = without rubber). Galvanized steel screw. The leveling element could be supplied, on request, with steel nut.
• Load values mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.

code/P2 = Available with Thin pitch thread.

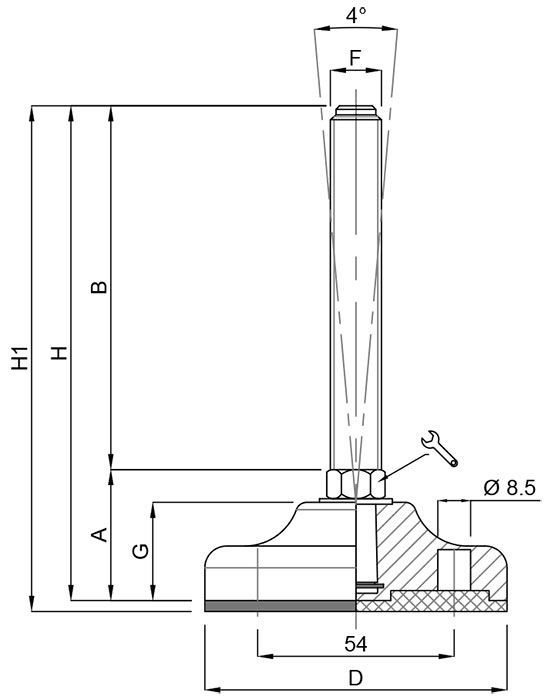

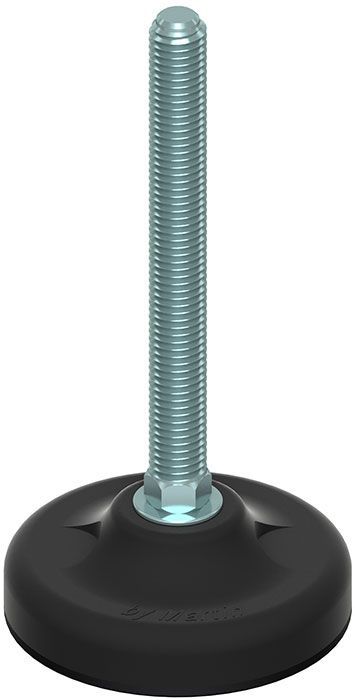

Ø 83 – REGULATION HEX 14
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12644/10 | M10x1,5 | 50,00 | 83 | 86,00 | HEX 14 | 121 | 10000 |
| 12646/10 | M10x1,5 | 75,00 | 83 | 111,00 | HEX 14 | 132 | 10000 |
| 12648/10 | M10x1,5 | 100,00 | 83 | 136,00 | HEX 14 | 146 | 10000 |
| 12650/10 | M10x1,5 | 125,00 | 83 | 161,00 | HEX 14 | 157 | 10000 |
| 12644/12 | M12x1,75 | 50,00 | 83 | 86,00 | HEX 14 | 130 | 15000 |
| 12646/12 | M12x1,75 | 75,00 | 83 | 111,00 | HEX 14 | 148 | 15000 |
| 12648/12 | M12x1,75 | 100,00 | 83 | 136,00 | HEX 14 | 166 | 15000 |
| 12650/12 | M12x1,75 | 125,00 | 83 | 161,00 | HEX 14 | 183 | 15000 |
| 12644 | M14x2 | 50,00 | 83 | 86,00 | HEX 14 | 144 | 25000 |
| 12646 | M14x2 | 75,00 | 83 | 111,00 | HEX 14 | 168 | 25000 |
| 12648 | M14x2 | 100,00 | 83 | 136,00 | HEX 14 | 193 | 25000 |
| 12650 | M14x2 | 125,00 | 83 | 161,00 | HEX 14 | 216 | 25000 |
| 12652 | M14x2 | 150,00 | 83 | 186,00 | HEX 14 | 239 | 25000 |
| 12654 | M14x2 | 175,00 | 83 | 211,00 | HEX 14 | 261 | 25000 |

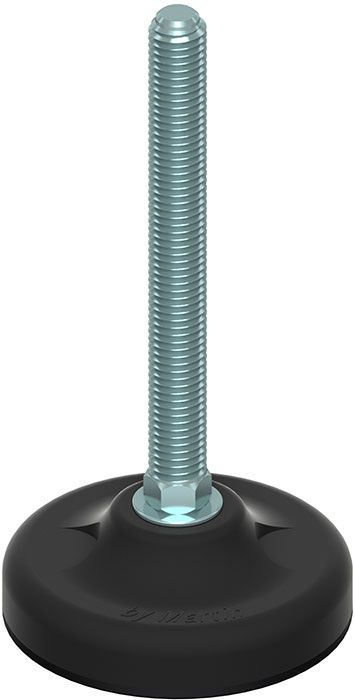

Ø 83 – REGULATION HEX 16
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12672 | M16x2 | 50,00 | 83 | 86,00 | HEX 16 | 234 | 20000 |
| 12674 | M16x2 | 75,00 | 83 | 111,00 | HEX 16 | 268 | 20000 |
| 12676 | M16x2 | 100,00 | 83 | 136,00 | HEX 16 | 299 | 20000 |
| 12678 | M16x2 | 125,00 | 83 | 161,00 | HEX 16 | 332 | 20000 |
| 12680 | M16x2 | 150,00 | 83 | 186,00 | HEX 16 | 364 | 20000 |
| 12682 | M16x2 | 175,00 | 83 | 211,00 | HEX 16 | 396 | 20000 |
| 12684 | M16x2 | 200,00 | 83 | 236,00 | HEX 16 | 432 | 20000 |

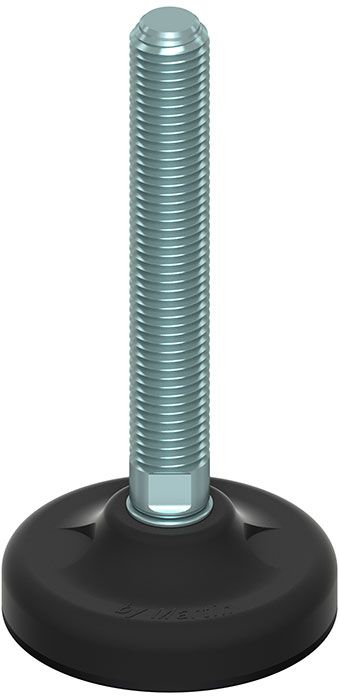

Ø 83 – REGULATION 17
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12704 | M20x2,5 | 75,00 | 83 | 115,00 | 17 | 322 | 20000 |
| 12706 | M20x2,5 | 100,00 | 83 | 140,00 | 17 | 372 | 20000 |
| 12708 | M20x2,5 | 125,00 | 83 | 165,00 | 17 | 418 | 20000 |
| 12710 | M20x2,5 | 150,00 | 83 | 190,00 | 17 | 471 | 20000 |
| 12712 | M20x2,5 | 175,00 | 83 | 215,00 | 17 | 523 | 20000 |
| 12714 | M20x2,5 | 200,00 | 83 | 240,00 | 17 | 569 | 20000 |
| 12716 | M20x2,5 | 225,00 | 83 | 265,00 | 17 | 627 | 20000 |

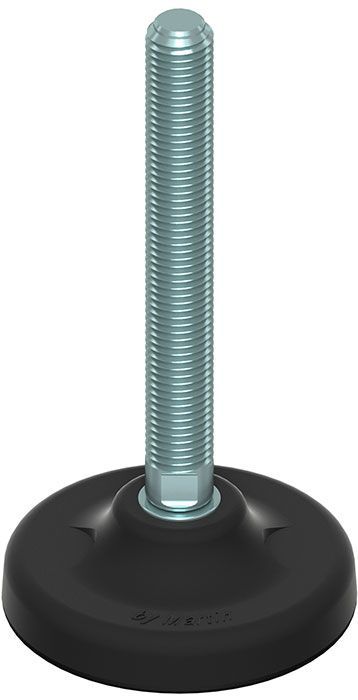

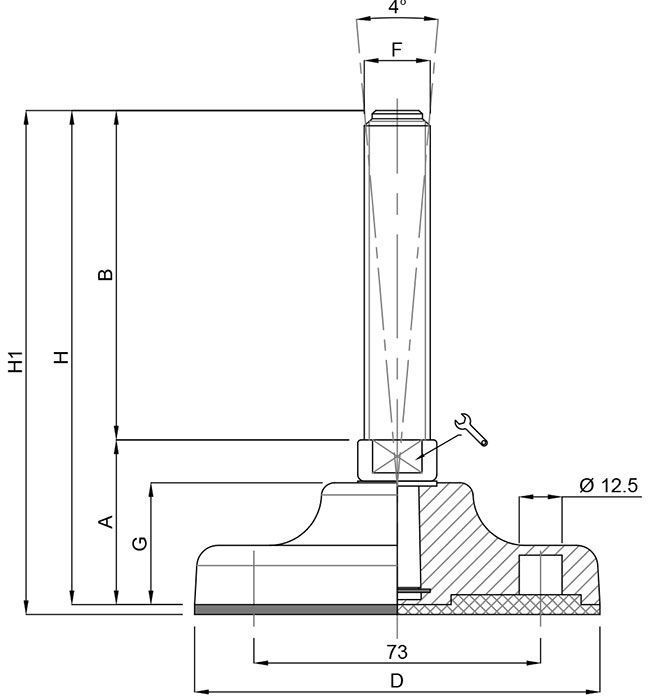

Ø 103
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12734 | M16x2 | 50,00 | 103 | 95,00 | 17 | 271 | 35000 |
| 12736 | M16x2 | 75,00 | 103 | 120,00 | 17 | 305 | 35000 |
| 12738 | M16x2 | 100,00 | 103 | 145,00 | 17 | 336 | 35000 |
| 12740 | M16x2 | 125,00 | 103 | 170,00 | 17 | 369 | 35000 |
| 12742 | M16x2 | 150,00 | 103 | 195,00 | 17 | 401 | 35000 |
| 12744 | M16x2 | 175,00 | 103 | 220,00 | 17 | 433 | 35000 |
| 12746 | M16x2 | 200,00 | 103 | 245,00 | 17 | 469 | 35000 |
| 12748 | M16x2 | 225,00 | 103 | 270,00 | 17 | 495 | 35000 |
| 12768 | M20x2,5 | 75,00 | 103 | 120,00 | 17 | 359 | 35000 |
| 12770 | M20x2,5 | 100,00 | 103 | 145,00 | 17 | 409 | 35000 |
| 12772 | M20x2,5 | 125,00 | 103 | 170,00 | 17 | 455 | 35000 |
| 12774 | M20x2,5 | 150,00 | 103 | 195,00 | 17 | 508 | 35000 |
| 12776 | M20x2,5 | 175,00 | 103 | 220,00 | 17 | 560 | 35000 |
| 12778 | M20x2,5 | 200,00 | 103 | 245,00 | 17 | 606 | 35000 |
| 12780 | M20x2,5 | 225,00 | 103 | 270,00 | 17 | 664 | 35000 |
| 12800 | M24x3 | 75,00 | 103 | 122,00 | 20 | 431 | 35000 |
| 12802 | M24x3 | 100,00 | 103 | 147,00 | 20 | 501 | 35000 |
| 12804 | M24x3 | 125,00 | 103 | 172,00 | 20 | 581 | 35000 |
| 12806 | M24x3 | 150,00 | 103 | 197,00 | 20 | 647 | 35000 |
| 12806/P2 | M24x2 | 150,00 | 103 | 197,00 | 20 | 647 | 35000 |
| 12808 | M24x3 | 175,00 | 103 | 222,00 | 20 | 715 | 35000 |
| 12810 | M24x3 | 200,00 | 103 | 247,00 | 20 | 785 | 35000 |
| 12810/P2 | M24x2 | 200,00 | 103 | 247,00 | 20 | 785 | 35000 |
| 12812 | M24x3 | 225,00 | 103 | 272,00 | 20 | 870 | 35000 |

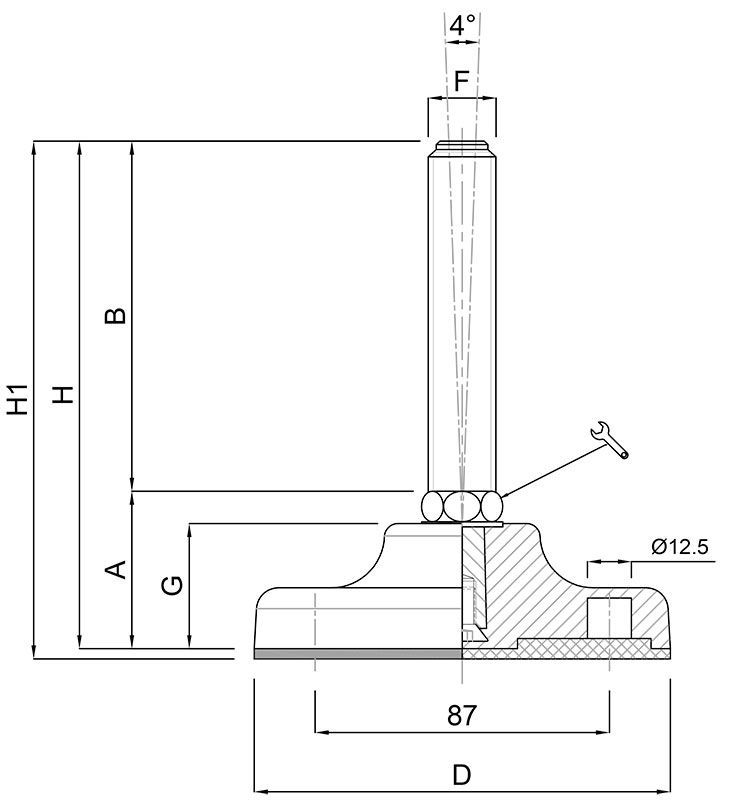

Ø 123 – M16/M20
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12830 | M16x2 | 50,00 | 123 | 100,00 | 20 | 314 | 45000 |
| 12832 | M16x2 | 75,00 | 123 | 125,00 | 20 | 348 | 45000 |
| 12834 | M16x2 | 100,00 | 123 | 150,00 | 20 | 379 | 45000 |
| 12836 | M16x2 | 125,00 | 123 | 175,00 | 20 | 412 | 45000 |
| 12838 | M16x2 | 150,00 | 123 | 200,00 | 20 | 444 | 45000 |
| 12840 | M16x2 | 175,00 | 123 | 225,00 | 20 | 476 | 45000 |
| 12842 | M16x2 | 200,00 | 123 | 250,00 | 20 | 512 | 45000 |
| 12844 | M16x2 | 225,00 | 123 | 275,00 | 20 | 538 | 45000 |
| 12864 | M20x2,5 | 75,00 | 123 | 125,00 | 20 | 402 | 45000 |
| 12866 | M20x2,5 | 100,00 | 123 | 150,00 | 20 | 452 | 45000 |
| 12868 | M20x2,5 | 125,00 | 123 | 175,00 | 20 | 498 | 45000 |
| 12870 | M20x2,5 | 150,00 | 123 | 200,00 | 20 | 551 | 45000 |
| 12872 | M20x2,5 | 175,00 | 123 | 225,00 | 20 | 603 | 45000 |
| 12874 | M20x2,5 | 200,00 | 123 | 250,00 | 20 | 649 | 45000 |
| 12876 | M20x2,5 | 225,00 | 123 | 275,00 | 20 | 707 | 45000 |
| 12834/20 | M16x2 | 100,00 | 123 | 150,00 | 17 | 308 | 40000 |
| 12838/20 | M16x2 | 150,00 | 123 | 200,00 | 17 | 373 | 40000 |
| 12842/20 | M16x2 | 200,00 | 123 | 250,00 | 17 | 436 | 40000 |
| 12866/20 | M20x2,5 | 100,00 | 123 | 150,00 | 17 | 414 | 40000 |
| 12870/20 | M20x2,5 | 150,00 | 123 | 200,00 | 17 | 516 | 40000 |
| 12874/20 | M20x2,5 | 200,00 | 123 | 250,00 | 17 | 618 | 40000 |

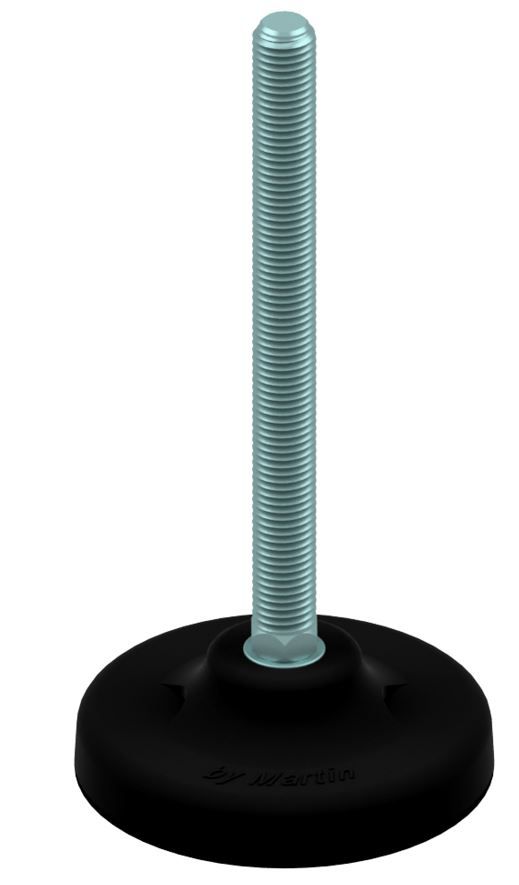

Ø 123 – M24/M30
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) | WEIGHT gr | LOAD (Newton) |
|---|---|---|---|---|---|---|---|
| 12894 | M24x3 | 75,00 | 123 | 125,00 | 20 | 474 | 45000 |
| 12896 | M24x3 | 100,00 | 123 | 150,00 | 20 | 544 | 45000 |
| 12898 | M24x3 | 125,00 | 123 | 175,00 | 20 | 624 | 45000 |
| 12900 | M24x3 | 150,00 | 123 | 200,00 | 20 | 690 | 45000 |
| 12900/P2 | M24x2 | 150,00 | 123 | 200,00 | 20 | 690 | 45000 |
| 12902 | M24x3 | 175,00 | 123 | 225,00 | 20 | 758 | 45000 |
| 12904 | M24x3 | 200,00 | 123 | 250,00 | 20 | 828 | 45000 |
| 12904/P2 | M24x2 | 200,00 | 123 | 250,00 | 20 | 828 | 45000 |
| 12906 | M24x3 | 225,00 | 123 | 275,00 | 20 | 913 | 45000 |
| 12908 | M24x3 | 250,00 | 123 | 300,00 | 20 | 979 | 45000 |
| 12924 | M30x3,5 | 100,00 | 123 | 150,00 | 26 | 449 | 45000 |
| 12926 | M30x3,5 | 125,00 | 123 | 175,00 | 26 | 862 | 45000 |
| 12928 | M30x3,5 | 150,00 | 123 | 200,00 | 26 | 978 | 45000 |
| 12928/P2 | M30x2 | 150,00 | 123 | 200,00 | 26 | 978 | 45000 |
| 12930 | M30x3,5 | 175,00 | 123 | 225,00 | 26 | 1094 | 45000 |
| 12932 | M30x3,5 | 200,00 | 123 | 250,00 | 26 | 1208 | 45000 |
| 12932/P2 | M30x2 | 200,00 | 123 | 250,00 | 26 | 1208 | 45000 |
| 12934 | M30x3,5 | 225,00 | 123 | 275,00 | 26 | 1327 | 45000 |
| 12936 | M30x3,5 | 250,00 | 123 | 300,00 | 26 | 1450 | 45000 |
