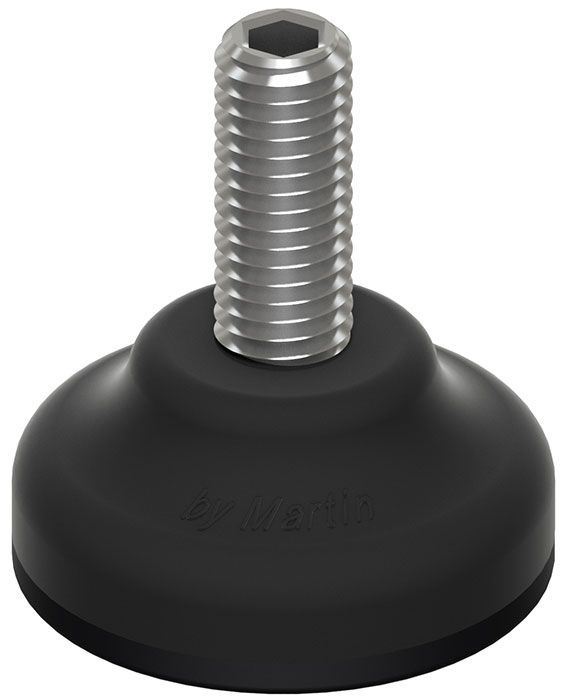

Fix Stainless Steel Screw Molded In

PLASTIC LINE

• Base in black polyamide material, reinforced by sphere glass. On request non-skid plate in NBR rubber 70 shore is available (Standard code = without rubber). Stainless steel screw in 1.4301 (1.4401on specific request). The leveling mount could be supplied, on request, with steel nut.


• Load values mentioned have to be considered referring to static conditions calculated at the half of the screw length. In conditions of vibrations or in presence of dynamic loads these values should be reduced. For further information consult our technical office. We cannot accept responsibility for mounts that have been tampered or modified.


• Regulation 13/17: wrench from round bar
• Set Box:  Products Ø 40 mm base: 200 pieces   Products Ø 50 mm base: 150 pieces

Ø 40/50

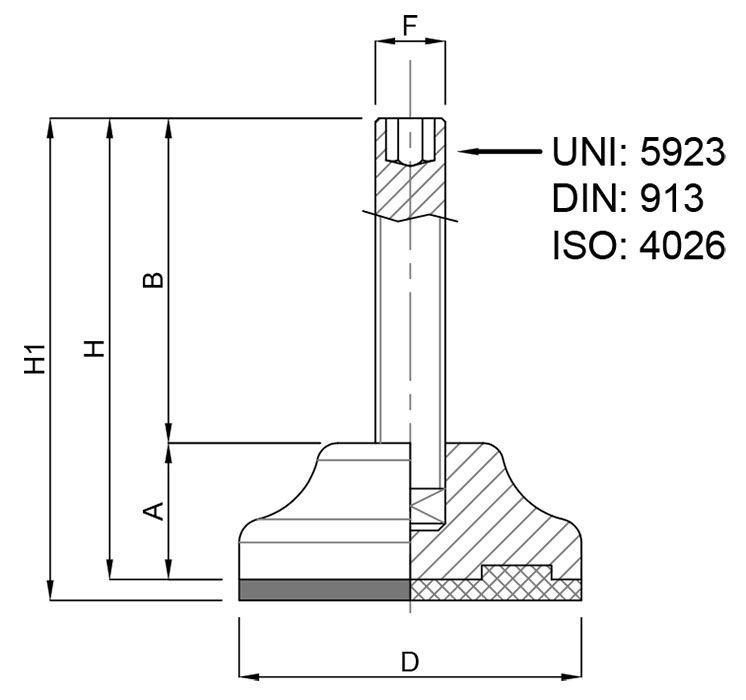

CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) REGULATION (SW) WEIGHT gr LOAD (Newton)
9000 M8x1,25 25,00 40 ALLEN 4 22 5000
9010 M8x1,25 50,00 40 ALLEN 5 30 5000
9020 M10x1,5 25,00 40 ALLEN 4 27 6000
9030 M10x1,5 50,00 40 ALLEN 5 40 6000
9040 M8x1,25 25,00 50 ALLEN 4 29 5000
9050 M8x1,25 50,00 50 ALLEN 5 37 5000
9060 M10x1,5 25,00 50 ALLEN 4 34 6000
9070 M10x1,5 50,00 50 ALLEN 5 47 6000
PDF

Ø 40/50 – ANTISLIP

CODE SIZE (F) STEM LENGTH (B) BASE SIZE (D) REGULATION (SW) WEIGHT gr LOAD (Newton)
9001 M8x1,25 25,00 40 ALLEN 4 29 5000
9011 M8x1,25 50,00 40 ALLEN 5 37 5000
9021 M10x1,5 25,00 40 ALLEN 4 34 6000
9031 M10x1,5 50,00 40 ALLEN 5 47 6000
9041 M8x1,25 25,00 50 ALLEN 4 40 5000
9051 M8x1,25 50,00 50 ALLEN 5 48 5000
9061 M10x1,5 25,00 50 ALLEN 4 45 6000
9071 M10x1,5 50,00 50 ALLEN 5 58 6000
PDF
