Knob - Star Grip
INOX ACCESSORIES
• Material: 1.4301 (1.4401 request). Polished surface (sandblasted treatment on request).
Thanks to their design the knobs avoid any dirt and dust deposit.
• Applications: pharmaceutical, chemical, food, wine and packaging industry.

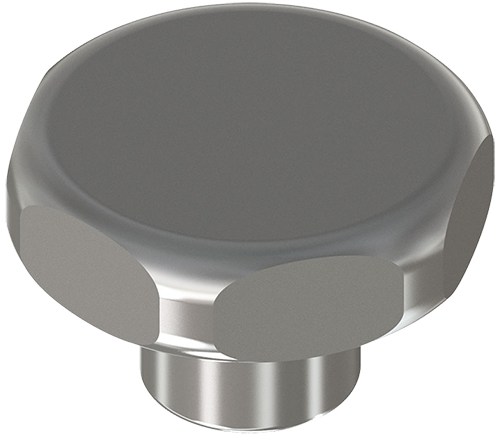

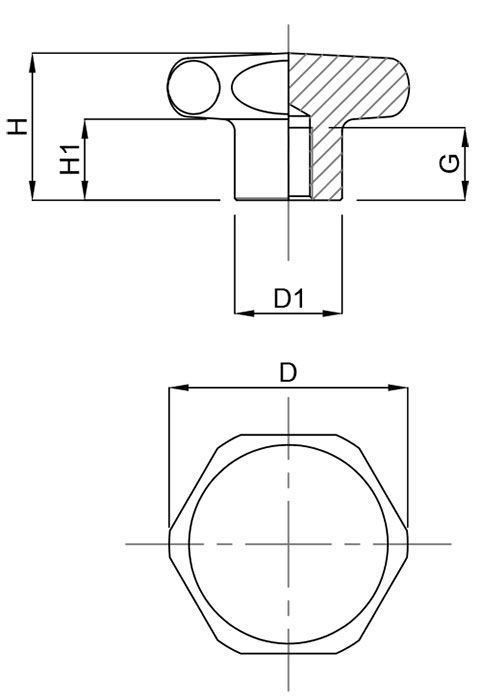

THREADED FEMALE
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) |
|---|---|---|---|---|---|
| 30000E/27 | M5x0,8 | FEMALE | 27 | 19,00 | HEX 27 |
| 30010E/33 | M6x1 | FEMALE | 33 | 23,00 | HEX 33 |
| 30020E/40 | M8x1,25 | FEMALE | 40 | 27,00 | HEX 40 |
| 30030E/50 | M10x1,5 | FEMALE | 50 | 33,00 | HEX 50 |
| 30040E/60 | M12x1,75 | FEMALE | 60 | 37,00 | HEX 60 |

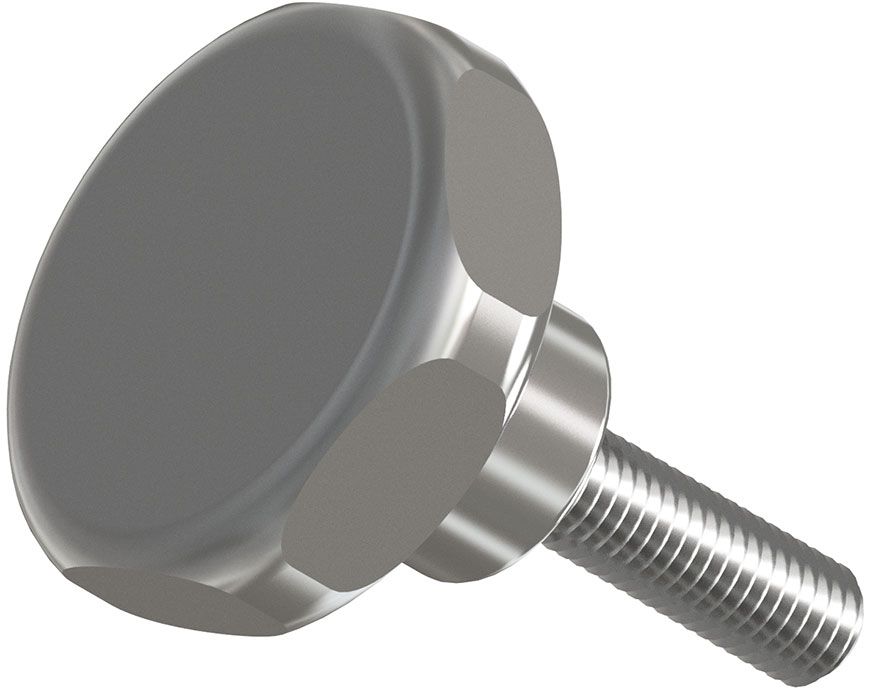

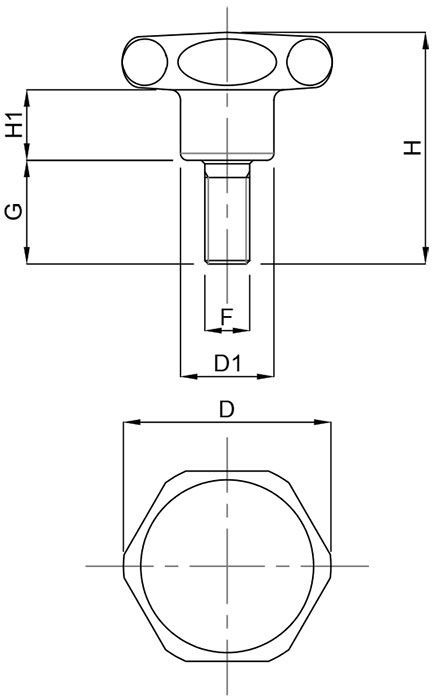

THREADED MALE
| CODE | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) |
|---|---|---|---|---|---|
| 30060E/27 | M6x1 | 10,00 | 27 | 30,00 | HEX 27 |
| 30070E/33 | M8x1,25 | 20,00 | 33 | 43,00 | HEX 33 |
| 30080E/40 | M8x1,25 | 20,00 | 40 | 47,00 | HEX 40 |
| 30090E/50 | M10x1,5 | 30,00 | 50 | 63,00 | HEX 50 |
| 30100E/60 | M12x1,75 | 40,00 | 60 | 77,00 | HEX 60 |

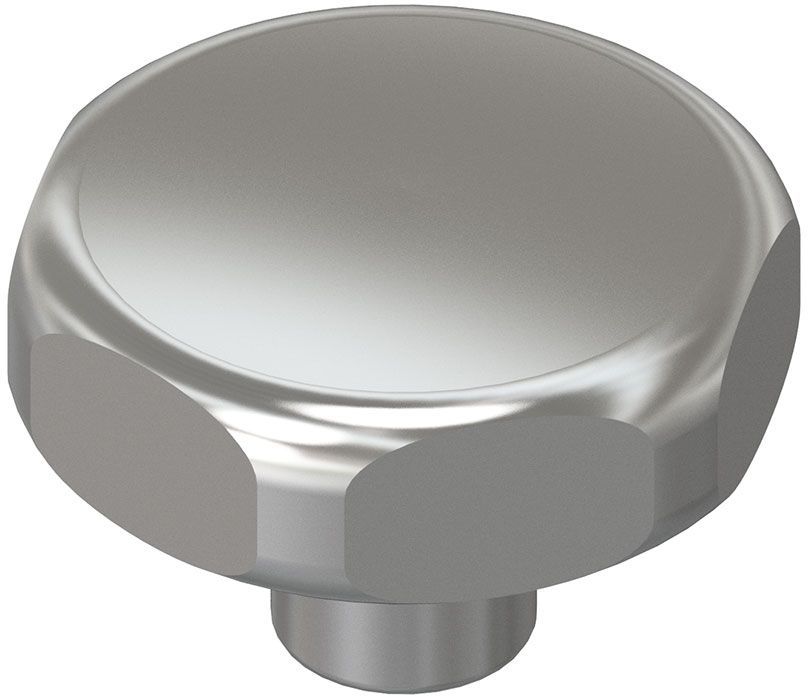

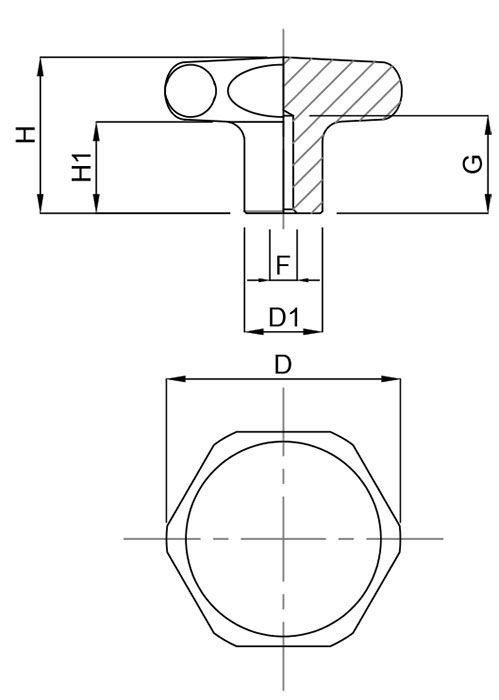

NOT-THREADED FEMALE
| CODE | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) |
|---|---|---|---|---|
| 30000/40 | FEMALE | 40 | 25,00 | HEX 40 |
| 30010/50 | FEMALE | 50 | 32,00 | HEX 50 |
| 30020/60 | FEMALE | 60 | 40,00 | HEX 60 |
| 30030/65 | FEMALE | 65 | 40,00 | HEX 65 |

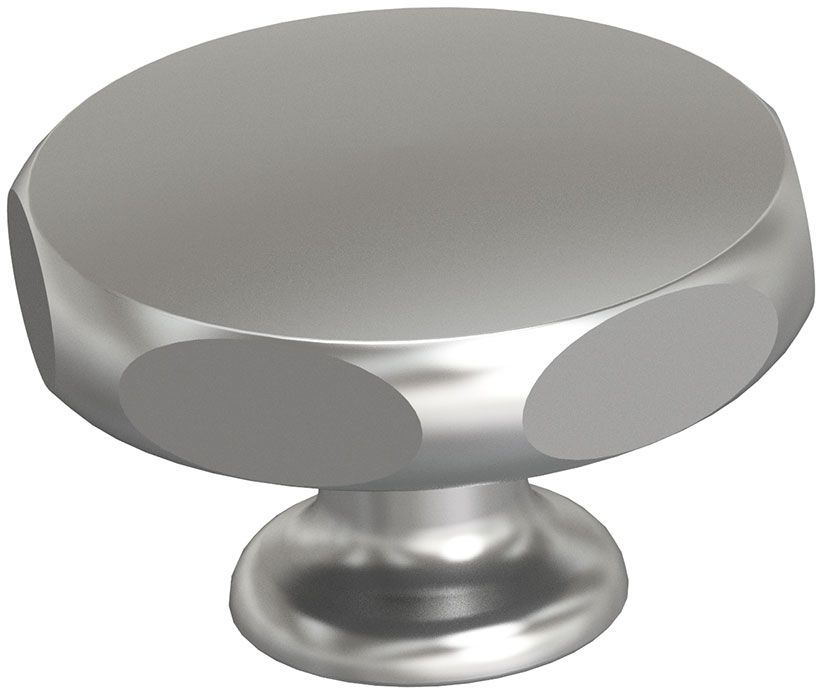

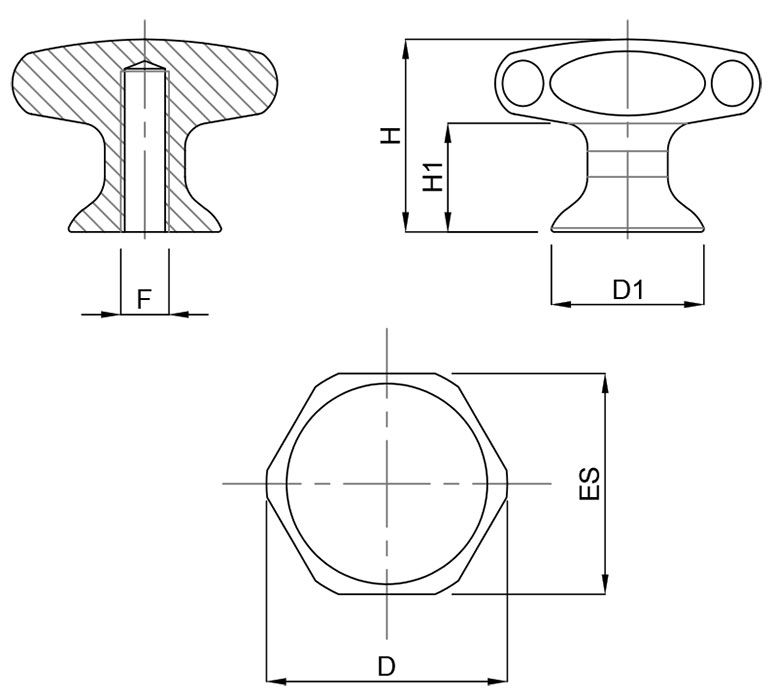

NOT-THREADED FEMALE
| CODE | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | REGULATION (SW) |
|---|---|---|---|---|
| 30005/27SL20 | 15,00 | 27 | 20,00 | HEX 27 |
| 30010E/33SL24 | 20,00 | 33 | 24,00 | HEX 33 |
| 30020E/40SL28 | 20,00 | 40 | 28,00 | HEX 40 |
| 30030E/50SL30 | 25,00 | 50 | 30,00 | HEX 50 |
| 30050E/65SL40 | 25,00 | 65 | 40,00 | HEX 65 |
