Hinges for Doors & Hatches
INOX ACCESSORIES
• Material: stainless steel
Finish: Sandblasted or polished

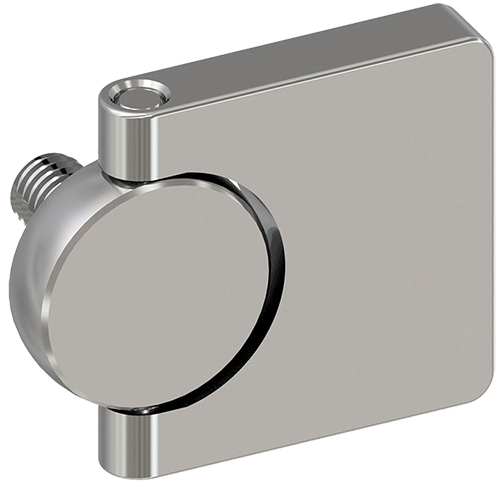

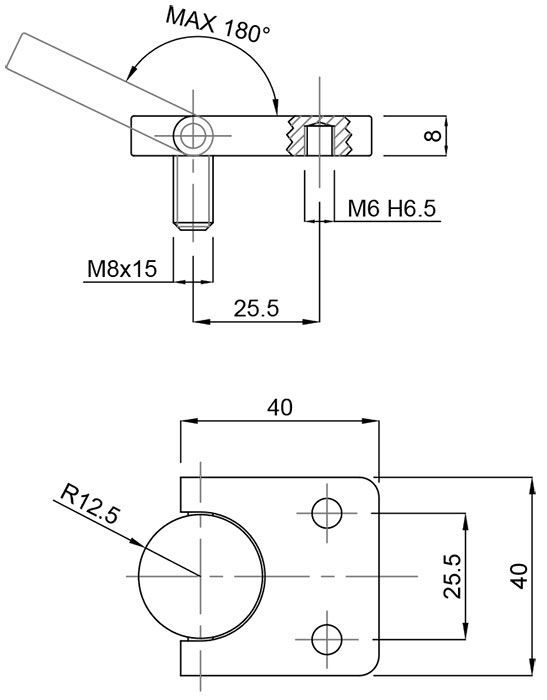

40×40
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|---|
| 60080L | Polished AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 46,25 | 107 |
| 60080S | Sandblasted AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 46,25 | 107 |

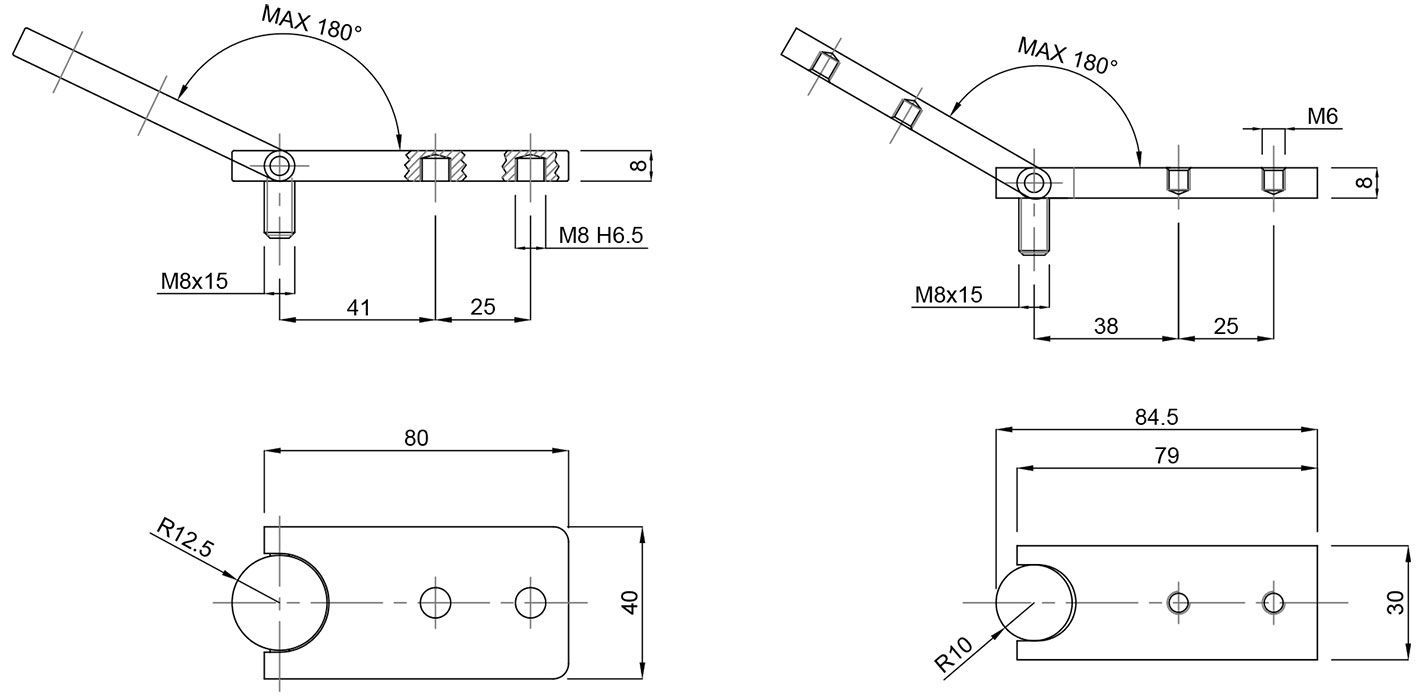

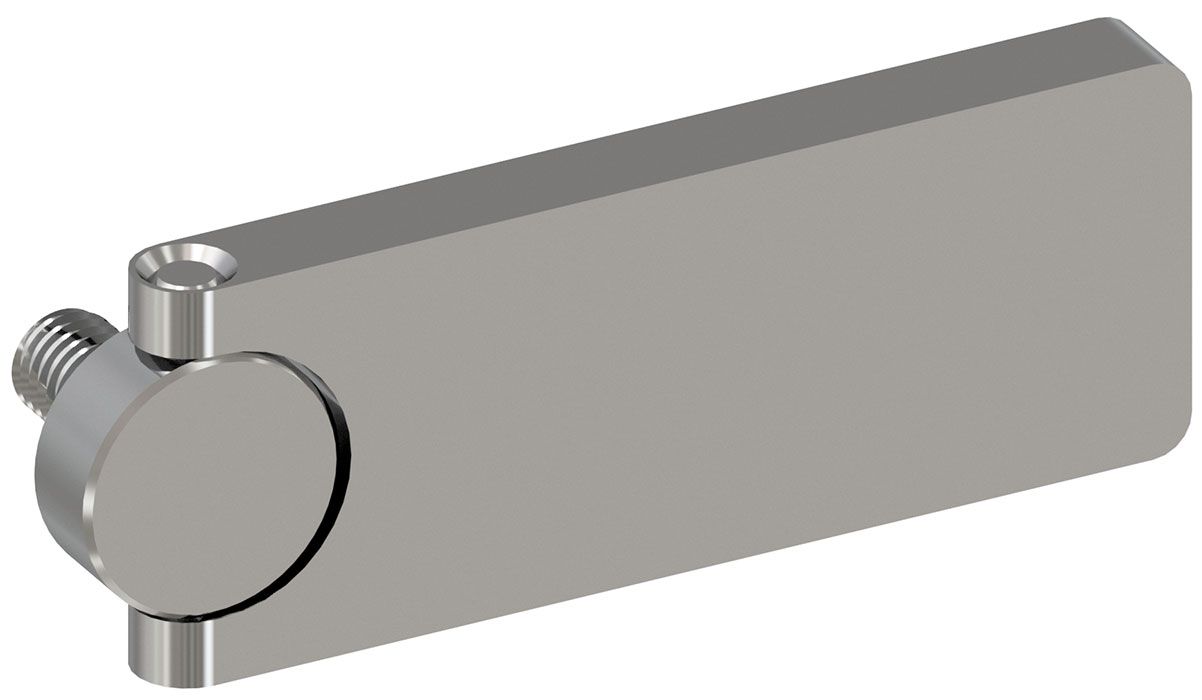

30/40×80
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|---|
| 60085L | Polished AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 84,50 | 150 |
| 60085S | Sandblasted AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 84,50 | 150 |
| 60090L | Polished AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 84,50 | 206 |
| 60090S | Sandblasted AISI 304 stainless steel hinge | M8x1,25 | 15,00 | 23 | 84,50 | 206 |

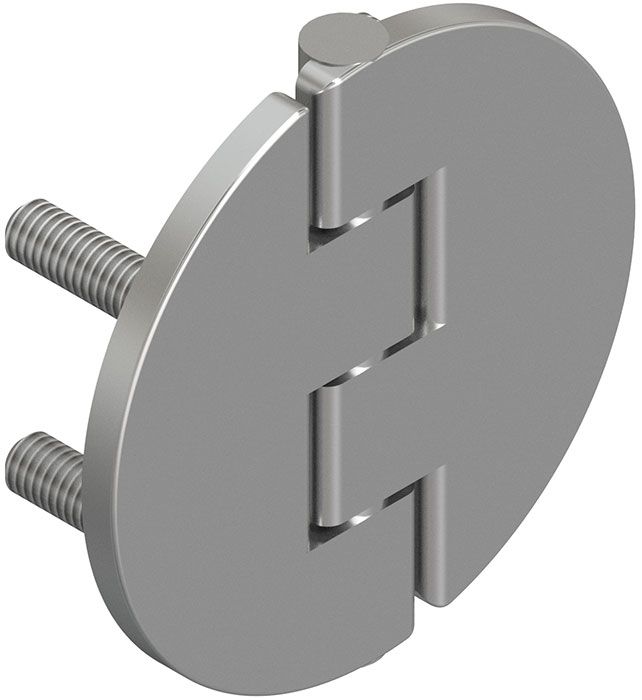

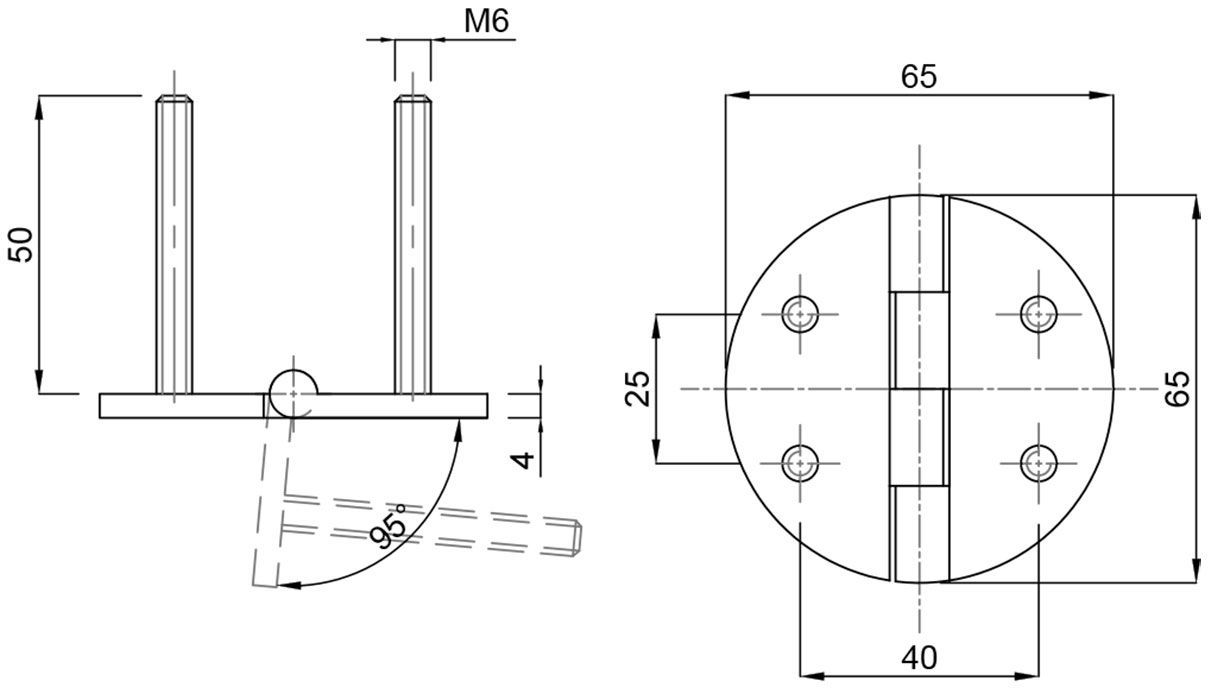

65×65 WITH PIVOTS
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|---|
| 60060L | Polished AISI 316 stainless steel hinge | 4 x M6x1 | 50,00 | 54 | 65,00 | 137 |
| 60060S | Sandblasted AISI 316 stainless steel hinge | 4 x M6x1 | 50,00 | 54 | 65,00 | 137 |

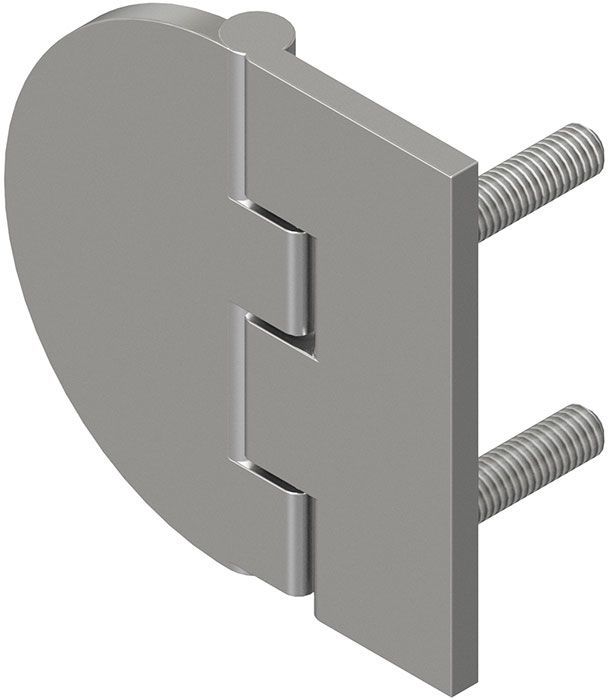

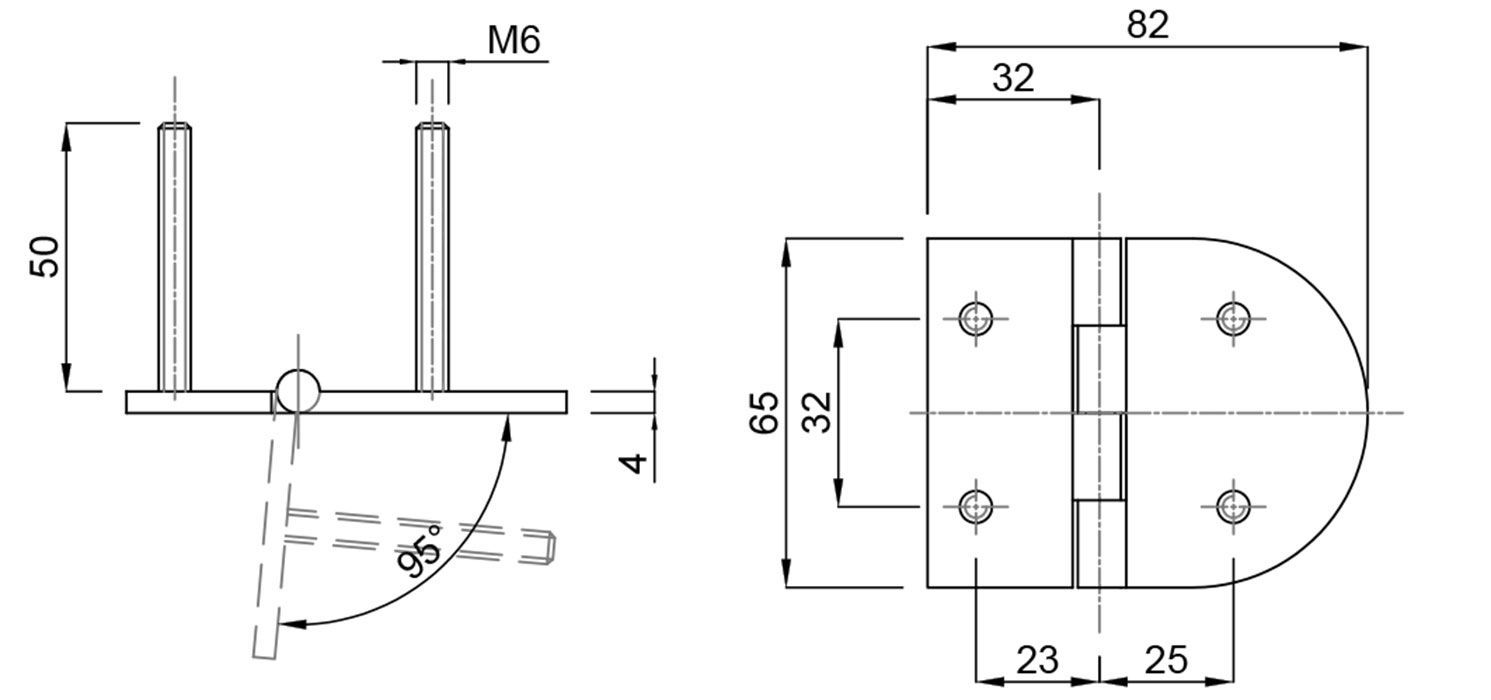

65×82 WITH PIVOTS
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|---|
| 60070L | Polished AISI 316 stainless steel hinge | 4 x M6x1 | 50,00 | 54 | 82,00 | 193 |
| 60070S | Sandblasted AISI 316 stainless steel hinge | 4 x M6x1 | 50,00 | 54 | 82,00 | 193 |

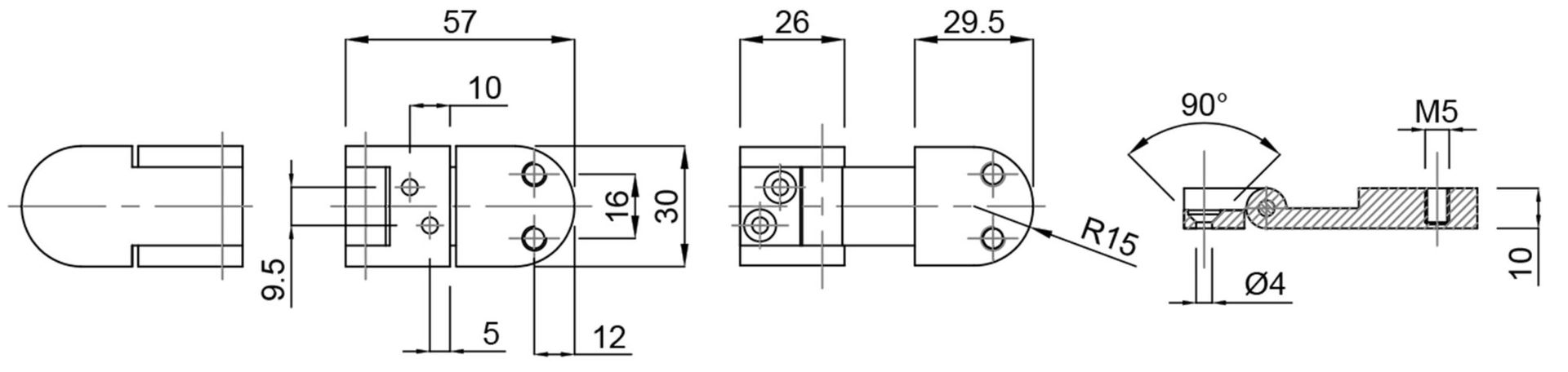

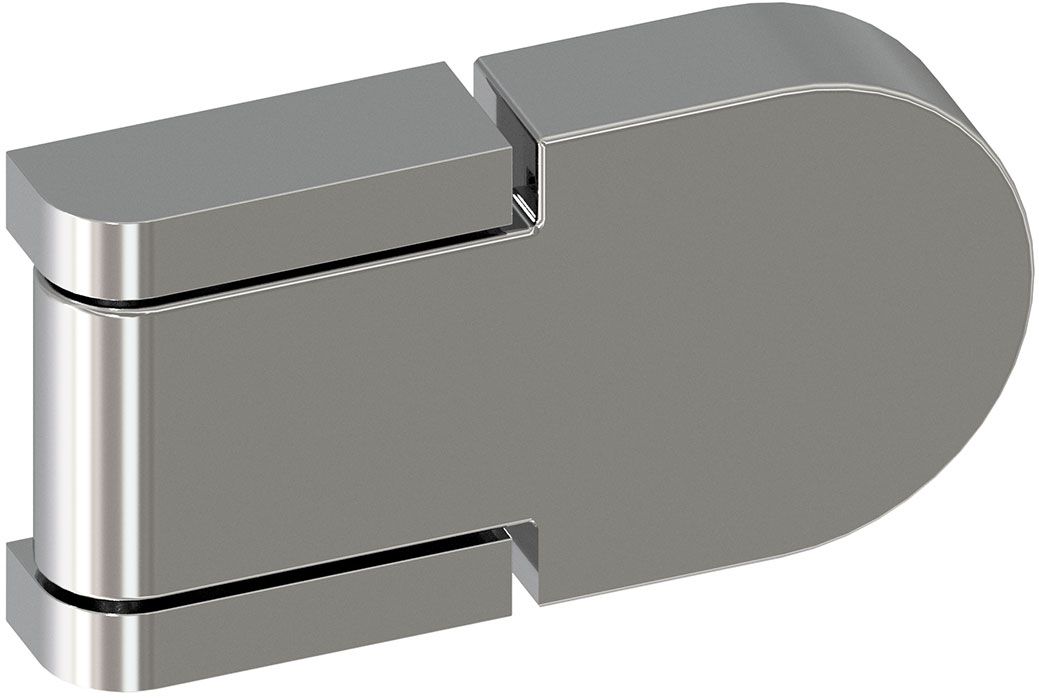

57×30
| CODE | DESCRIPTION | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|
| 60050L | Polished AISI 316 stainless steel hinge | FEMALE | 57 | 10,00 | 112 |
| 60050S | Sandblasted AISI 316 stainless steel hinge | FEMALE | 57 | 10,00 | 112 |

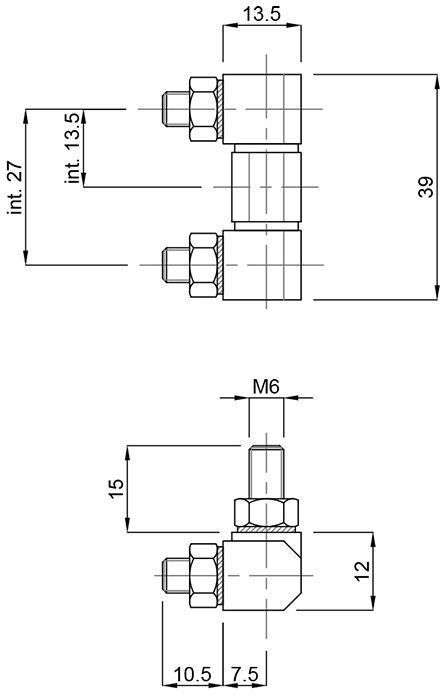

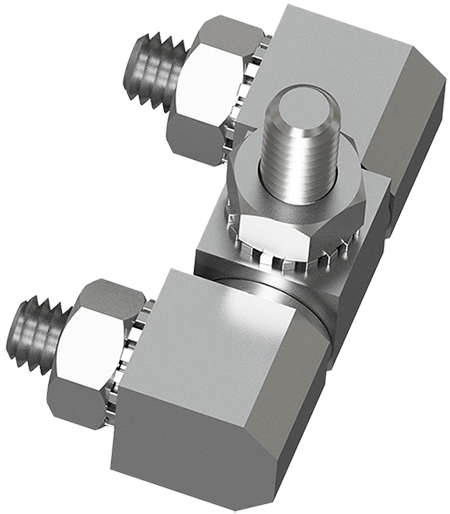

SCREW-ON HINGE 39×13,5
| CODE | DESCRIPTION | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr |
|---|---|---|---|---|---|
| 60040 | AISI 303 stainless steelscrew-on hinge, 180° | 15,00 | 24 | 39,00 | 35 |

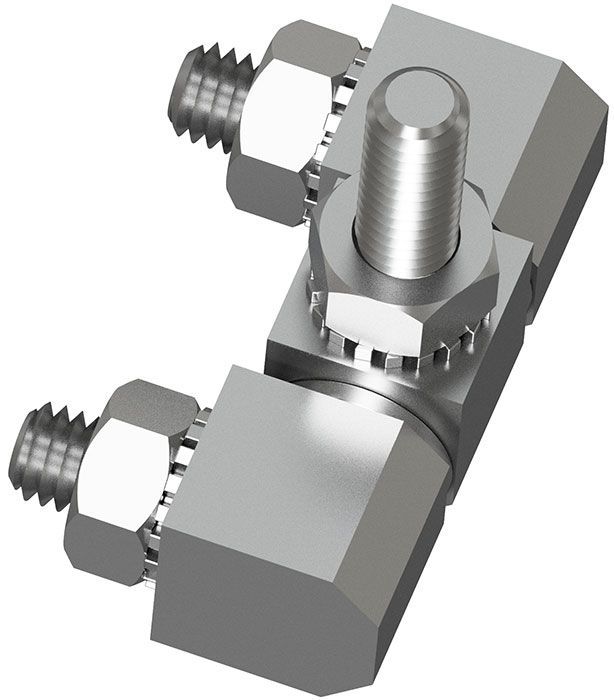

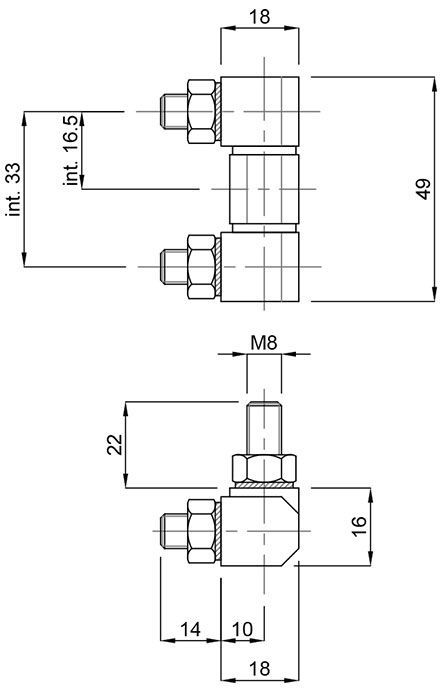

SCREW-ON HINGE 49×18
| CODE | DESCRIPTION | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|
| 60042 | AISI 303 stainless steel screw-onhinge, 180° | 22,00 | 30 | 49,00 |

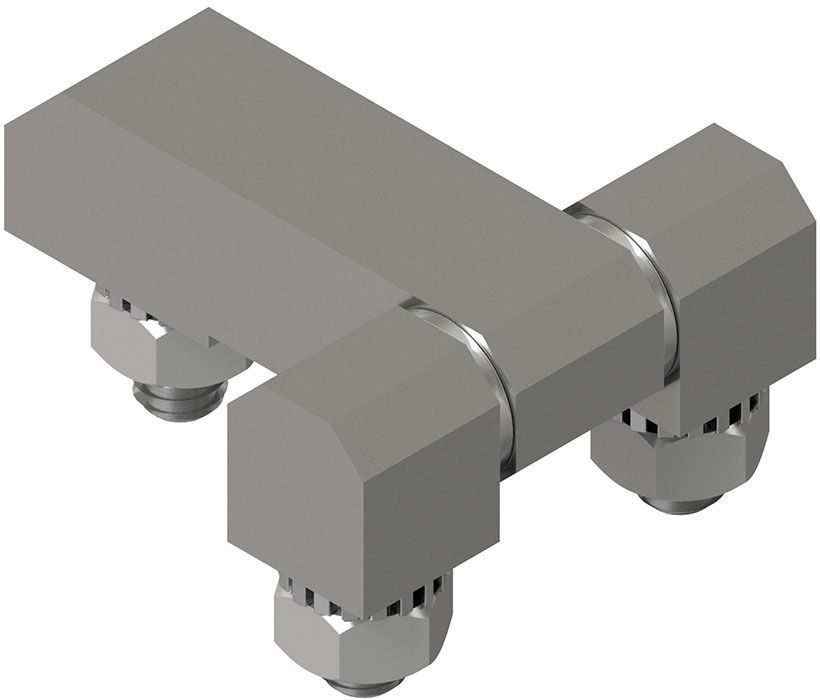

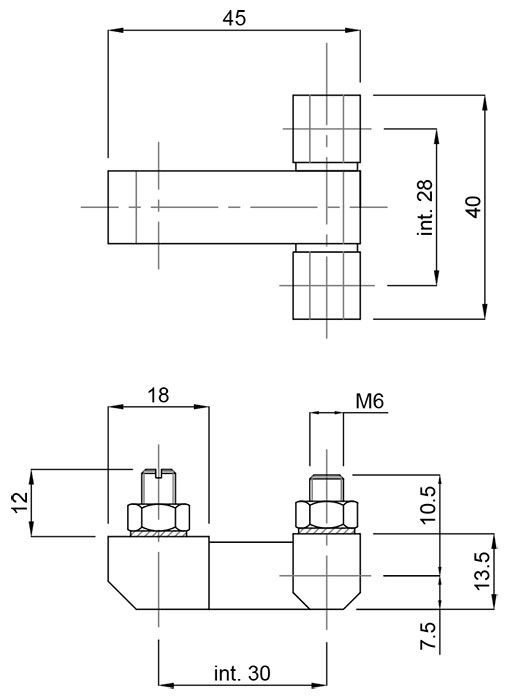

SCREW-ON HINGE 40×45
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 60044 | AISI 304 stainless steelscrew-on hinge, 180° | M6x1 | 12,00 | 24 | 40,00 |

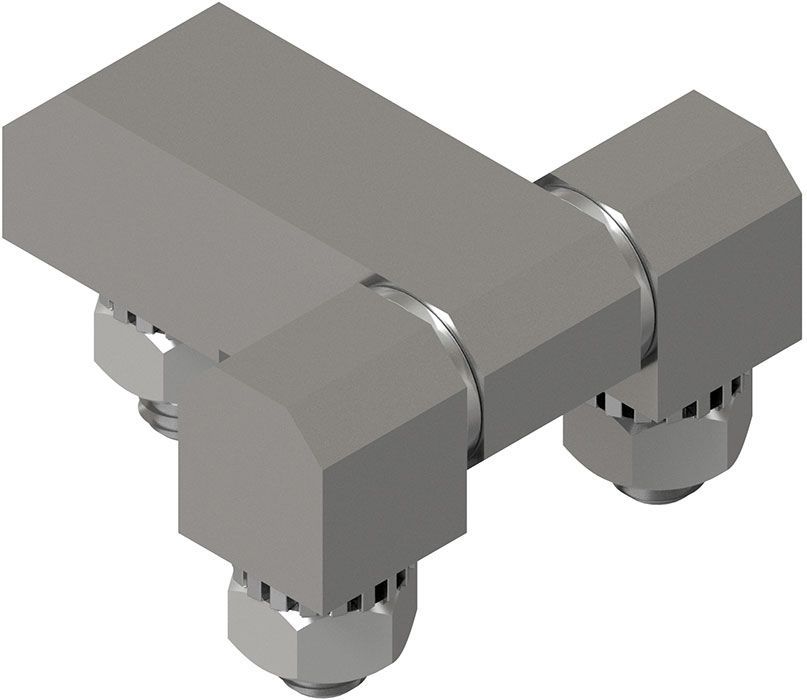

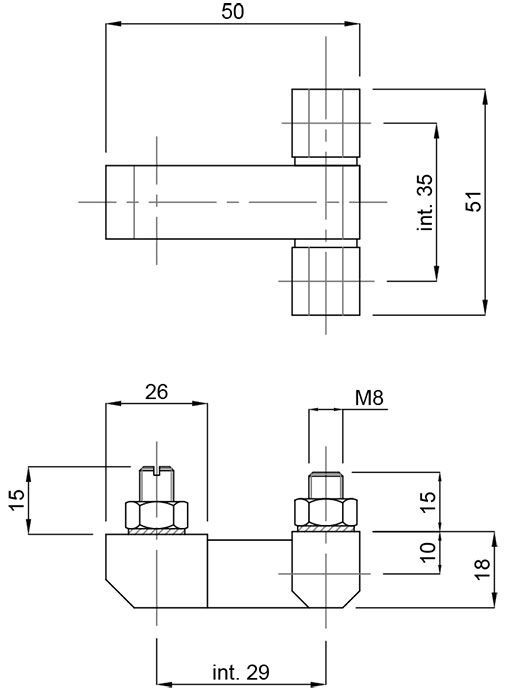

SCREW-ON HINGE 51×50
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 60046 | AISI 304 stainless steelscrew-on hinge, 180° | M8x1,25 | 15,00 | 33 | 51,00 |
