Hinges
INOX ACCESSORIES
• Material: • stainless steel
Finishing: polished – sandblasted – black painted – chrome-plated

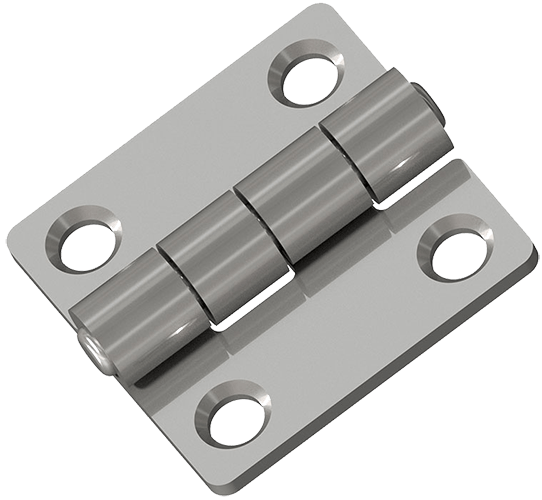

STAINLESS HINGES

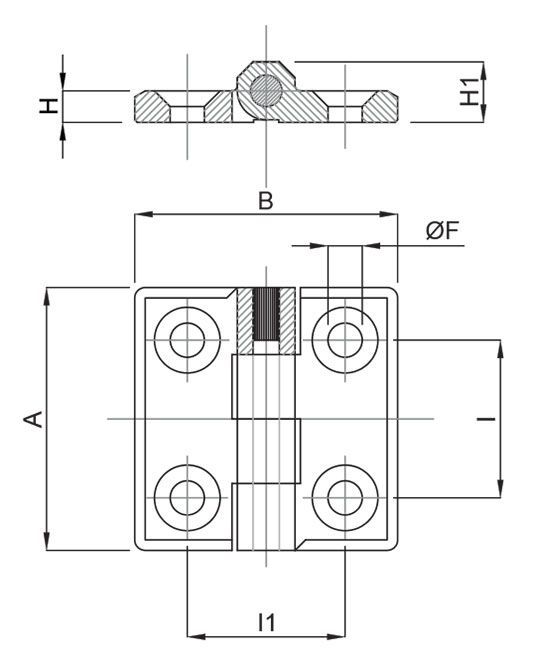

| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr | NICHE | TREATMENT |
|---|---|---|---|---|---|---|
| 60020 | Polished AISI 304 stainless steel square hinge with 4 holes, 270¡ | 38 | 9,50 | 35 | 4 x Ø5,5mm holes | POLISHED |

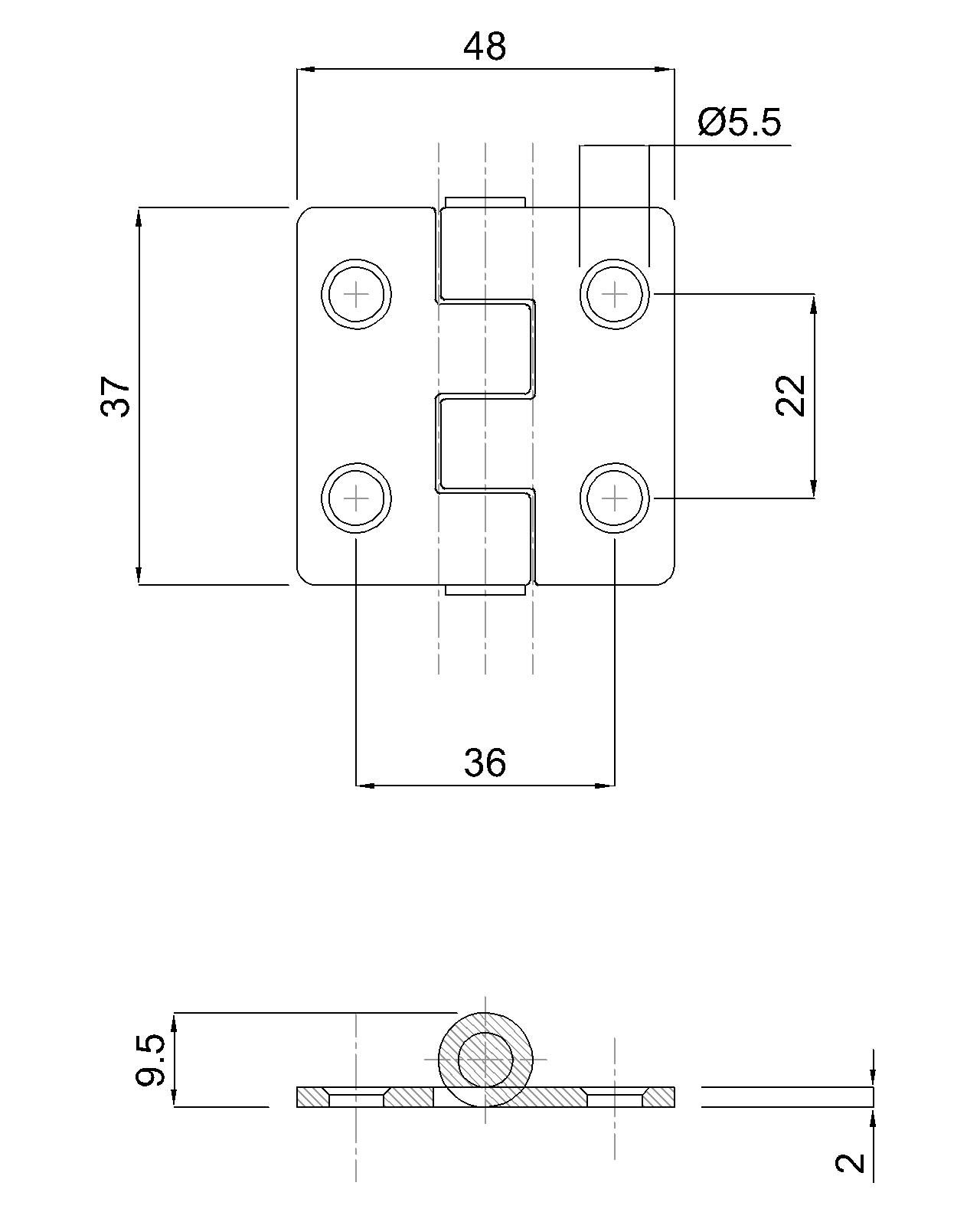

| 60030 | Sandblasted AISI 304 stainless steel square hinge with 4 holes, 270¡ | 37 | 9,50 | 38 | 4 x Ø5,5mm holes | POLISHED |

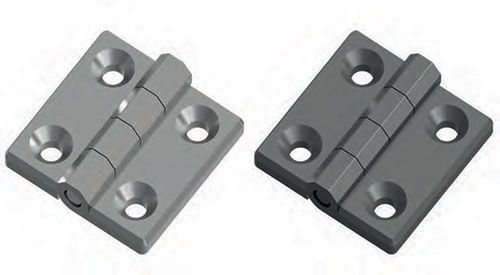

POLISHED AND SANDBLASTED HINGES
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr | NICHE | TREATMENT |
|---|---|---|---|---|---|---|
| 60000/2L | Polished AISI 304 stainless steel square hinge with 4 holes, 270¡ | 39 | 9,00 | 53 | 4 x Ø5,5mm holes | POLISHED |
| 60000/2S | Sandblasted AISI 304 stainless steel square hinge with 4 holes, 270¡ | 39 | 9,00 | 53 | 4 x Ø5,5mm holes | SANDBLASTED |
| 60010/1L | Polished AISI 304 stainless steel square hinge with 4 holes, 270¡ | 50 | 12,00 | 77 | 4 x Ø6,5mm holes | POLISHED |
| 60010/1S | Sandblasted AISI 304 stainless steel square hinge with 4 holes, 270¡ | 50 | 12,00 | 77 | 4 x Ø6,5mm holes | SANDBLASTED |
| 60015/1L | Polished AISI 316 stainless steel square hinge with 4 holes, 270¡ | 60 | 15,00 | 185 | 4 x Ø8,5mm holes | POLISHED |
| 60015/1S | Brushed AISI 316 stainless steel square hinge with 4 holes, 270¡ | 60 | 15,00 | 185 | 4 x Ø8,5mm holes | SANDBLASTED |

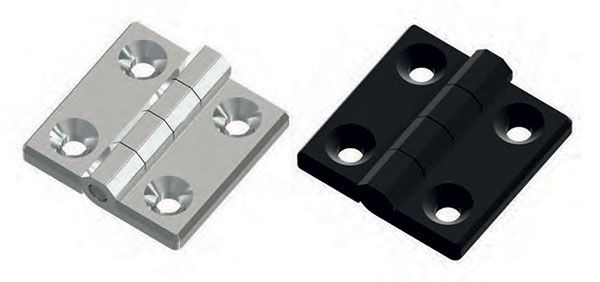

PAINTED AND CHROME HINGES
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT | WEIGHT gr | NICHE | TREATMENT |
|---|---|---|---|---|---|---|
| 60000/2V | Painted steel square hinge with 4 holes, 270° | 40 | 9,00 | 53 | 4 x Ø5,5mm holes | PAINTING |
| 60000/2C | Chromed steel square hinge with 4 holes, 270° | 40 | 9,00 | 53 | 4 x Ø5,5mm holes | CHROMIUM PLATING |
| 60010/1V | Painted steel square hinge with 4 holes, 270° | 50 | 12,00 | 77 | 4 x Ø6,5mm holes | PAINTING |
| 60010/1C | Chromed steel square hinge with 4 holes, 270° | 50 | 12,00 | 77 | 4 x Ø6,5mm holes | CHROMIUM PLATING |
| 60015/1V | Painted steel square hinge with 4 holes, 270° | 60 | 15,00 | 185 | 4 x Ø8,5mm holes | PAINTING |
| 60015/1C | Chromed steel square hinge with 4 holes, 270° | 60 | 15,00 | 185 | 4 x Ø8,5mm holes | CHROMIUM PLATING |
