Handles
INOX ACCESSORIES
• Material: stainless steel 1.4301 Polished surface; sandblasted on request.
Applications: pharmaceutical, chemical, drink and packaging industry.

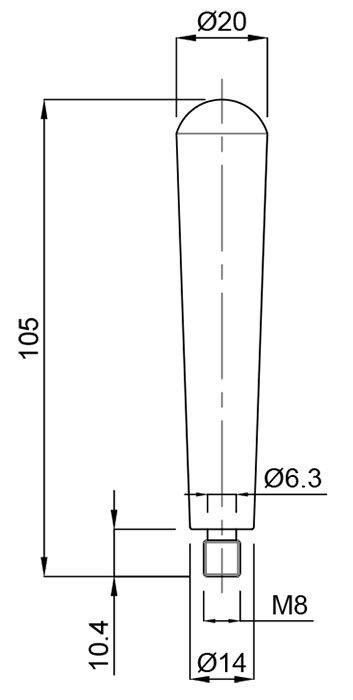

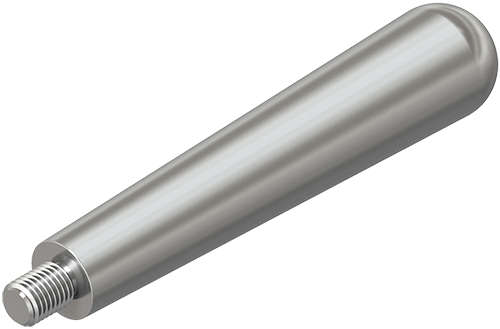

MODULAR HANDLE
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 40020L | Polished AISI 304 stainless steel handle with threaded male screw for fixing it to the machine | M8x1,25 | 10,00 | 20 | 105,00 |
| 40020S | Sandblasted AISI 304 stainless steel handle with threaded male screw for fixing it to the machine | M8x1,25 | 10,00 | 20 | 105,00 |

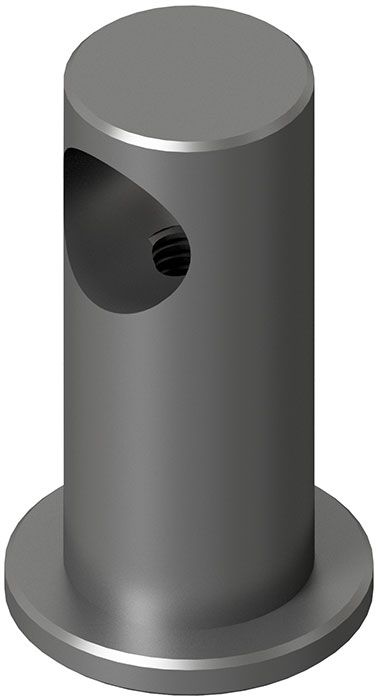

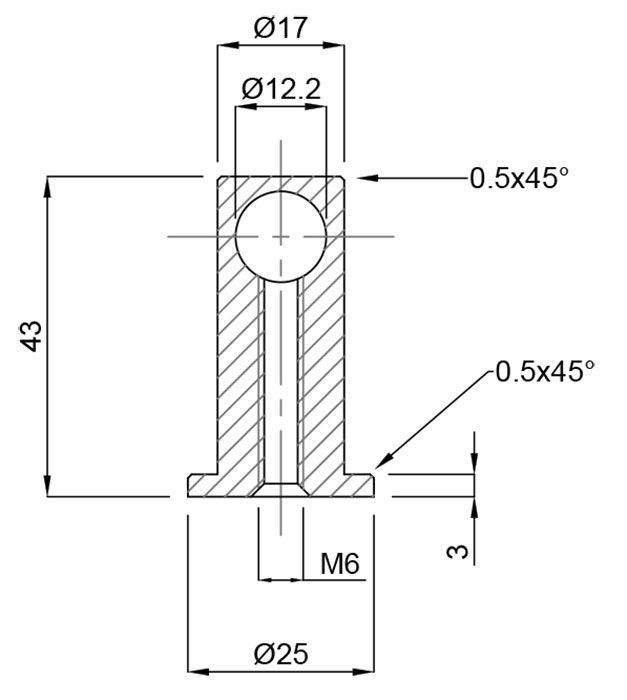

MODULAR HANDLE – SUPPORT
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 40030 | Modular Polished AISI 304 stainless steel support for handles with through hole and a threaded female hole for fixing it to the machine. It allows to compose a handle of the desired length by using a d.12 bar | M6x1 | 25,00 | 25 | 43,00 |

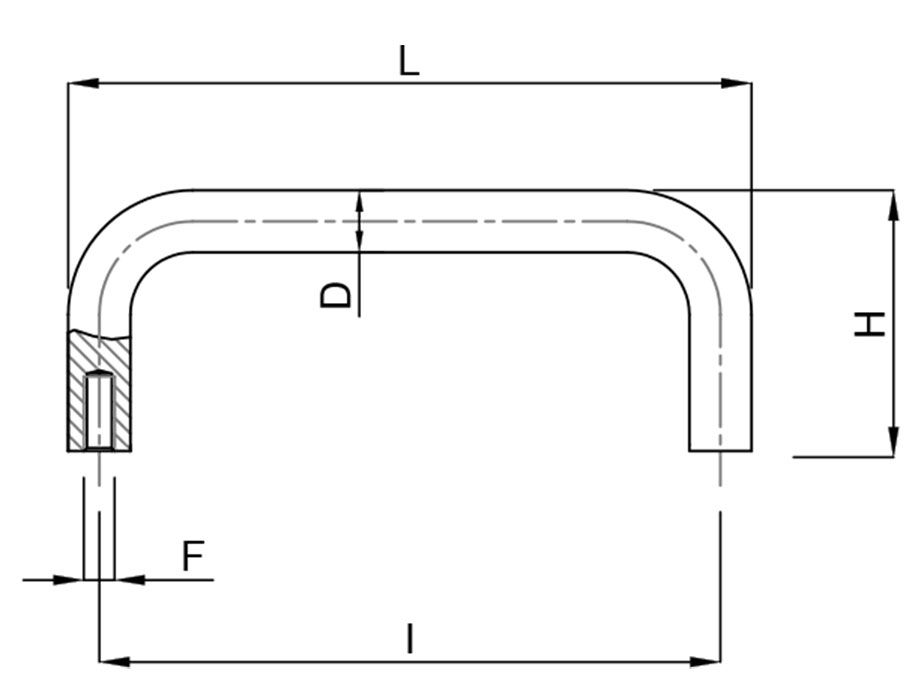

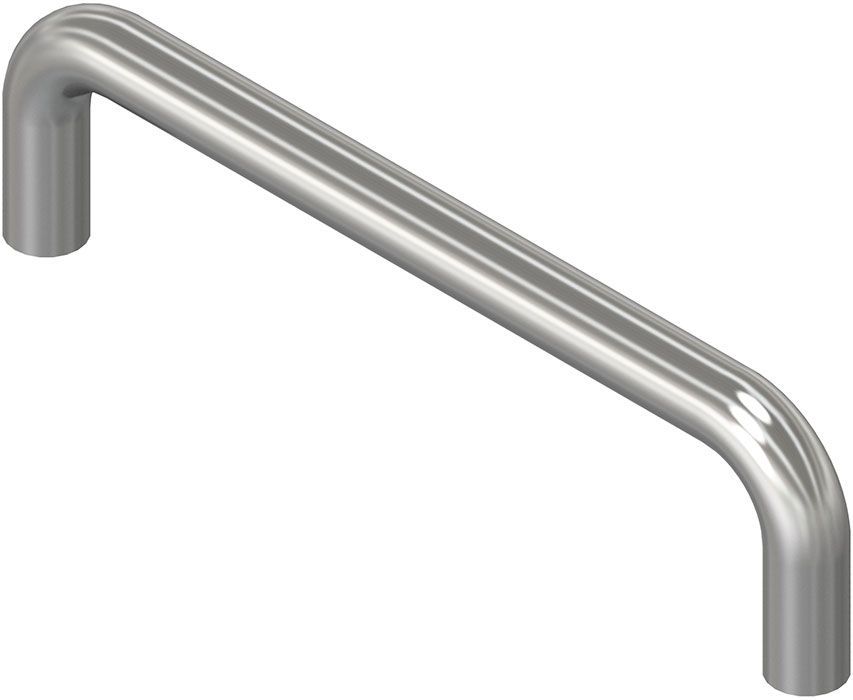

HANDLE WITH THREADED HOLES
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 40000 | Polished AISI 304 stainless steel handle with threaded holes | M5x0,8 | FEMALE | 195 | 40,00 |
| 40002 | Polished AISI 304 stainless steel handle with threaded holes | M4x0,7 | FEMALE | 104 | 28,00 |

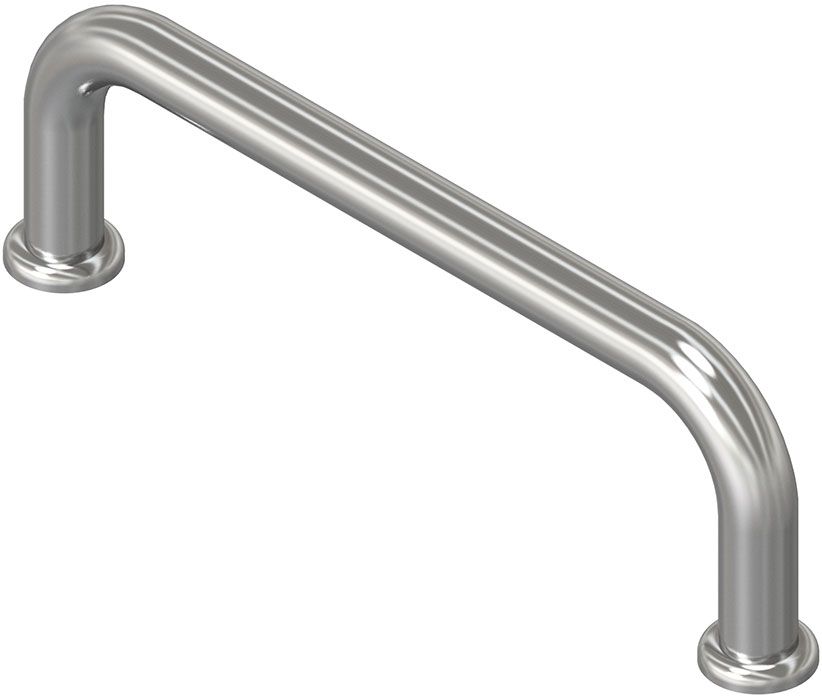

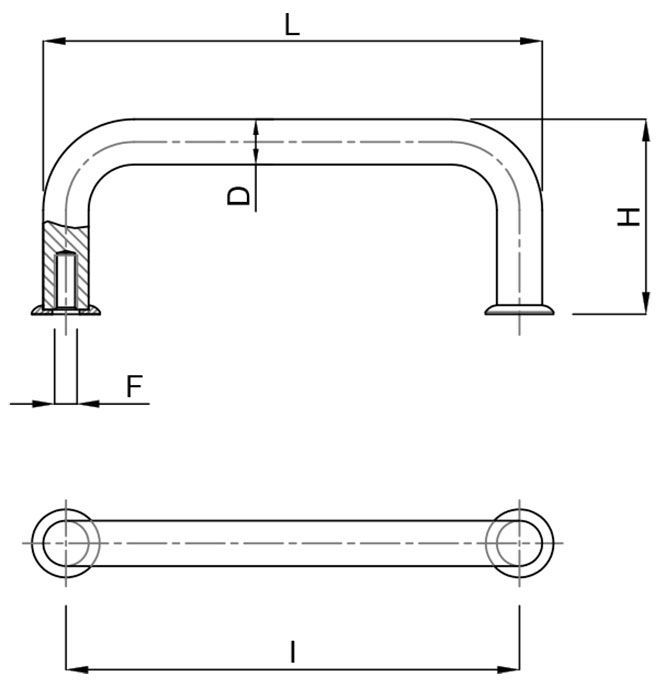

HANDLE WITH THREADED HOLES AND SUPPORTING WASHERS
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| 40003L | Polished AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 98 | 43,00 |
| 40003S | Sandblasted AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 98 | 43,00 |
| 40004L | Polished AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 110 | 43,00 |
| 40004S | Sandblasted AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 110 | 43,00 |
| 40005L | Polished AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 130 | 43,00 |
| 40005S | Sandblasted AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 130 | 43,00 |
| 40006L | Polished AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 190 | 43,00 |
| 40006S | Sandblasted AISI 304 stainless steel handle with threaded holes and supporting washers | M5x0,8 | FEMALE | 190 | 43,00 |

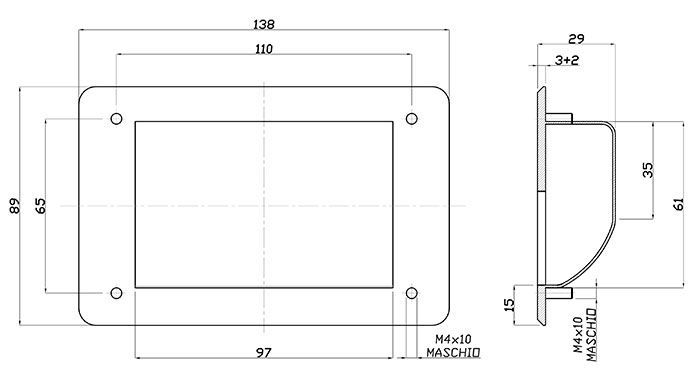

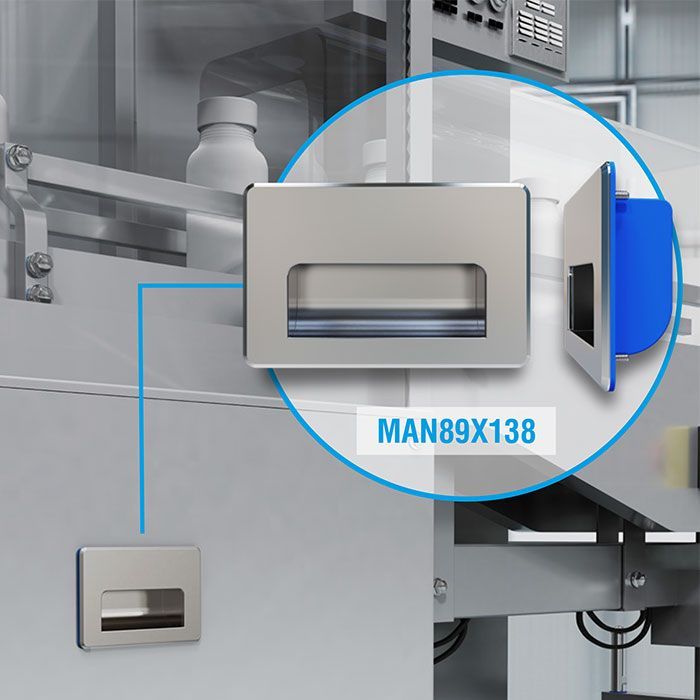

RECESSED HANDLE WITH BLUE SILICONE GASKET
| CODE | DESCRIPTION | SIZE (F) | STEM LENGTH (B) | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|---|---|
| MAN89x138 | High-gloss polished stainless steel recessed handle with blue silicone gasket | M4x0,7 | 138 | 89,00 |
