Closing System
INOX ACCESSORIES
• Material: stainless steel 1.4301

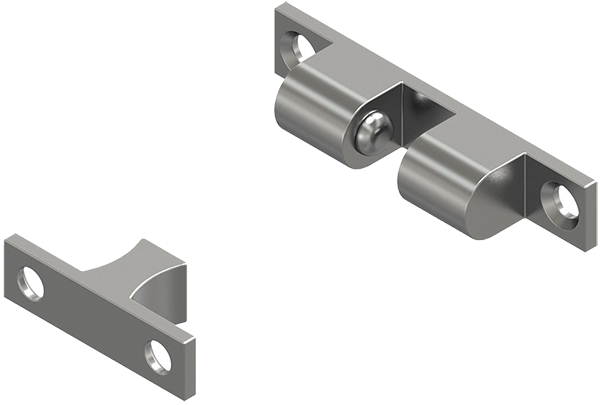

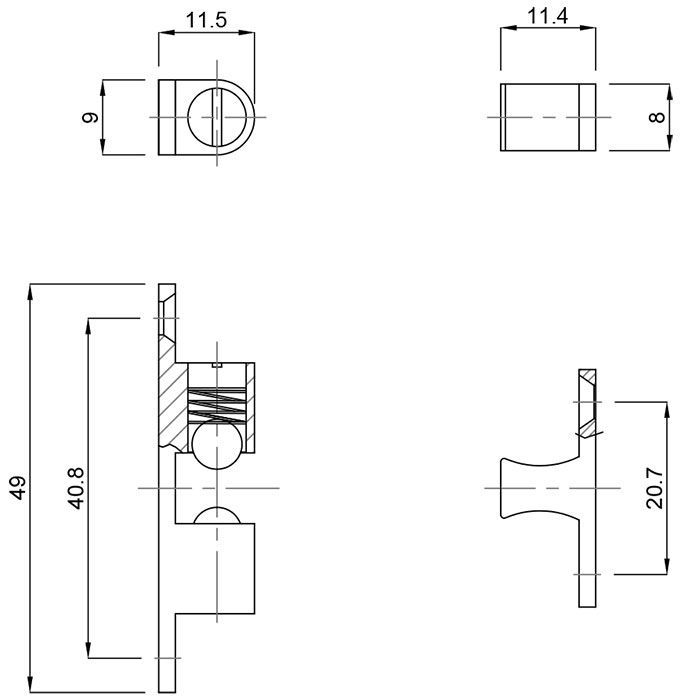

LATCH WITH BALLS
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|
| 70025 | Nickel-brass door-stop with stainless steel balls | 11,5 | 49,00 |

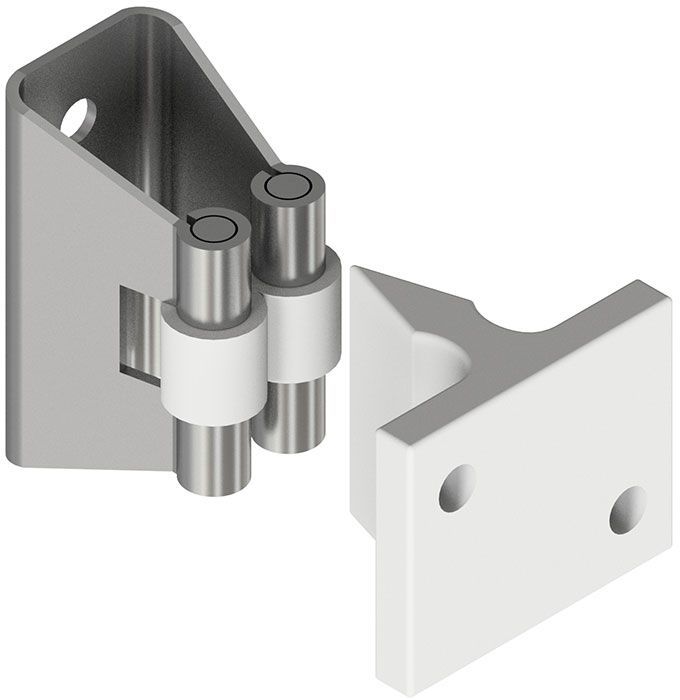

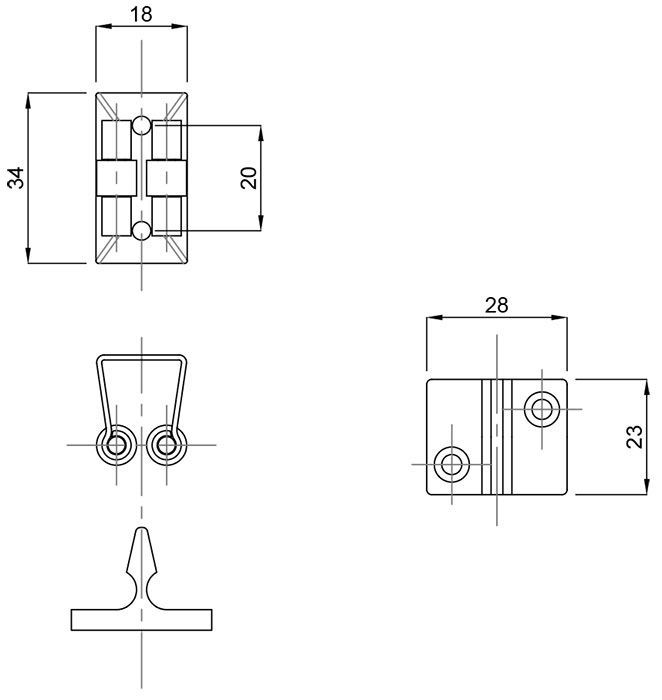

STAINLESS STEEL/POLYAMIDE LATCH
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|
| 70010 | AISI 304 stainless steel door-stop with white nylon wedge | 18x34 |

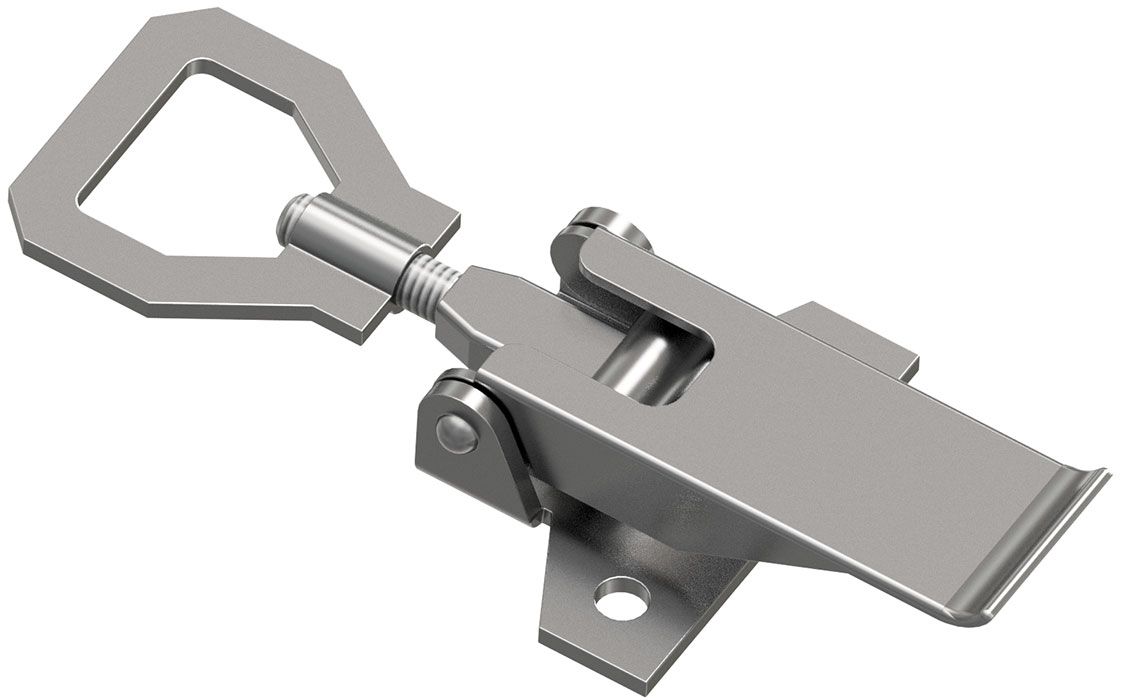

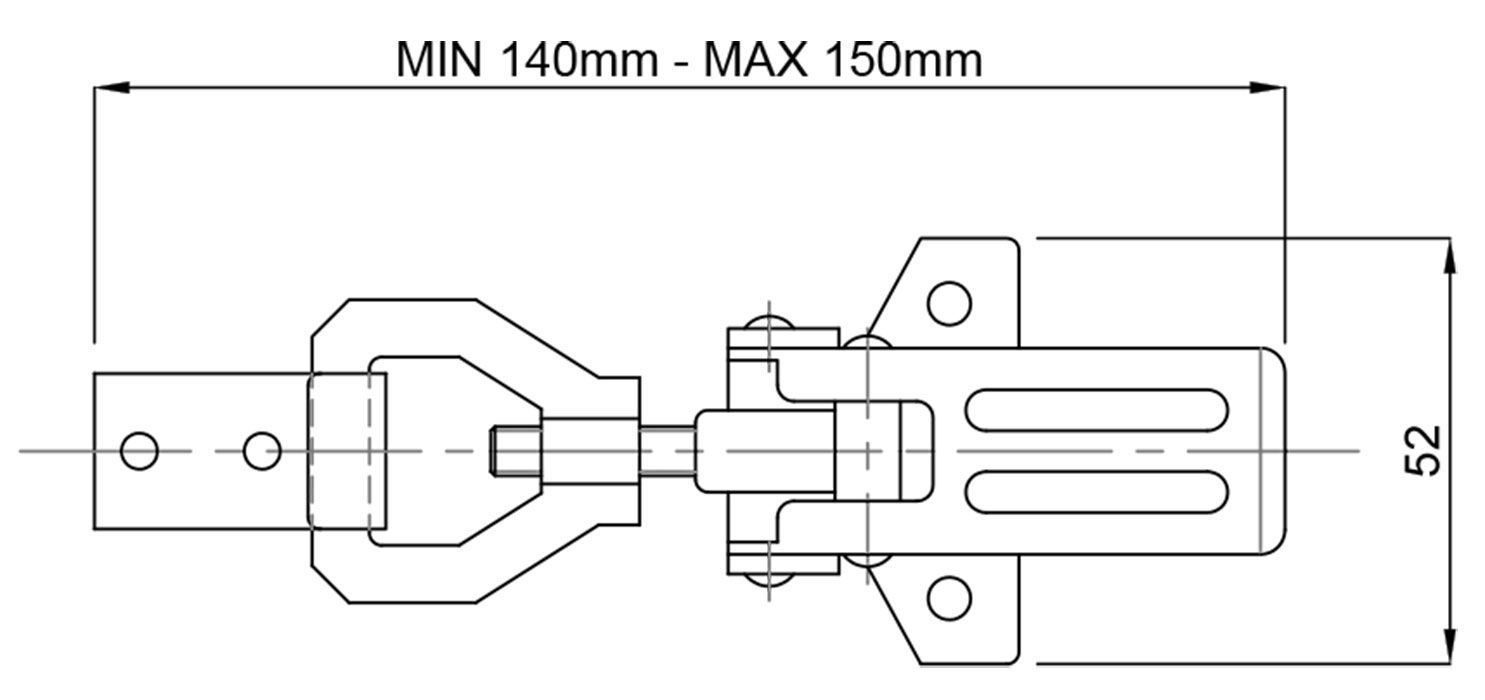

ADJUSTABLE MIN 140 MAX 150
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|
| 70040 | AISI 304 stainless steel hinge with regulating hook | 52 | 140/150 |

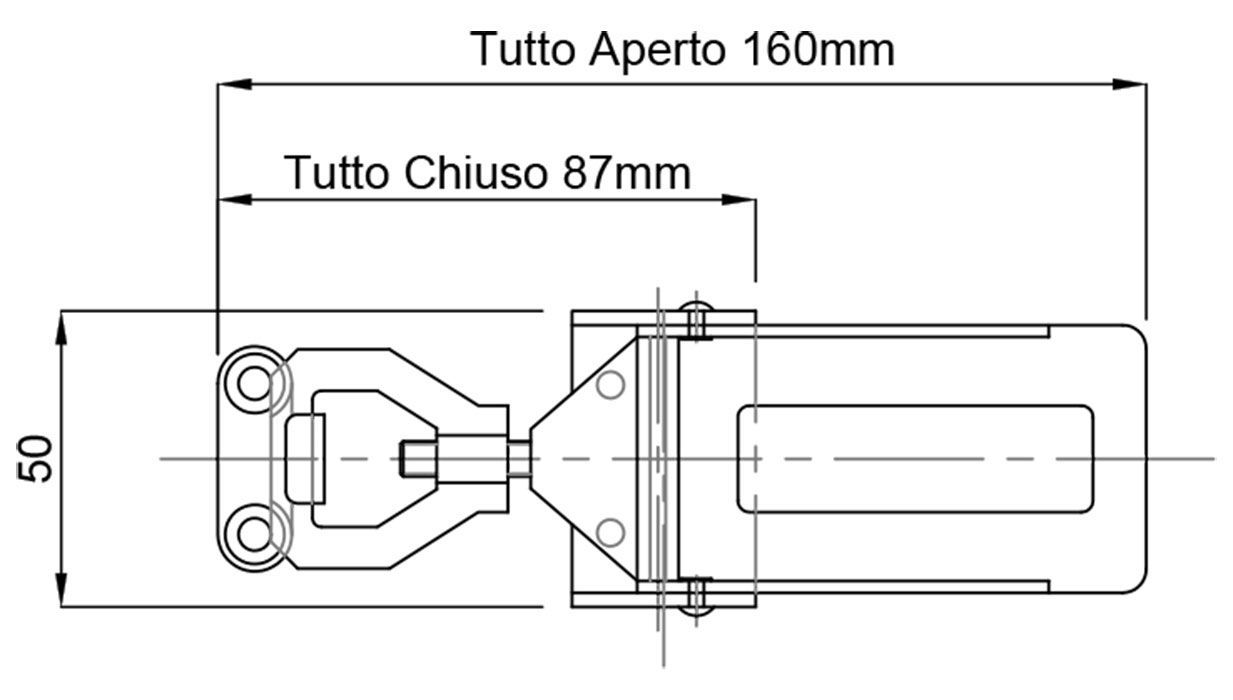

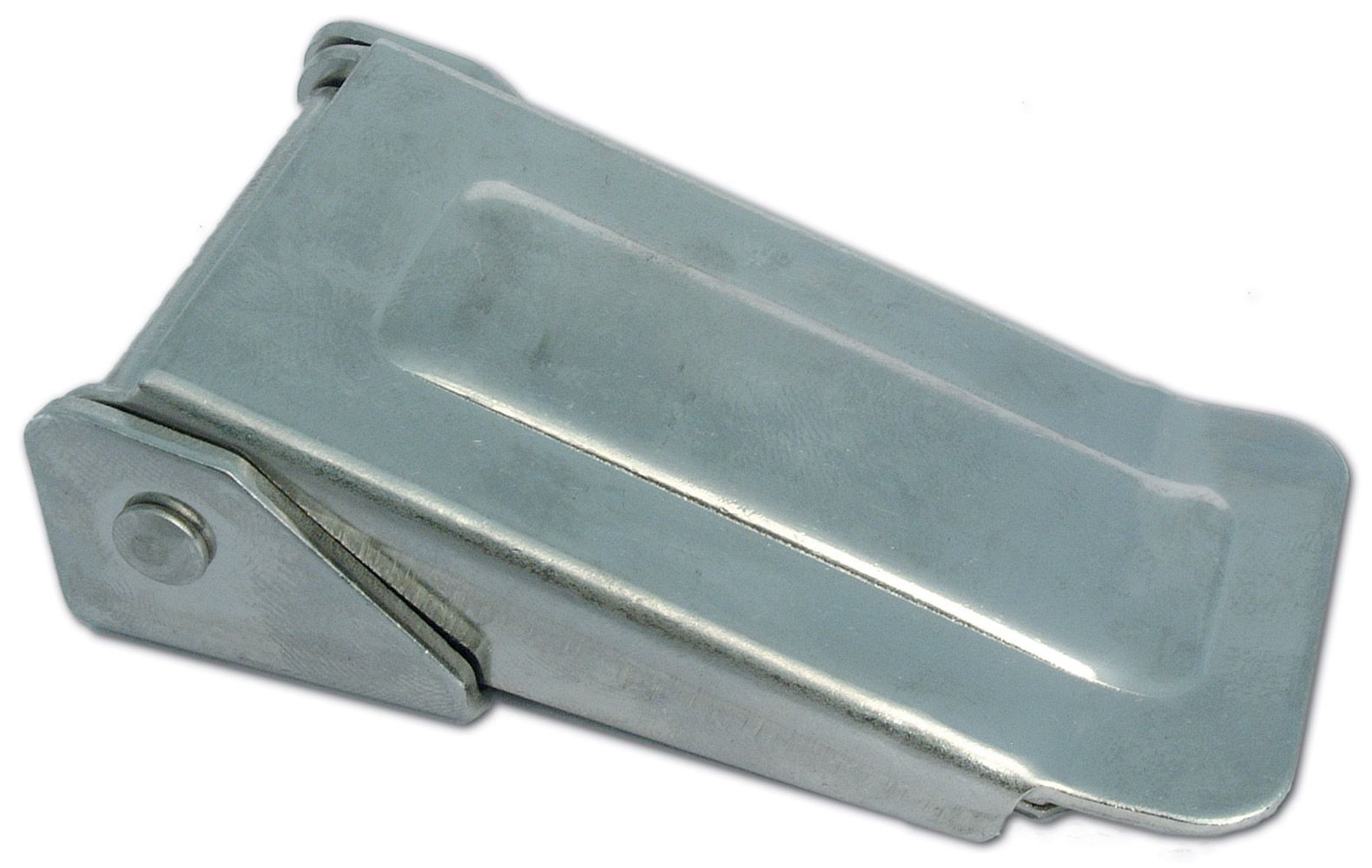

ADJUSTABLE WITH COVER
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|
| 70050 | AISI 304 stainless steel hinge with hidden regulating hook | 50 | 87/160 |

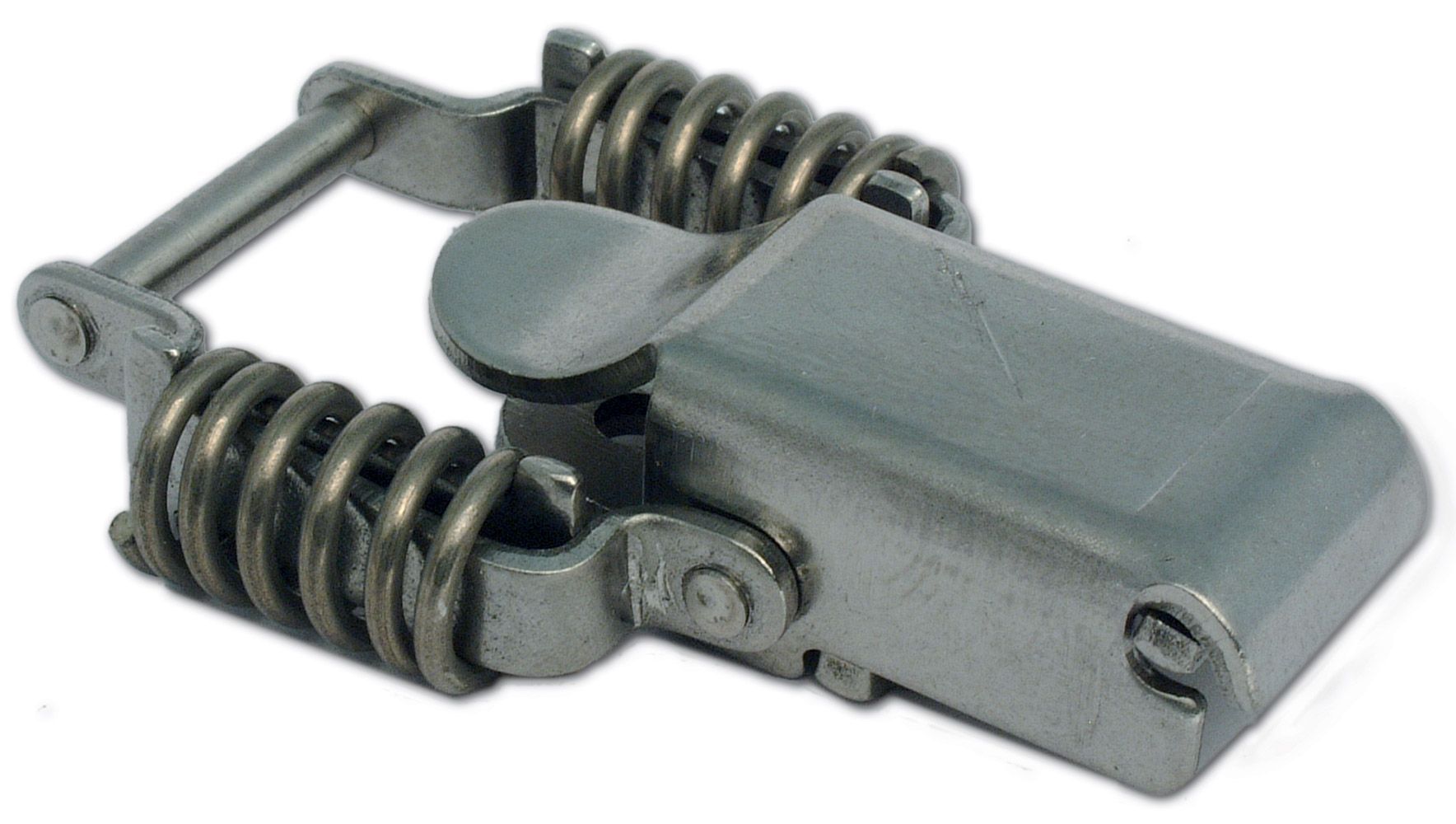

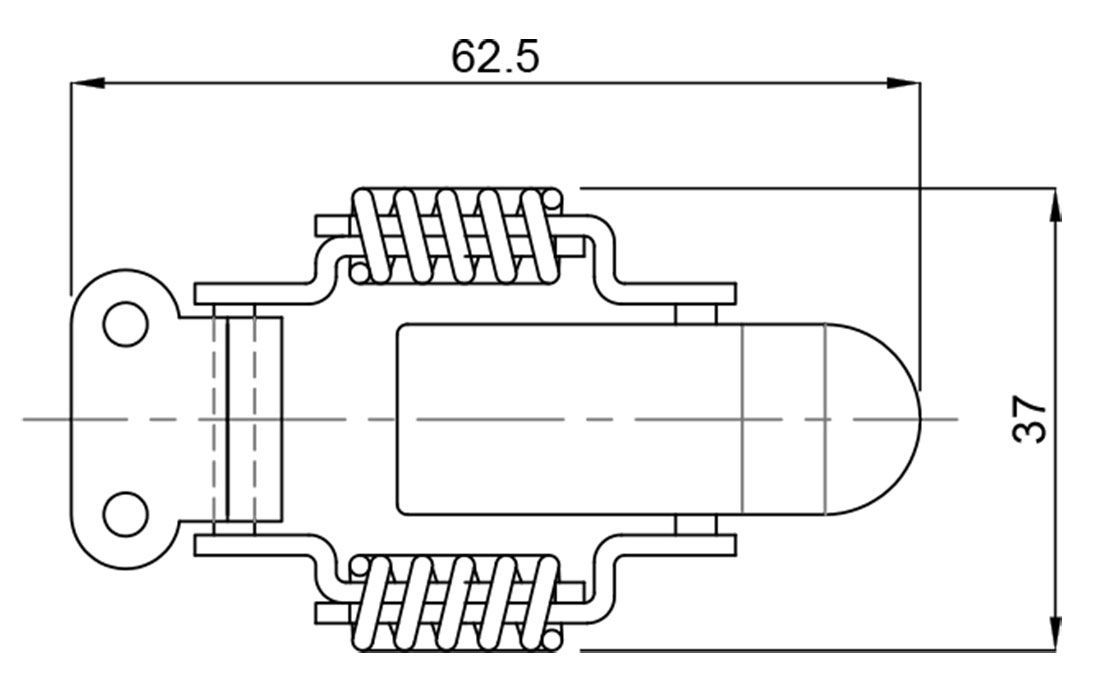

ADJUSTABLE WITH SPRINGS
| CODE | DESCRIPTION | BASE SIZE (D) | TOTAL HEIGHT |
|---|---|---|---|
| 70030 | AISI 304 stainless steel spring hinge | 37 | 62,50 |
