1/4 Turn Spring Latch Closing System

INOX ACCESSORIES

A bunch of metal parts are sitting on top of each other on a white background.

• Stainless steel closing system 1/4 turn with balancing spring. The closing thickness goes from a min. 24 mm to max 40 mm


Material: body 1.4301 | Threaded pivot M10 1.4301 | Inside spring AISI 301 | Nuts 1.4301 | Closing tongue 1.4301

1/4 TURN SPRING LATCH, ADJUSTABLE D30

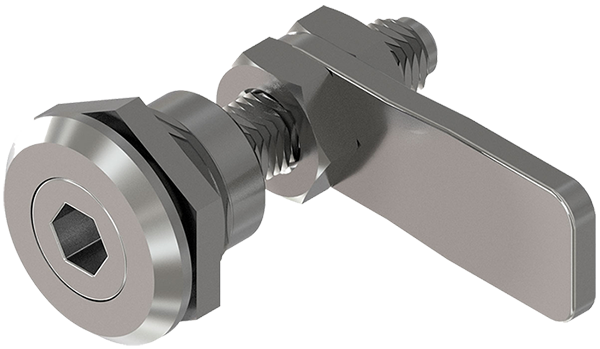

A close up of a stainless steel lock on a white background.

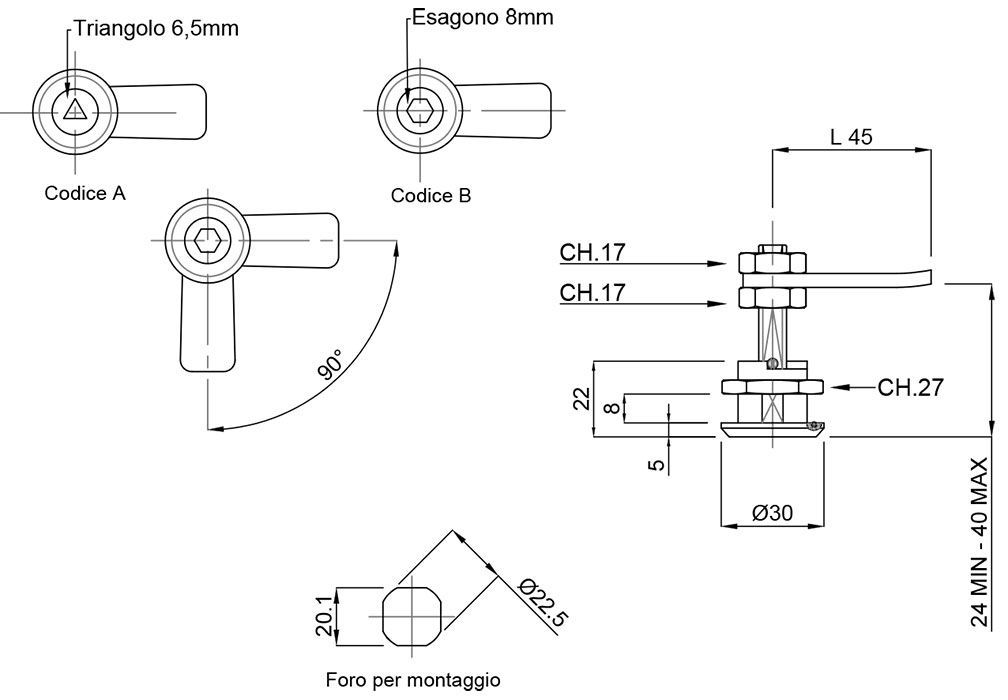

A black and white drawing of a metal object with measurements.
CODE STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr
70000/A 24/40 30 24/40 TRIANGLE 6,5 122
70000/B 24/40 30 24/40 HEX 8 122
PDF

1/4 TURN SPRING LATCH D24

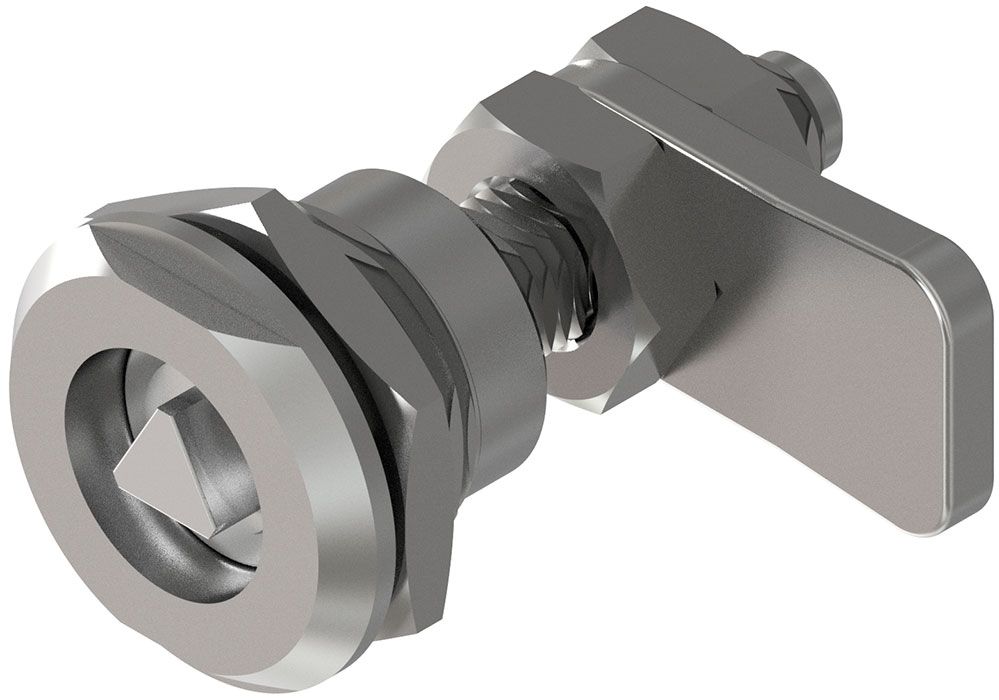

A close up of a stainless steel lock on a white background.

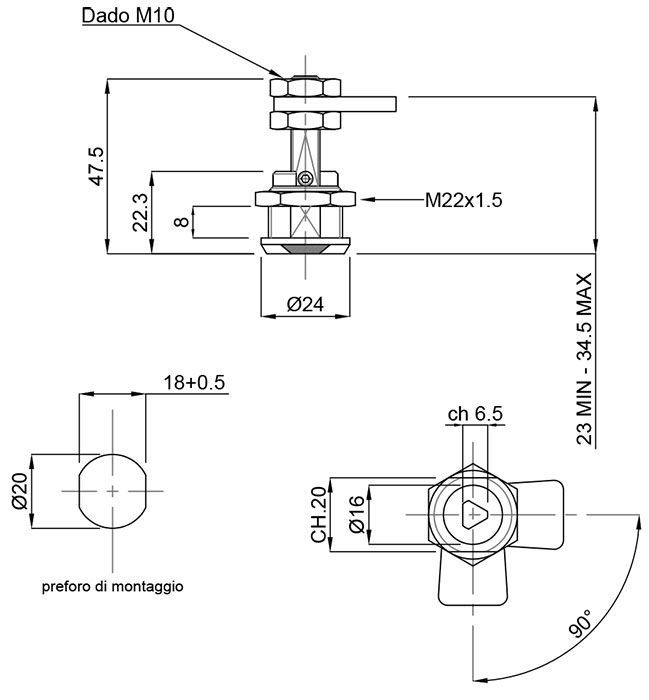

A black and white drawing of a lock with measurements.
CODE STEM LENGTH (B) BASE SIZE (D) TOTAL HEIGHT REGULATION (SW) WEIGHT gr
70060 23/34,5 24 23/34,5 TRIANGLE 6,5 68
PDF
